HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112046

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 95, Rotation: CW, Radius: 86.00

Description

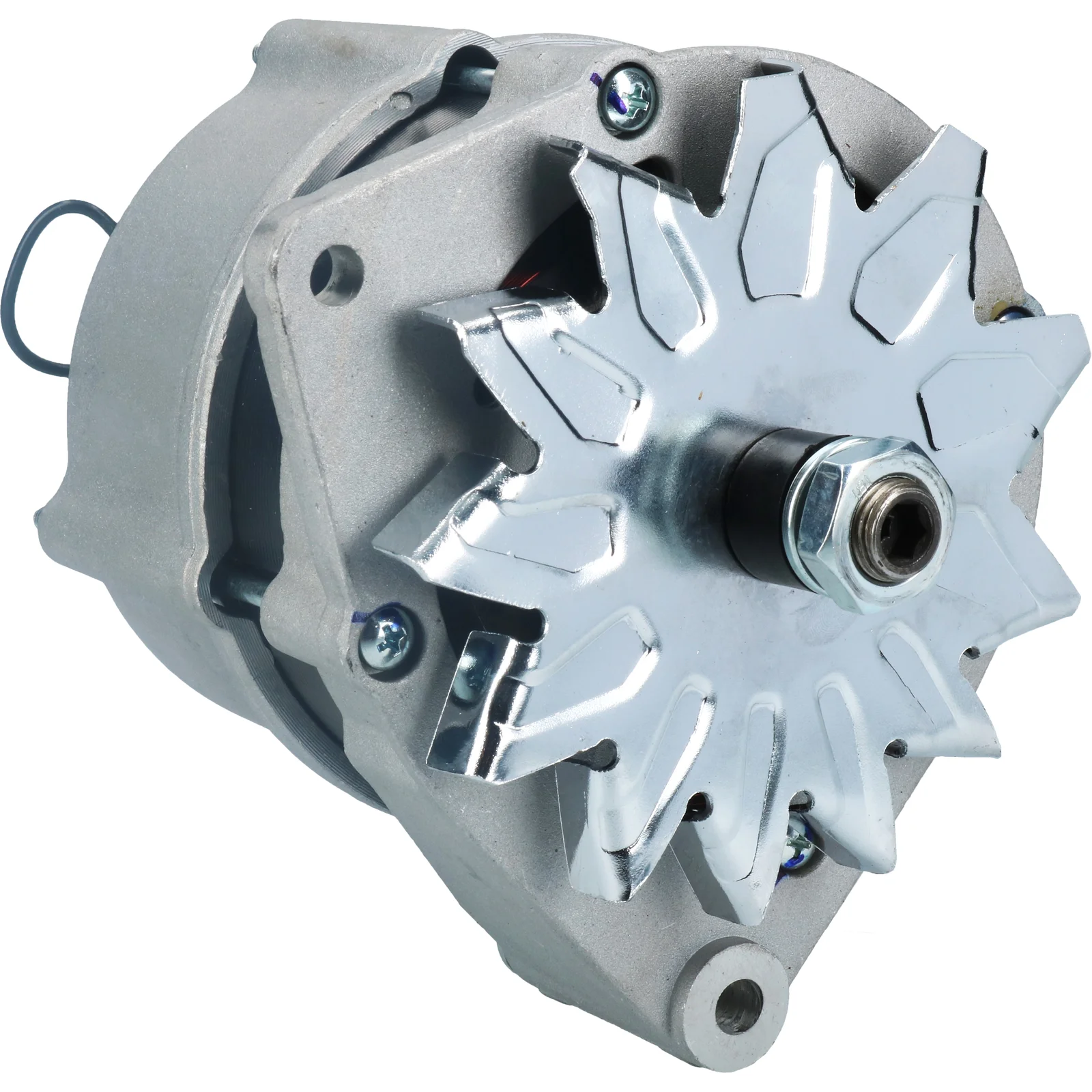

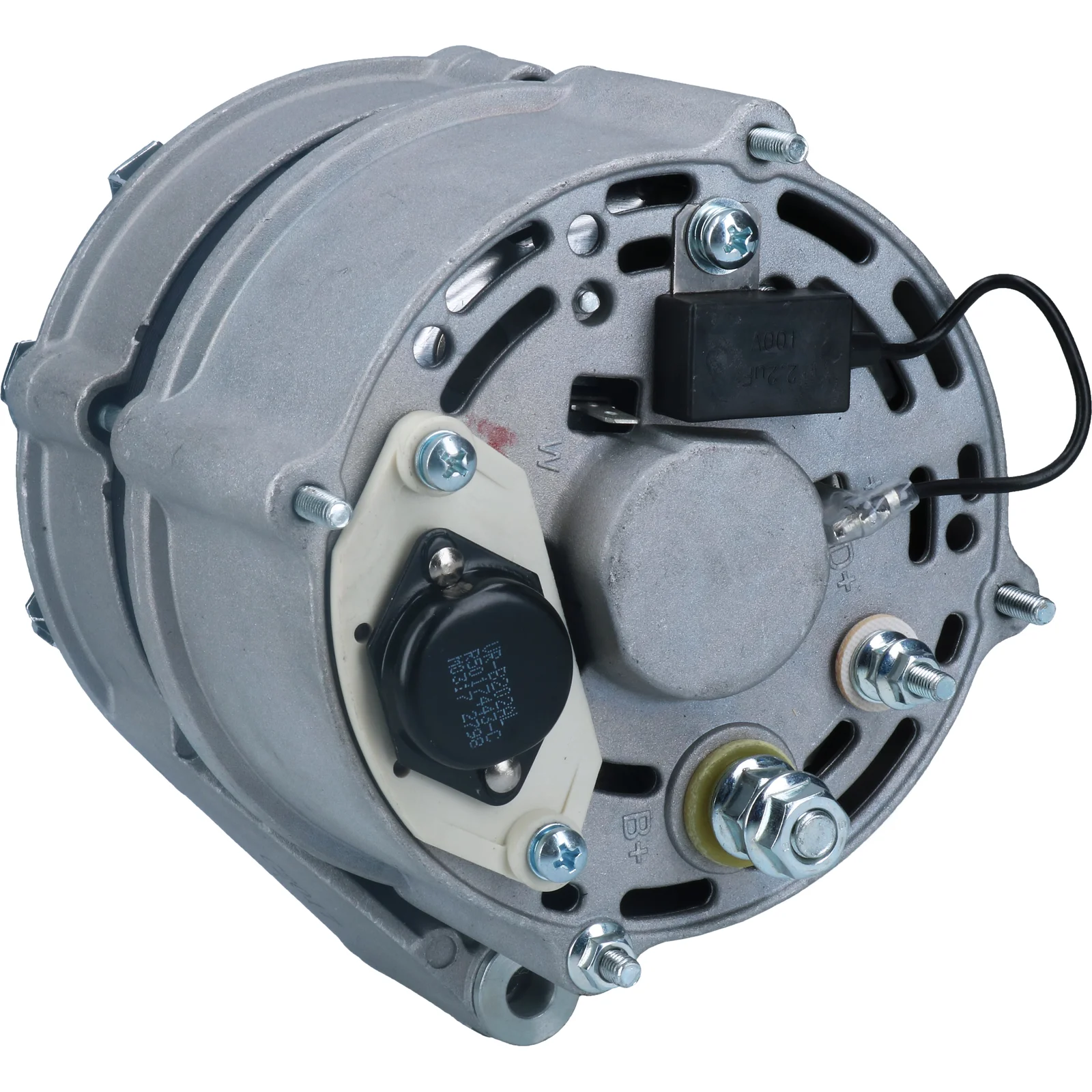

Iveco/Deutz Generator 12V-95A 12V - 95A, "W" regulator 56mm, bracket hole 8.2mm 65A see 90-255-3133 120A see 90-900-8120 For Yourex product order 90-255-4184

Voltage: 14
Amperage: 95
Terminal: W
Width/holder arm: 56.00
Bracket hole: 8.30
Belt adjustment. bracket hole position: 50
Belt adjustment. bracket hole 1: 8.30
Radius: 86.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 28
D+ size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 170.00
Pulley: w/o
Regulator type: IR
Product info: BN
Servicing: Deutz-Fahr

Files

  • OEM
    AAK 1312, AAK 4320, aak1312, AAK1811, AAK3822, AAK4320, AL 38 46201, al3846201, AZ3846201, F032112046, MG 314, 11.201.991, 11.203.331, 11.203.656, 11.204.054, 117 7063, 117 8607, 118 2173, 118 3455, 0120 484 001, 0986 041 840, 1081, 1433ir, 11203 331, 112046, 01177063, 1177063, 01178607, 1178607, 01182173, 01182961, 1182961, 01183455, 1183455, 01183630, 01183844, 1516466R, 03040715, 3040715, 04191523, 4374272, 05717201, 11201991, 11203331, 42498275, 42522743, 0120484001, 0900211175, 0986041840

  • Normalised article numbler
    a0389, a9149letrika, aak1312, aak1811, aak3822, aak4320, abo0195, al3846201, alt10395, az3846201, bao3263, cal21114, drb1840, drb1840n, f032112046, ia1081, lra01397, mg314, 8el012426591, 8el737617001, 1081, 1433ir, 5730, 12169, 12169n, 112046, 113065, 119341, 202056, 281830, 301433ri, 434017, 01177063, 1177063, 01178607, 1178607, 01182173, 1182173, 01182961, 1182961, 01183455, 1183455, 01183630, 01183844, 1516466r, 03040715, 3040715, 04191523, 4374272, 05717201, 9941840, 11201991, 11203331, 11203656, 11204054, 12041840, 20130137, 42498275, 42522743, 0120484001, 200128952, 0900211175, 943356766, 0986041840, 0986041847
  • Description
    Iveco/Deutz Generator 12V-95A 12V - 95A, "W" regulator 56mm, bracket hole 8.2mm 65A see 90-255-3133 120A see 90-900-8120 For Yourex product order 90-255-4184

    Voltage: 14
    Amperage: 95
    Terminal: W
    Width/holder arm: 56.00
    Bracket hole: 8.30
    Belt adjustment. bracket hole position: 50
    Belt adjustment. bracket hole 1: 8.30
    Radius: 86.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 28
    D+ size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 170.00
    Pulley: w/o
    Regulator type: IR
    Product info: BN
    Servicing: Deutz-Fahr

    Files

  • Suitable for these vehicles

    • OEM
      AAK 1312, AAK 4320, aak1312, AAK1811, AAK3822, AAK4320, AL 38 46201, al3846201, AZ3846201, F032112046, MG 314, 11.201.991, 11.203.331, 11.203.656, 11.204.054, 117 7063, 117 8607, 118 2173, 118 3455, 0120 484 001, 0986 041 840, 1081, 1433ir, 11203 331, 112046, 01177063, 1177063, 01178607, 1178607, 01182173, 01182961, 1182961, 01183455, 1183455, 01183630, 01183844, 1516466R, 03040715, 3040715, 04191523, 4374272, 05717201, 11201991, 11203331, 42498275, 42522743, 0120484001, 0900211175, 0986041840

    • Normalised article numbler
      a0389, a9149letrika, aak1312, aak1811, aak3822, aak4320, abo0195, al3846201, alt10395, az3846201, bao3263, cal21114, drb1840, drb1840n, f032112046, ia1081, lra01397, mg314, 8el012426591, 8el737617001, 1081, 1433ir, 5730, 12169, 12169n, 112046, 113065, 119341, 202056, 281830, 301433ri, 434017, 01177063, 1177063, 01178607, 1178607, 01182173, 1182173, 01182961, 1182961, 01183455, 1183455, 01183630, 01183844, 1516466r, 03040715, 3040715, 04191523, 4374272, 05717201, 9941840, 11201991, 11203331, 11203656, 11204054, 12041840, 20130137, 42498275, 42522743, 0120484001, 200128952, 0900211175, 943356766, 0986041840, 0986041847
