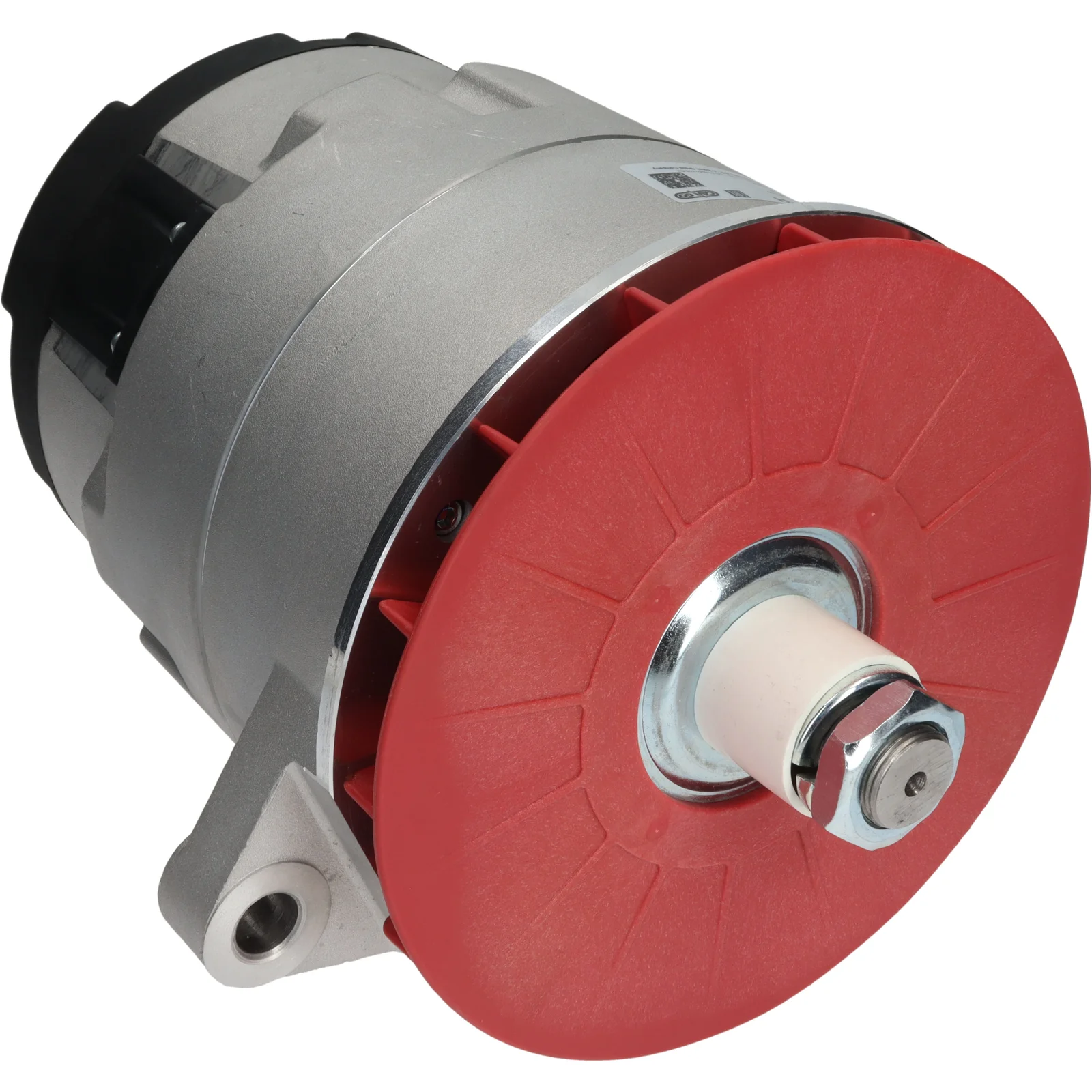

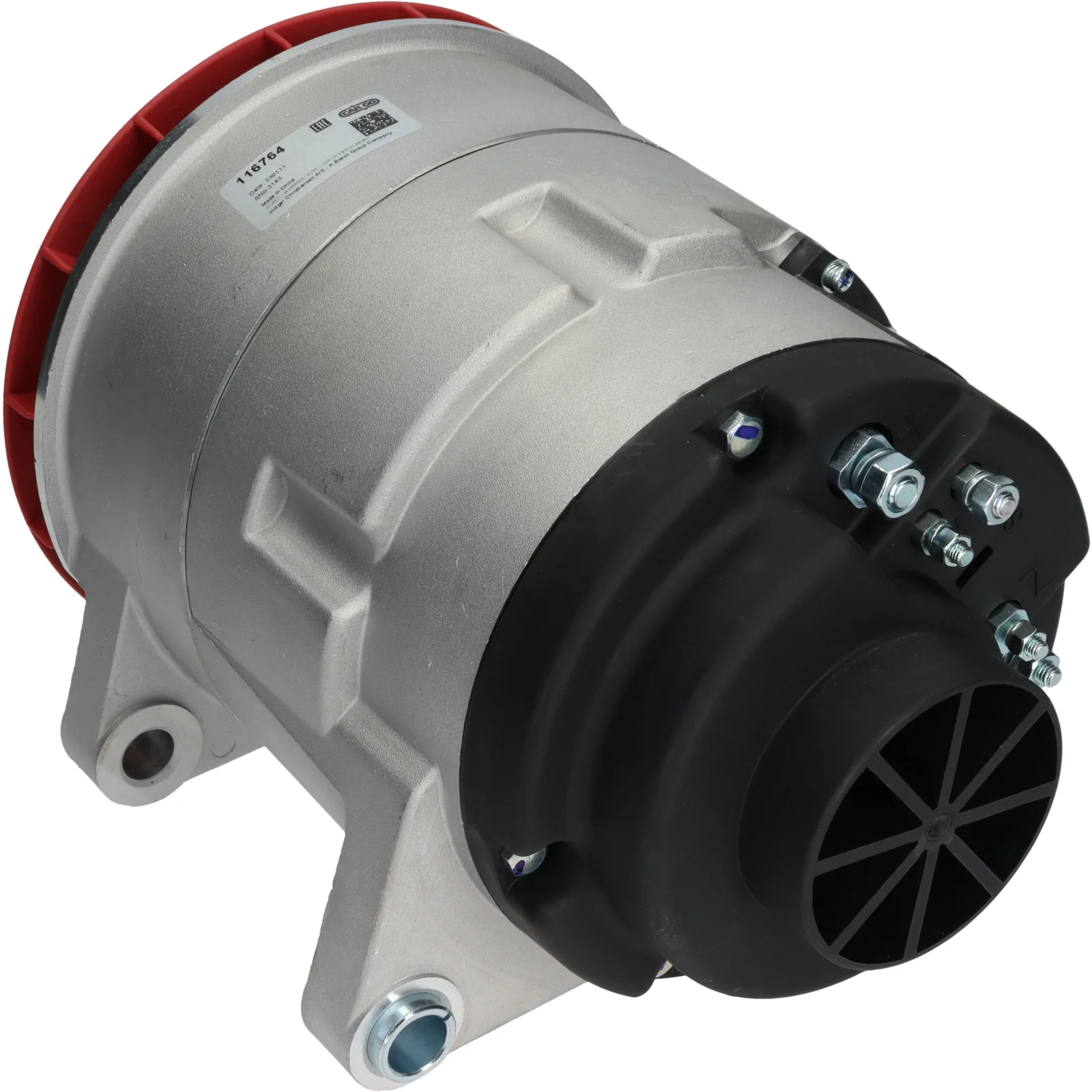

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116764

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 155, Rotation: CW/CCW, Mounting bracket distance: 111.00

Description

Voltage: 28
Amp: 155
Width/holder arm: 22.00
Mounting bracket dist.: 111.00
Bracket hole: 16.00
Belt. adjustment bracket hole position.: 50
Belt. adjustment bracket hole 1: 16.00
Radius: 120.00
Radius 2: 120.00
Alternator B+: M8
Position/B+ in min.: 52
D+ Size: M5
Rotation: CW/CCW
W plug type: M6
Total length mm: 315.00
Pulley: w/o
Fan: EF
Voltage regulator type: IR

Files

  • OEM
    aat1393, F032116764, 11.203.924, 172RA301A, 172RA356A, 1277A730, 1277330, 1277450, 1277490, 1277530, 1277730, 1285620, 3282431, 5010179702, 5010257064

  • Normalised article numbler
    aat1393, cal11626, dra1343, f032116764, ia1413, lea0153, lra2524, 172ra301a, 172ra356a, 1277a730, 304015, 484670, 1277330, 1277450, 1277490, 1277530, 1277730, 1285620, 3282431, 11203924, 576003140, 5010179702, 5010257064
  • Description
    Voltage: 28
    Amp: 155
    Width/holder arm: 22.00
    Mounting bracket dist.: 111.00
    Bracket hole: 16.00
    Belt. adjustment bracket hole position.: 50
    Belt. adjustment bracket hole 1: 16.00
    Radius: 120.00
    Radius 2: 120.00
    Alternator B+: M8
    Position/B+ in min.: 52
    D+ Size: M5
    Rotation: CW/CCW
    W plug type: M6
    Total length mm: 315.00
    Pulley: w/o
    Fan: EF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      aat1393, F032116764, 11.203.924, 172RA301A, 172RA356A, 1277A730, 1277330, 1277450, 1277490, 1277530, 1277730, 1285620, 3282431, 5010179702, 5010257064

    • Normalised article numbler
      aat1393, cal11626, dra1343, f032116764, ia1413, lea0153, lra2524, 172ra301a, 172ra356a, 1277a730, 304015, 484670, 1277330, 1277450, 1277490, 1277530, 1277730, 1285620, 3282431, 11203924, 576003140, 5010179702, 5010257064
