HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116291

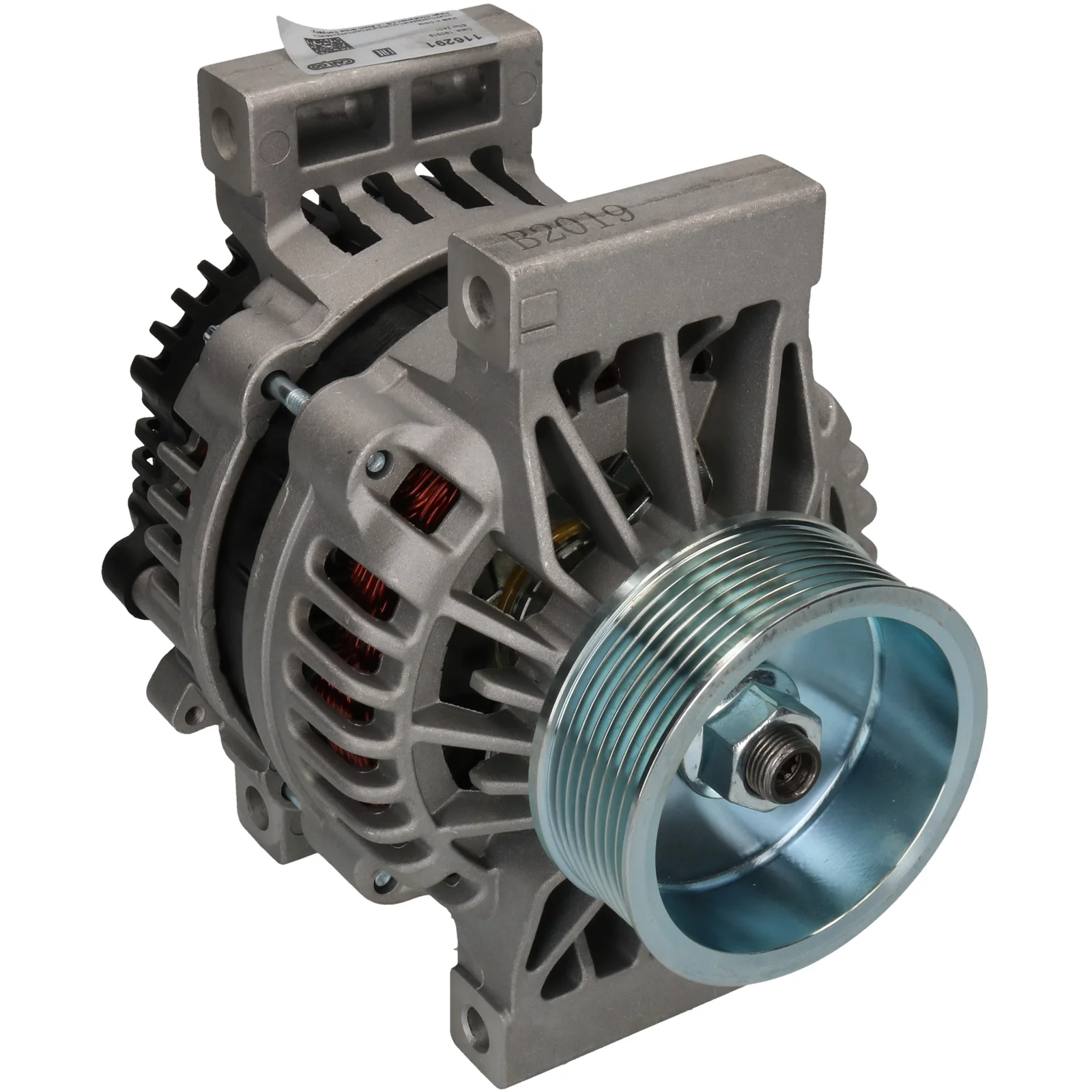

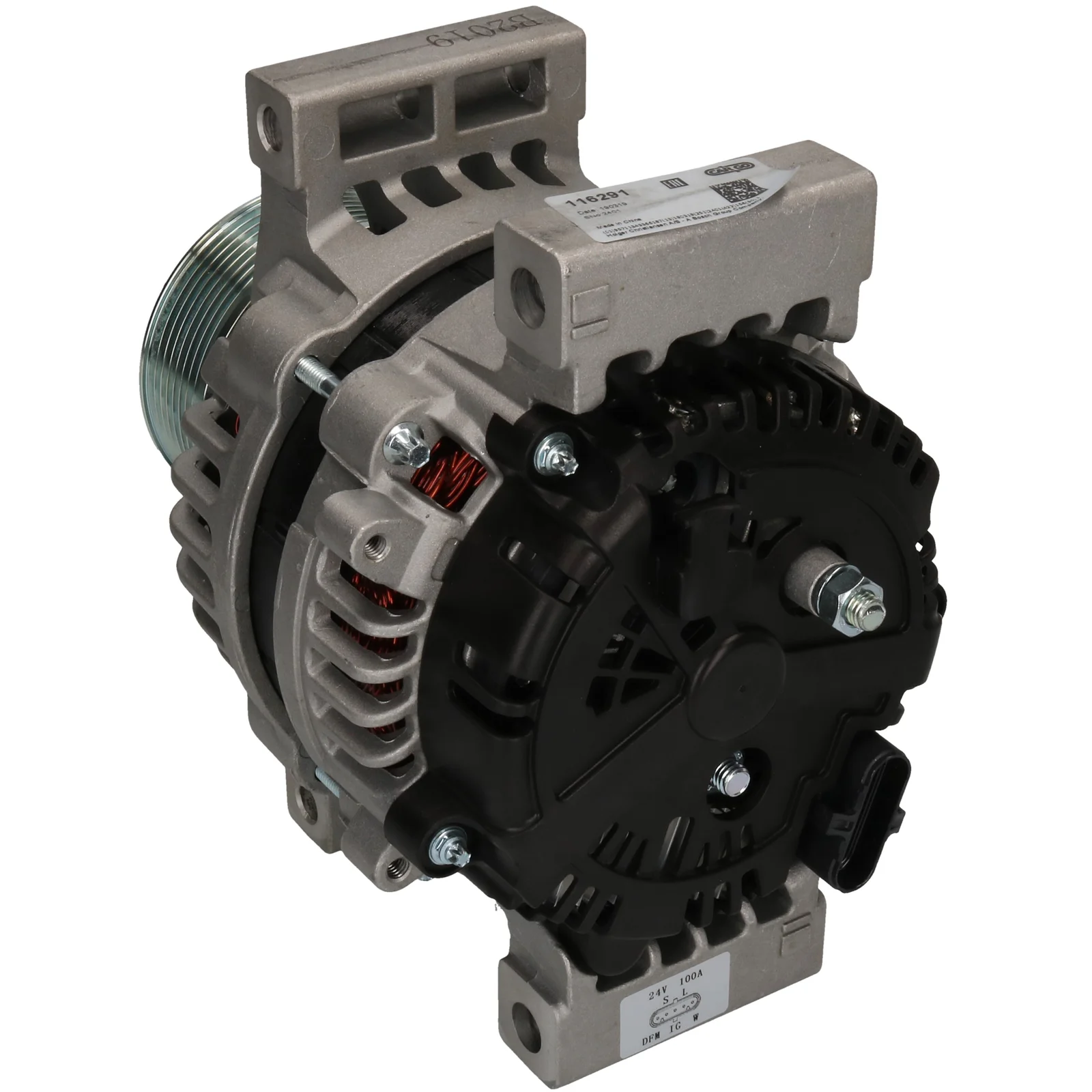

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 100, Rotation: CW, Mounting bracket distributor: 107.50

Description

Alternator 24V-100A MB Truck 24V - 100A, (W, L, 15, S, DFM) For Yourex product order GE-8761 Voltage: 28 Amp: 100 Pulley diameter: 38.70 Width/holder arm: 80.00 Mounting bracket diameter: 107.50 Bracket hole: 12.50 Bracket hole 2: 10.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 12.50 Belt adjustment bracket hole 2: 10.50 Pulley diameter: 93.00 Grooves/pulley: 8 Radius: 95.00 Radius 2: 95.00 B+: M8 Position/B+ in min.: 10 D+ Size: Plug Rotation: CW Plug number: PL82 Total length mm: 218.00 Pulley: SP Voltage regulator type: IR

Files

  • OEM
    A0141546202, A0141547102, A0141547402, A0151540302, A0151541302, A0151542402, F032116291, 014 154 7402, 015 154 0302, 015 154 1302, 861311, 8600481, 8600512, 8600578, 8600612, 8600620, 8600621, 8600764, 0141546202, 0141547102, 0141547402, 0151540302, 0151541202, 0151541302, 0151542402

  • Normalised article numbler
    a0141546202, a0141547102, a0141547402, a0151540302, a0151541302, a0151542402, a1050s, a28p015p, cal60621, f032116291, lra03814, mg1026, 8el012584941, 8761n, 486924, 554434ri, 861311, 8600481, 8600512, 8600578, 8600612, 8600620, 8600621, 8600764, 9990823, 12090786, 0141546202, 0141547102, 0141547402, 0151540302, 0151541202, 0151541302, 0151542402, 556519100, 5251371004
  • Description
    Alternator 24V-100A MB Truck 24V - 100A, (W, L, 15, S, DFM) For Yourex product order GE-8761 Voltage: 28 Amp: 100 Pulley diameter: 38.70 Width/holder arm: 80.00 Mounting bracket diameter: 107.50 Bracket hole: 12.50 Bracket hole 2: 10.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 12.50 Belt adjustment bracket hole 2: 10.50 Pulley diameter: 93.00 Grooves/pulley: 8 Radius: 95.00 Radius 2: 95.00 B+: M8 Position/B+ in min.: 10 D+ Size: Plug Rotation: CW Plug number: PL82 Total length mm: 218.00 Pulley: SP Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0141546202, A0141547102, A0141547402, A0151540302, A0151541302, A0151542402, F032116291, 014 154 7402, 015 154 0302, 015 154 1302, 861311, 8600481, 8600512, 8600578, 8600612, 8600620, 8600621, 8600764, 0141546202, 0141547102, 0141547402, 0151540302, 0151541202, 0151541302, 0151542402

    • Normalised article numbler
      a0141546202, a0141547102, a0141547402, a0151540302, a0151541302, a0151542402, a1050s, a28p015p, cal60621, f032116291, lra03814, mg1026, 8el012584941, 8761n, 486924, 554434ri, 861311, 8600481, 8600512, 8600578, 8600612, 8600620, 8600621, 8600764, 9990823, 12090786, 0141546202, 0141547102, 0141547402, 0151540302, 0151541202, 0151541302, 0151542402, 556519100, 5251371004
