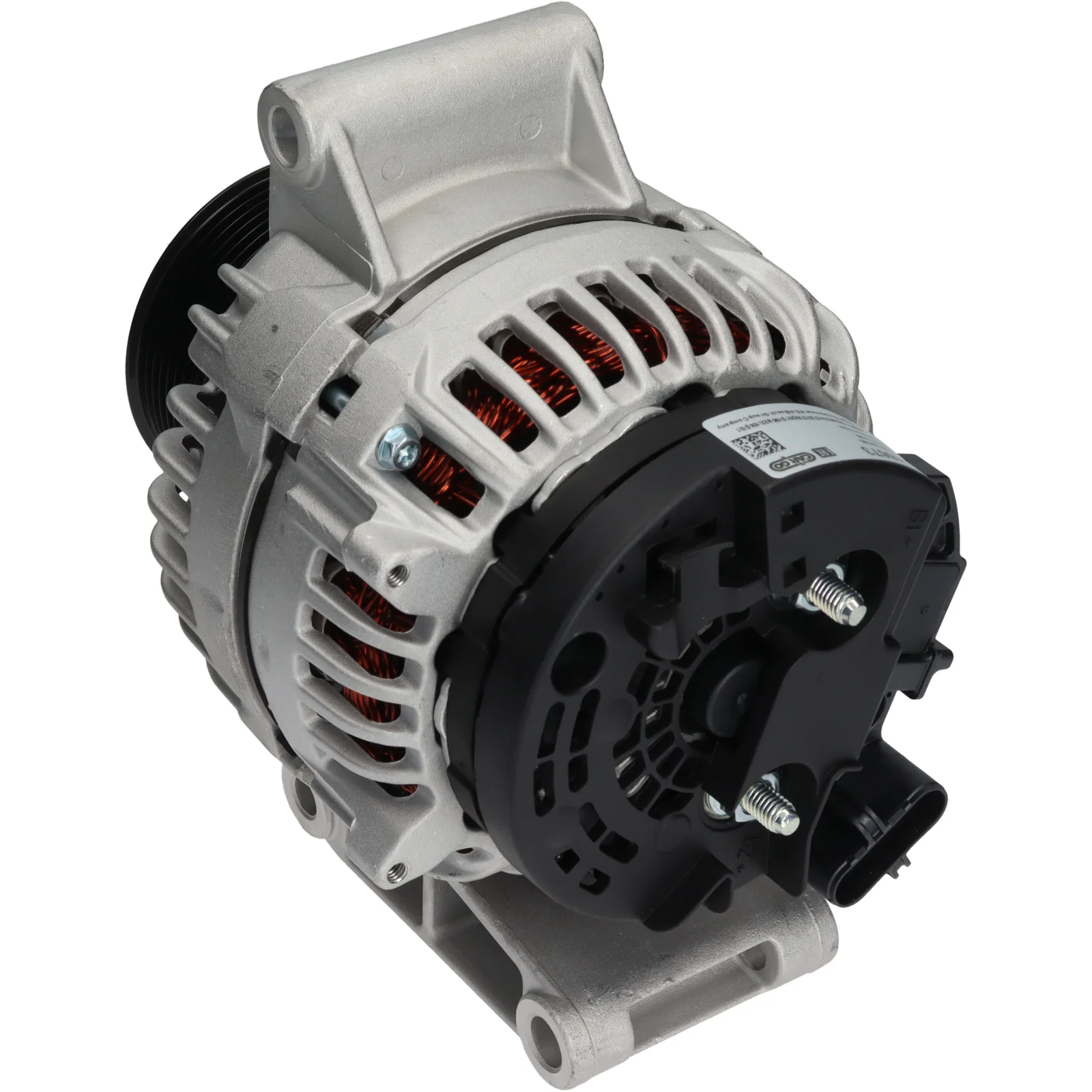

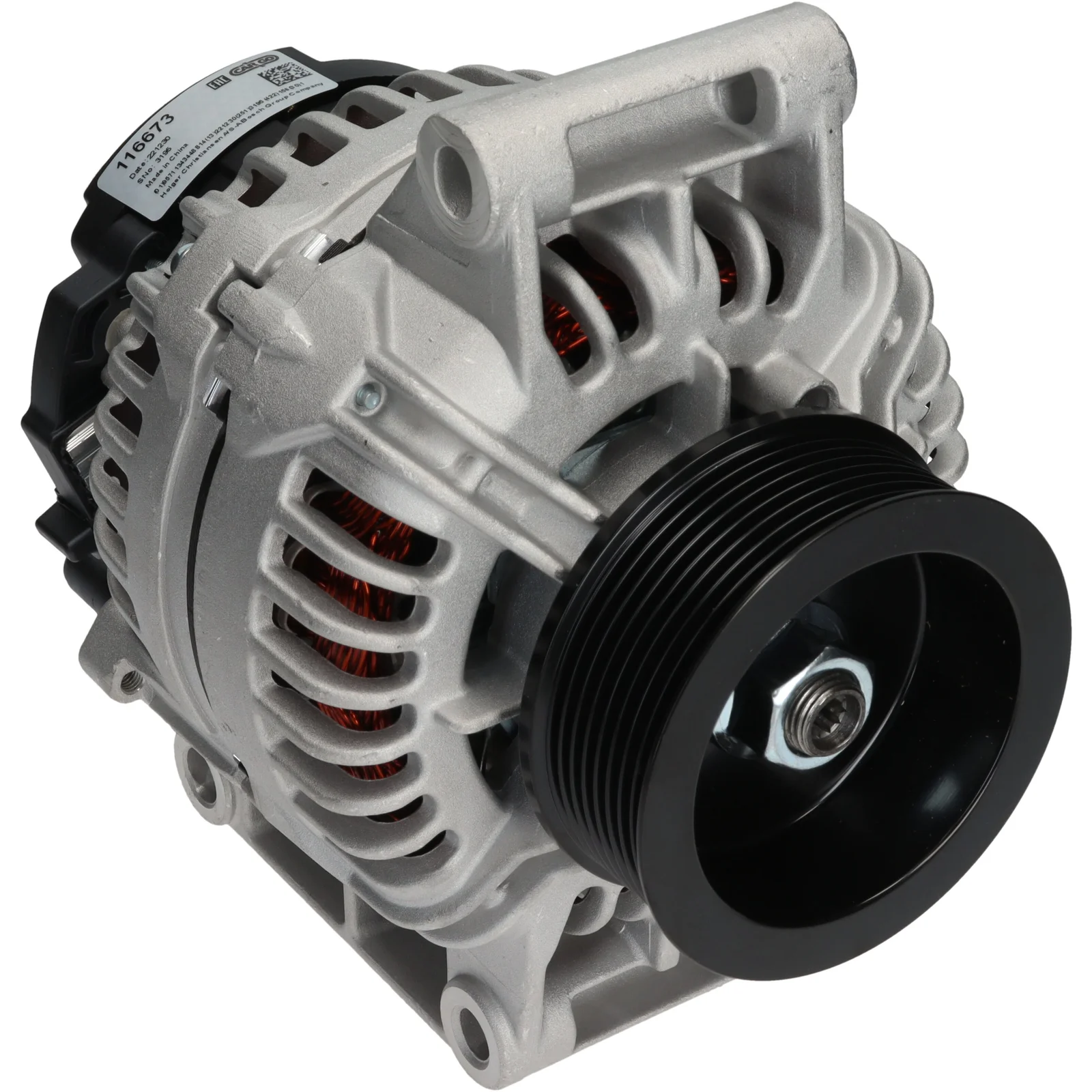

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116673

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 100, Rotation: CW, Mounting bracket distributor: 108.00

Description

Voltage: 28
Amp: 100
Pulley dist.: 38.00
Width/holder arm: 80.00
Mount. bracket dist.: 108.00
Bracket hole: 11.00
Belt. adj. bracket hole 1: 11.00x12.50
Pulley dia.: 93.00
Grooves/pulley: 8
Radius: 95.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 36
Rotation: CW
Plug no.: PL82
Total length mm: 206.00
Terminal type: W-L-15-S-DFM
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    A0151540202, A0151541502, A015154150280, A0151543802, F032116673, 1986A01982, 861385, 0124655327, 0124655328, 0124655617, 0124655618, 0128821008, 0128821161, 0151540202, 0151541502, 0151543802, 015154150280

  • Normalised article numbler
    a0151540202, a0151541502, a015154150280, a0151543802, a0764s, cal10700, f032116673, lra04565, 8el012584891, 1986a01982, 2663, 202035, 443493, 444418, 474006, 488674, 554621rib, 861385, 12090970, 0124655327, 0124655328, 0124655617, 0124655618, 0128821008, 0128821161, 0151540202, 0151541502, 0151543802, 556527100, 0986084520, 015154150280
  • Description
    Voltage: 28
    Amp: 100
    Pulley dist.: 38.00
    Width/holder arm: 80.00
    Mount. bracket dist.: 108.00
    Bracket hole: 11.00
    Belt. adj. bracket hole 1: 11.00x12.50
    Pulley dia.: 93.00
    Grooves/pulley: 8
    Radius: 95.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 36
    Rotation: CW
    Plug no.: PL82
    Total length mm: 206.00
    Terminal type: W-L-15-S-DFM
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0151540202, A0151541502, A015154150280, A0151543802, F032116673, 1986A01982, 861385, 0124655327, 0124655328, 0124655617, 0124655618, 0128821008, 0128821161, 0151540202, 0151541502, 0151543802, 015154150280

    • Normalised article numbler
      a0151540202, a0151541502, a015154150280, a0151543802, a0764s, cal10700, f032116673, lra04565, 8el012584891, 1986a01982, 2663, 202035, 443493, 444418, 474006, 488674, 554621rib, 861385, 12090970, 0124655327, 0124655328, 0124655617, 0124655618, 0128821008, 0128821161, 0151540202, 0151541502, 0151543802, 556527100, 0986084520, 015154150280
