HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116650

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 55, Rotation: CW, Mounting bracket distance: 59.50

Description

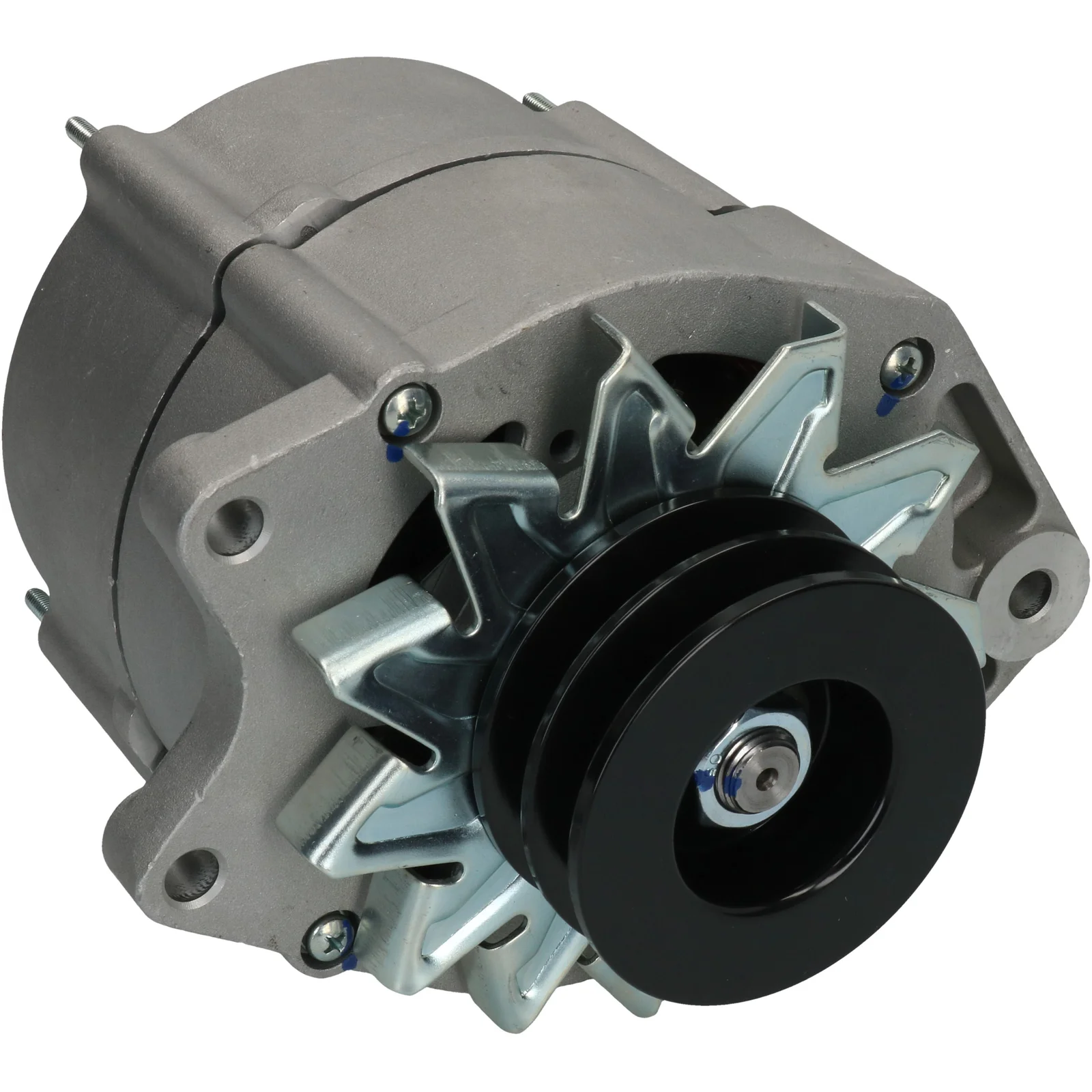

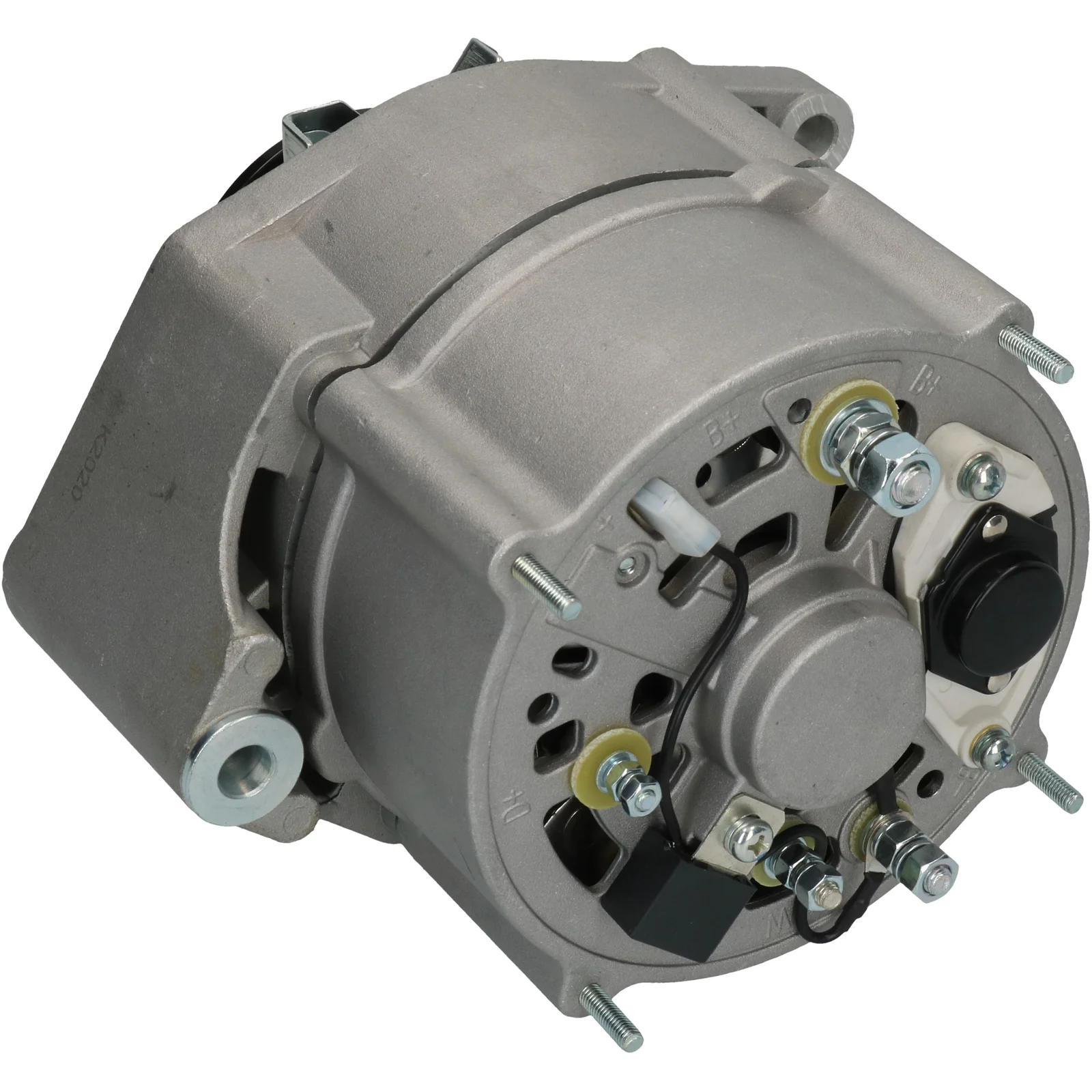

HC-Cargo Alternator 24V - 55A, 2-pole

Voltage: 28
Amp: 55
Insulated return: Yes
Pulley dist.: 30.00
Width/holder arm: 80.00
Mounting bracket dist.: 59.50
Bracket hole: 10.30
Belt. adj. bracket hole pos.: 45
Belt. adj. bracket hole 1: 10.30
Belt. adj. bracket hole 2: 10.30
Radius: 92.50
Radius 2: 86.00
Radius 3: 86.00
B+: M8
Position/B+ in min.: 48
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 180.00
Fan: EF
Voltage regulator type: IR

Files

  • OEM
    F032116650, 51.26101-7171, 51.26101-7205, 0120 469 024, 0120 469 983, 085341, 1297344, 5126101-7171, 5126101-7205, 0120469024, 0120469983

  • Normalised article numbler
    a0087, cal10637, cal10696, dra3100, f032116650, lea0337, lra00978, lra02754, 30240ri, 085341, 432854, 436121, 1297344, 0120469024, 0120469983, 906007055, 0986032727, 51261017171, 51261017205
  • Description
    HC-Cargo Alternator 24V - 55A, 2-pole

    Voltage: 28
    Amp: 55
    Insulated return: Yes
    Pulley dist.: 30.00
    Width/holder arm: 80.00
    Mounting bracket dist.: 59.50
    Bracket hole: 10.30
    Belt. adj. bracket hole pos.: 45
    Belt. adj. bracket hole 1: 10.30
    Belt. adj. bracket hole 2: 10.30
    Radius: 92.50
    Radius 2: 86.00
    Radius 3: 86.00
    B+: M8
    Position/B+ in min.: 48
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 180.00
    Fan: EF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116650, 51.26101-7171, 51.26101-7205, 0120 469 024, 0120 469 983, 085341, 1297344, 5126101-7171, 5126101-7205, 0120469024, 0120469983

    • Normalised article numbler
      a0087, cal10637, cal10696, dra3100, f032116650, lea0337, lra00978, lra02754, 30240ri, 085341, 432854, 436121, 1297344, 0120469024, 0120469983, 906007055, 0986032727, 51261017171, 51261017205
