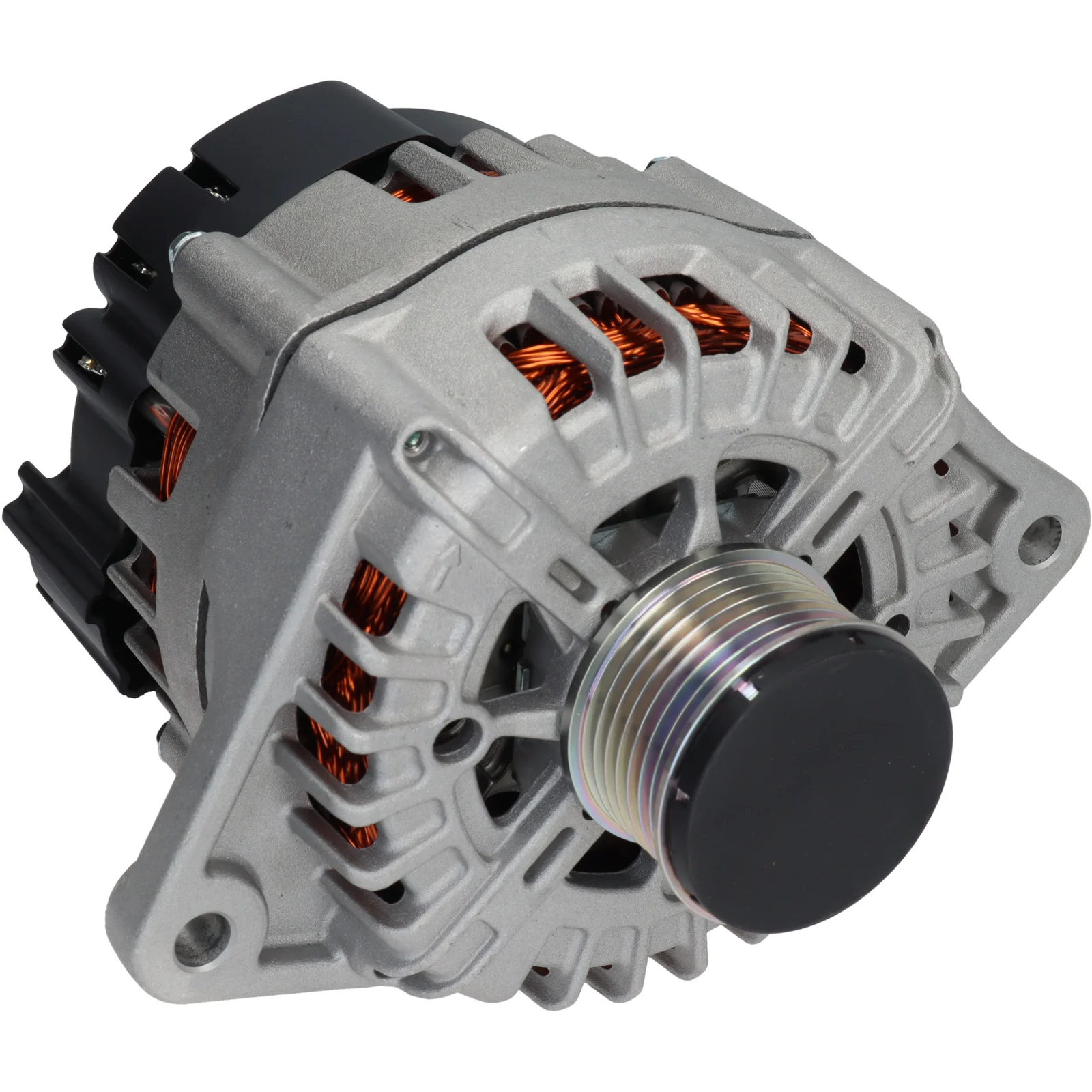

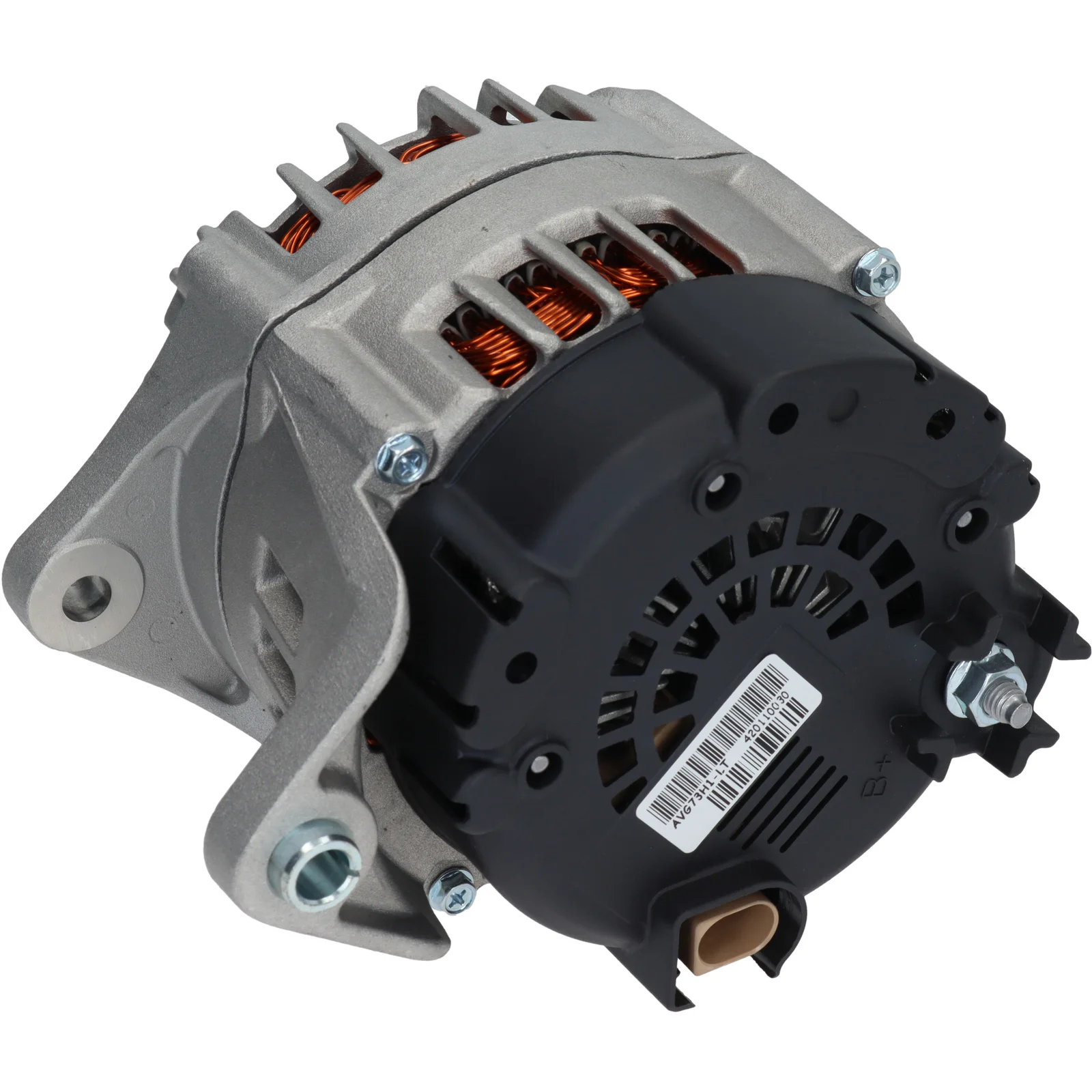

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116211

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 40.50
Width/holder arm: 14.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 56
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 94.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 190.00
Terminal type: L-DFM
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116211, FG18S 093, FG18S093, FGN18S093, 2613227, 2613227B, 5801378902

  • Normalised article numbler
    a3226, dra1323, f032116211, fg18s093, fgn18s093, 209183, 209183a, 2613227, 2613227b, 12090521, 32440437, 0986086780, 5801378902
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 40.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 56
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 190.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116211, FG18S 093, FG18S093, FGN18S093, 2613227, 2613227B, 5801378902

    • Normalised article numbler
      a3226, dra1323, f032116211, fg18s093, fgn18s093, 209183, 209183a, 2613227, 2613227b, 12090521, 32440437, 0986086780, 5801378902
