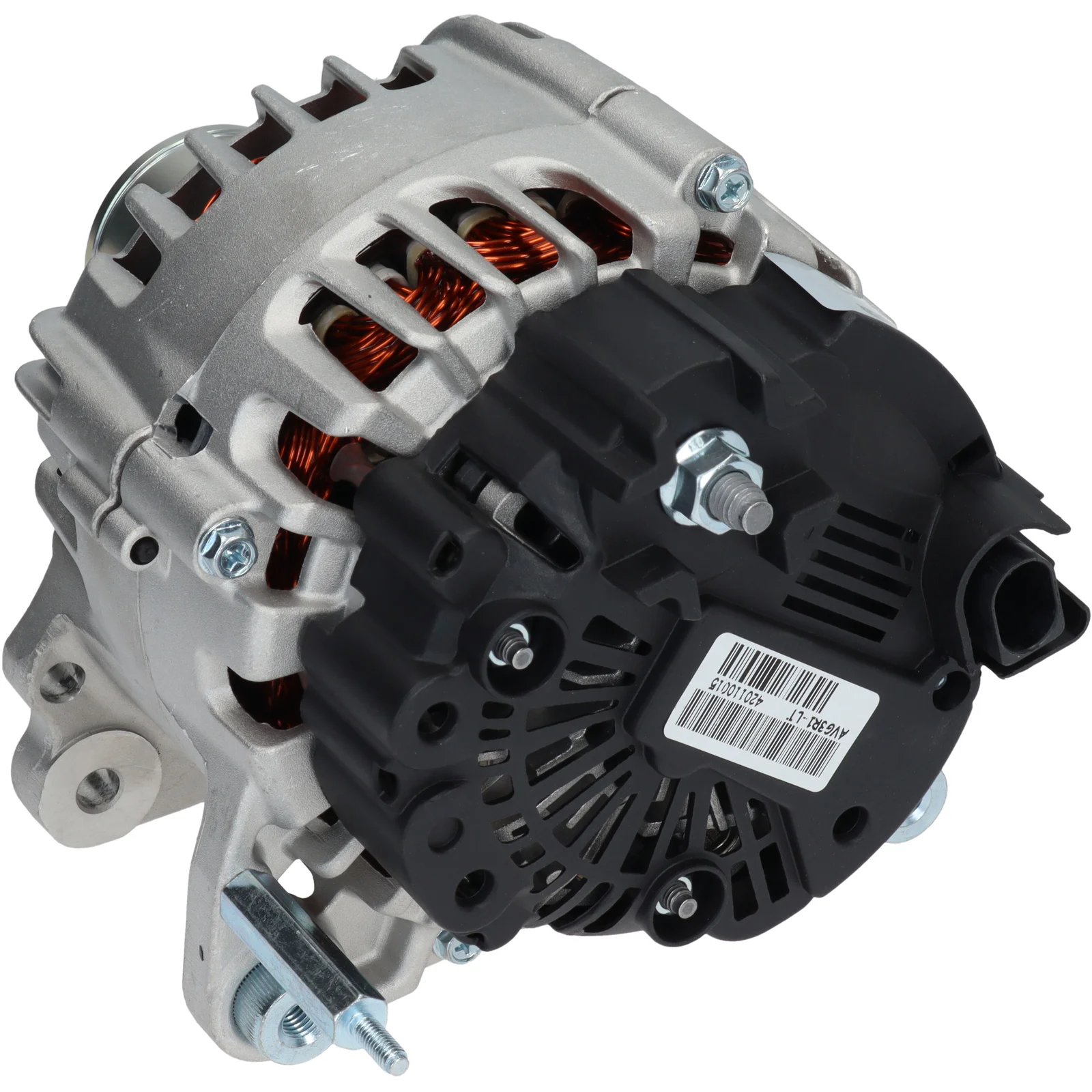

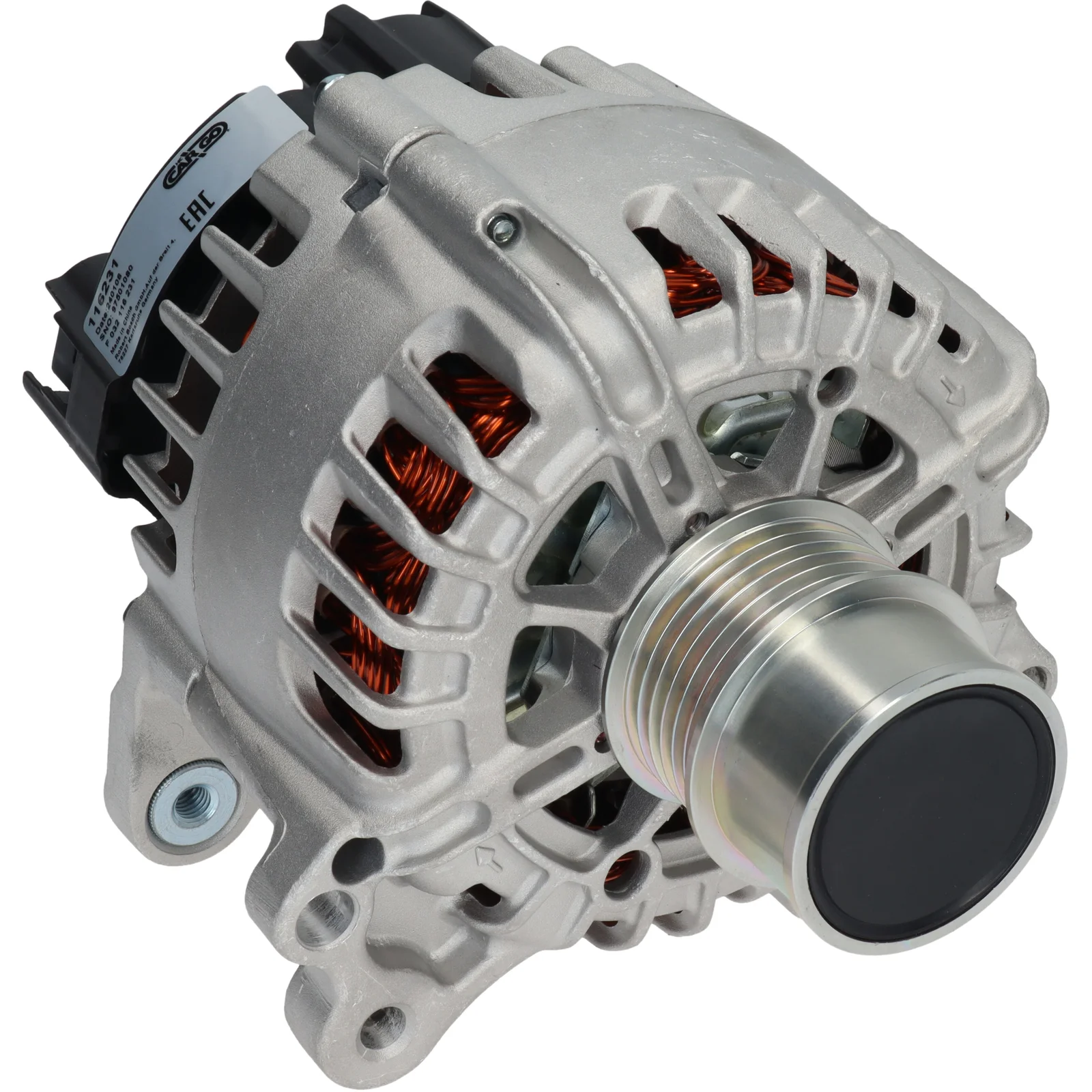

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116231

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 60.50

Description

Voltage: 14
Amp: 110
Pulley distance: 30.00
Width/holder arm: 14.50
Mounting bracket distance: 60.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug number: PL181
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A3370PR, F032116231, TG12C 211, TG12C 277, TG12C 280, TG12C 362, TG12C211, TG12C277, TG12C280, 04E 903 015, 04E 903 015G, 04E 903 021N, 04E903015, 04E903015A, 04E903015AX, 04E903015G, 04E903015GX, 04E903015H, 04E903015HX, 04E903015X, 04E903021M, 04E903021MX, 04E903021N, 04E903021NX, 04E903023G, 04E903023GX, 8EL011713-681, 305.975.110, 20661N, 200289, 439975, 440740, 2622498A, 2622498B, 2715542B, 12090725, 0986085920, 0986087020

  • Normalised article numbler
    a3370pr, f032116231, tg12c211, tg12c277, tg12c280, tg12c362, 04e903015, 04e903015a, 04e903015ax, 04e903015g, 04e903015gx, 04e903015h, 04e903015hx, 04e903015x, 04e903021m, 04e903021mx, 04e903021n, 04e903021nx, 04e903023g, 04e903023gx, 8el011713681, 20661n, 200289, 439975, 440740, 2622498a, 2622498b, 2715542b, 12090725, 305975110, 0986085920, 0986087020
  • Description
    Voltage: 14
    Amp: 110
    Pulley distance: 30.00
    Width/holder arm: 14.50
    Mounting bracket distance: 60.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug number: PL181
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A3370PR, F032116231, TG12C 211, TG12C 277, TG12C 280, TG12C 362, TG12C211, TG12C277, TG12C280, 04E 903 015, 04E 903 015G, 04E 903 021N, 04E903015, 04E903015A, 04E903015AX, 04E903015G, 04E903015GX, 04E903015H, 04E903015HX, 04E903015X, 04E903021M, 04E903021MX, 04E903021N, 04E903021NX, 04E903023G, 04E903023GX, 8EL011713-681, 305.975.110, 20661N, 200289, 439975, 440740, 2622498A, 2622498B, 2715542B, 12090725, 0986085920, 0986087020

    • Normalised article numbler
      a3370pr, f032116231, tg12c211, tg12c277, tg12c280, tg12c362, 04e903015, 04e903015a, 04e903015ax, 04e903015g, 04e903015gx, 04e903015h, 04e903015hx, 04e903015x, 04e903021m, 04e903021mx, 04e903021n, 04e903021nx, 04e903023g, 04e903023gx, 8el011713681, 20661n, 200289, 439975, 440740, 2622498a, 2622498b, 2715542b, 12090725, 305975110, 0986085920, 0986087020
