HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116735

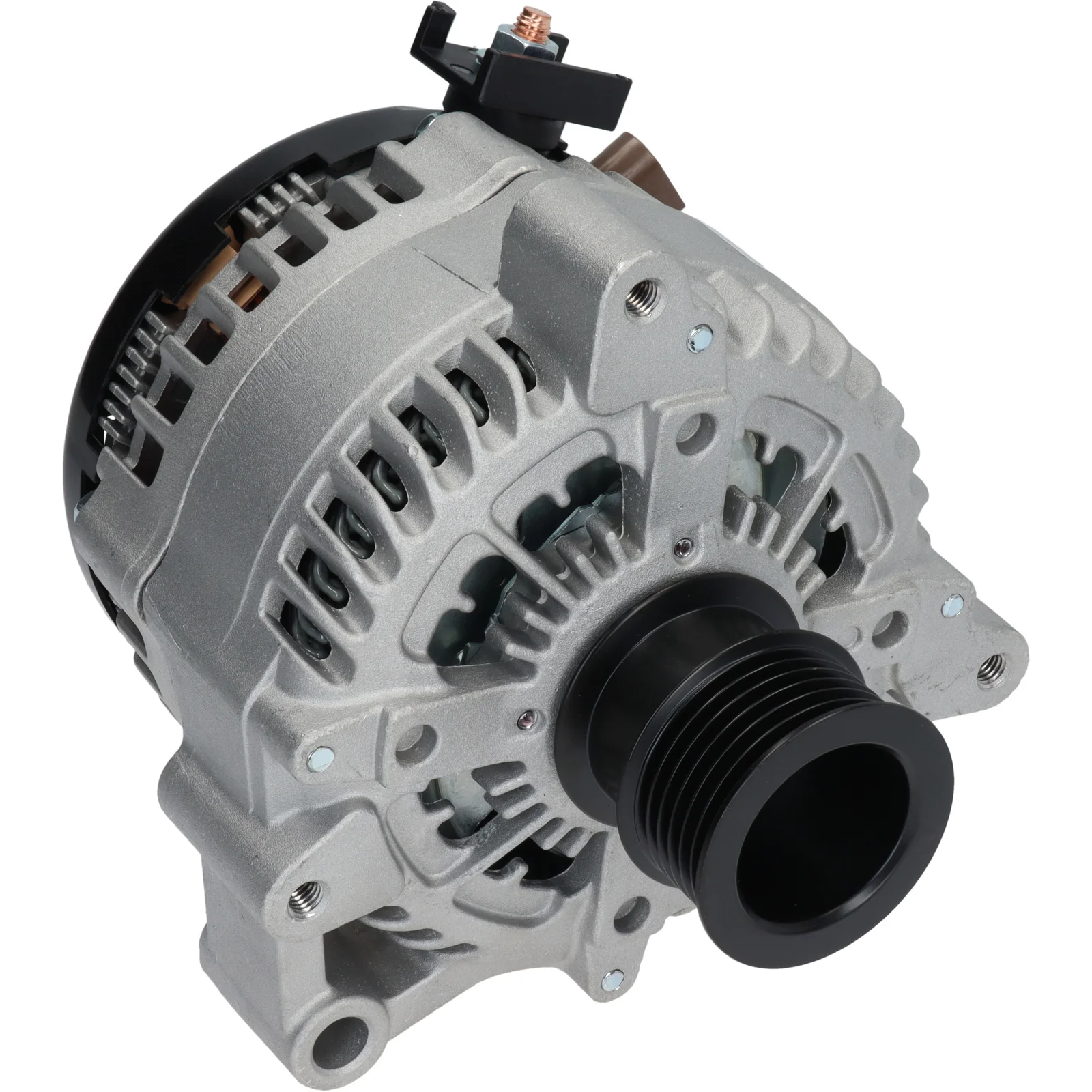

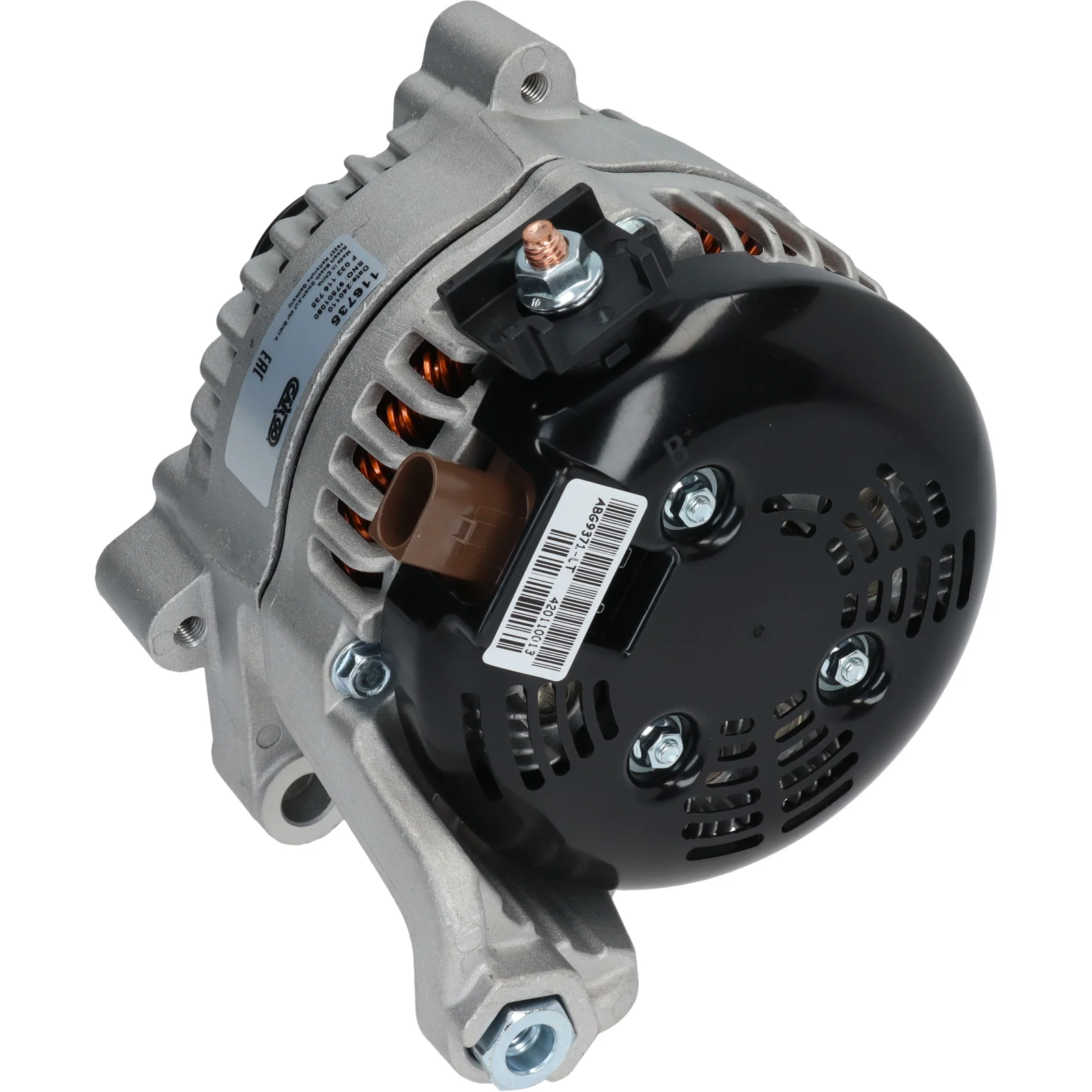

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 75.50

Description

Voltage: 14
Amp: 180
Pulley: Alternator
dist.: 80.00
Width/holder arm: 28.00
Mounting bracket distance: 75.50
Bracket hole: 10.50
Belt. adjustment bracket hole position.: 44
Belt. adjustment bracket hole 1: 11.00
Pulley diameter: 49.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL181
Total length mm: 200.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116735, 104210-6730, 104210-6731, 12318626086, 12318626089

  • Normalised article numbler
    a6673s, cal40a27, f032116735, lra04236, 40086, 287845, 555173rid, 12090980, 215924180, 1042106730, 1042106731, 12318626086, 12318626089
  • Description
    Voltage: 14
    Amp: 180
    Pulley: Alternator
    dist.: 80.00
    Width/holder arm: 28.00
    Mounting bracket distance: 75.50
    Bracket hole: 10.50
    Belt. adjustment bracket hole position.: 44
    Belt. adjustment bracket hole 1: 11.00
    Pulley diameter: 49.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL181
    Total length mm: 200.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116735, 104210-6730, 104210-6731, 12318626086, 12318626089

    • Normalised article numbler
      a6673s, cal40a27, f032116735, lra04236, 40086, 287845, 555173rid, 12090980, 215924180, 1042106730, 1042106731, 12318626086, 12318626089
