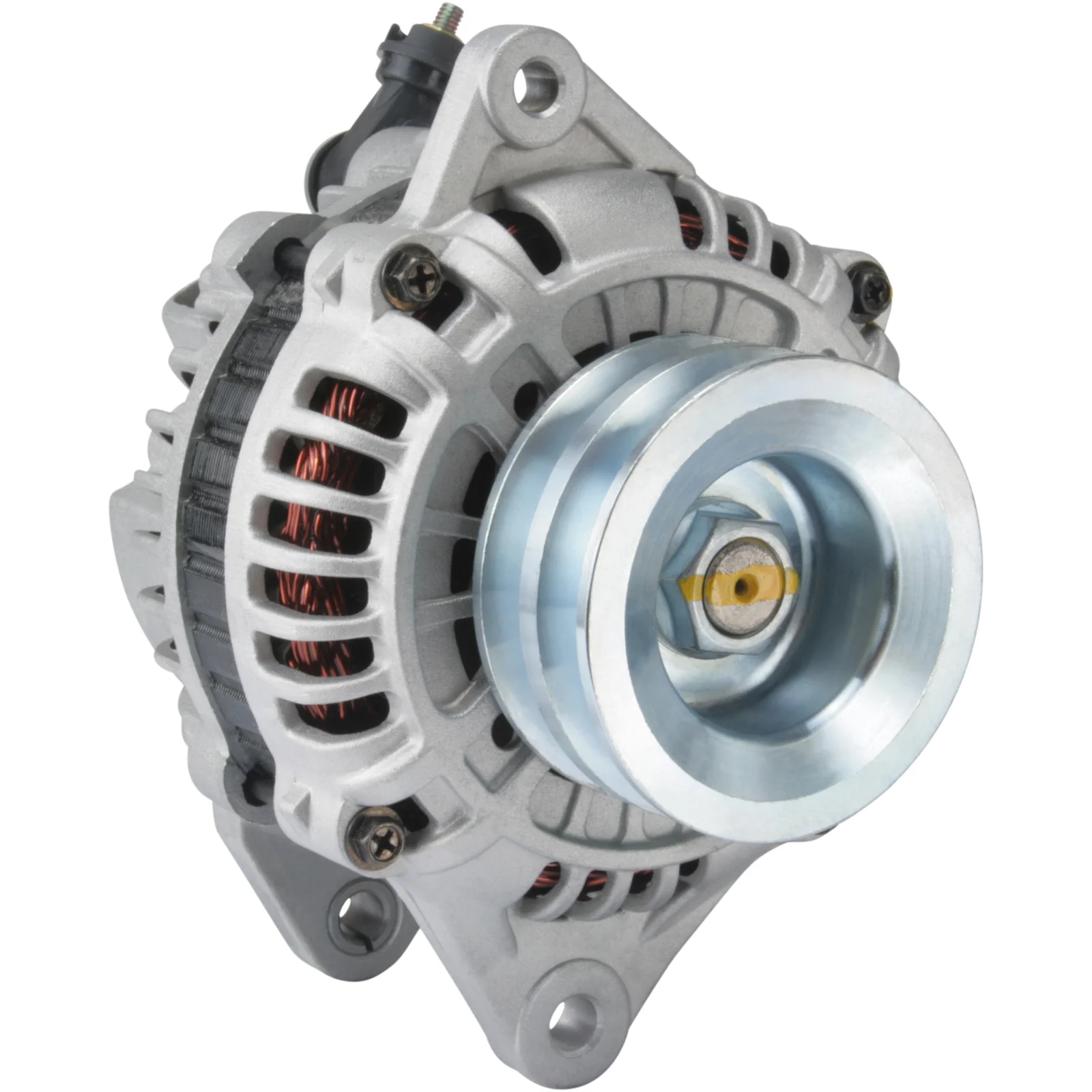

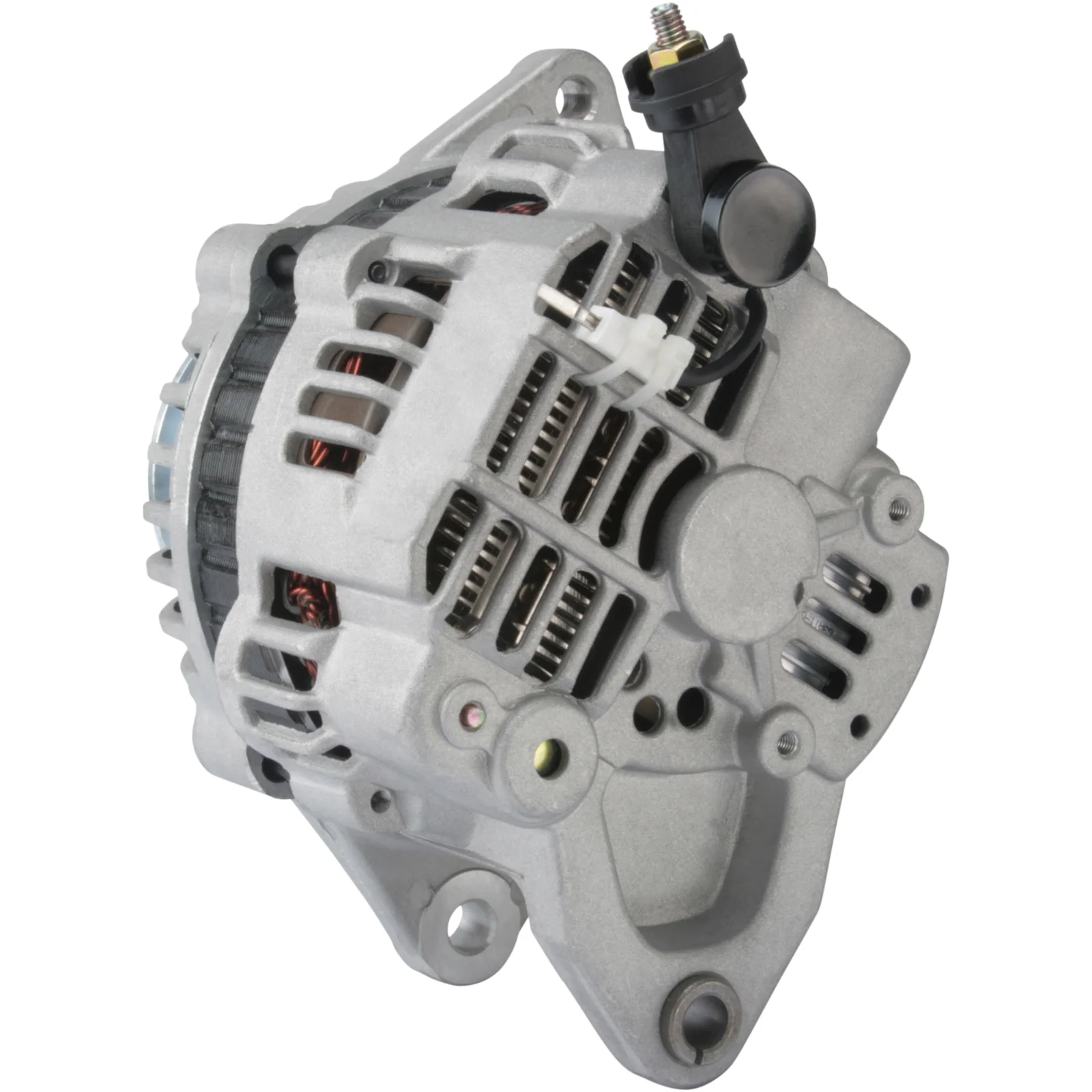

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114120

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distance: 68.00

Description

Voltage: 14
Amp: 75
Terminal: W
Pulley dist.: 41.50
Width/holder arm: 13.00
Mount. bracket dist.: 68.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 87.50
Grooves/pulley: 2
Radius: 91.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL49
W plug type: 2.80
Pulley: Alternator
Regulator type: IR

Files

  • OEM
    F032114120, f8ru10300ba, WL81-18-300, 1839ir, 1986A01867

  • Normalised article numbler
    a9346s, cal14113, dra4233, f032114120, f042205184, f042a04092, f8ru10300ba, lra02201, wl8118300, 8el738211341, 1839ir, 1986a01867, 23201r, 111348, 284665, 301839ri, 12090174, 224157752, 0986080390
  • Description
    Voltage: 14
    Amp: 75
    Terminal: W
    Pulley dist.: 41.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 68.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 87.50
    Grooves/pulley: 2
    Radius: 91.00
    Radius 2: 87.00
    B+: M6
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL49
    W plug type: 2.80
    Pulley: Alternator
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114120, f8ru10300ba, WL81-18-300, 1839ir, 1986A01867

    • Normalised article numbler
      a9346s, cal14113, dra4233, f032114120, f042205184, f042a04092, f8ru10300ba, lra02201, wl8118300, 8el738211341, 1839ir, 1986a01867, 23201r, 111348, 284665, 301839ri, 12090174, 224157752, 0986080390
