HC-Cargo Alternator

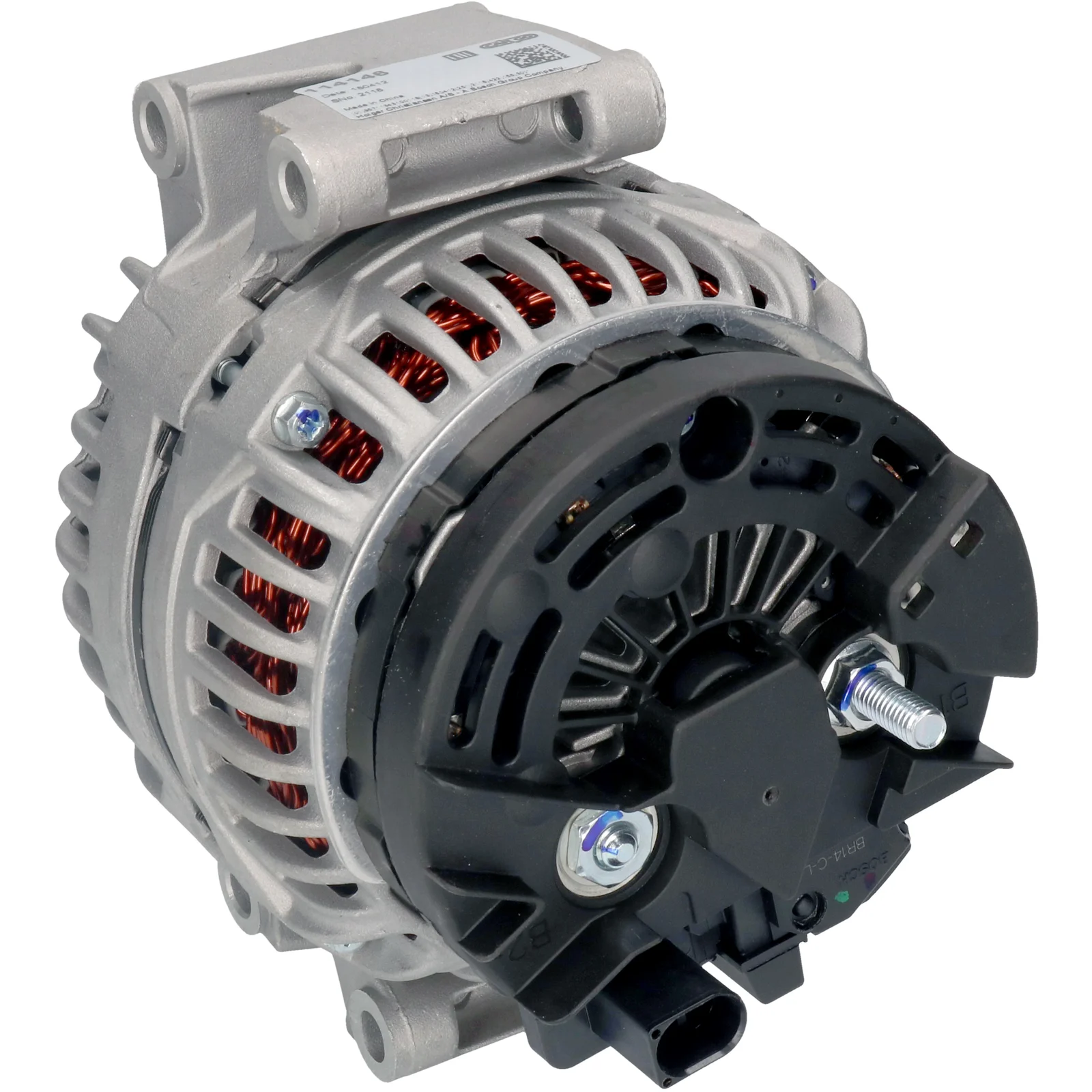

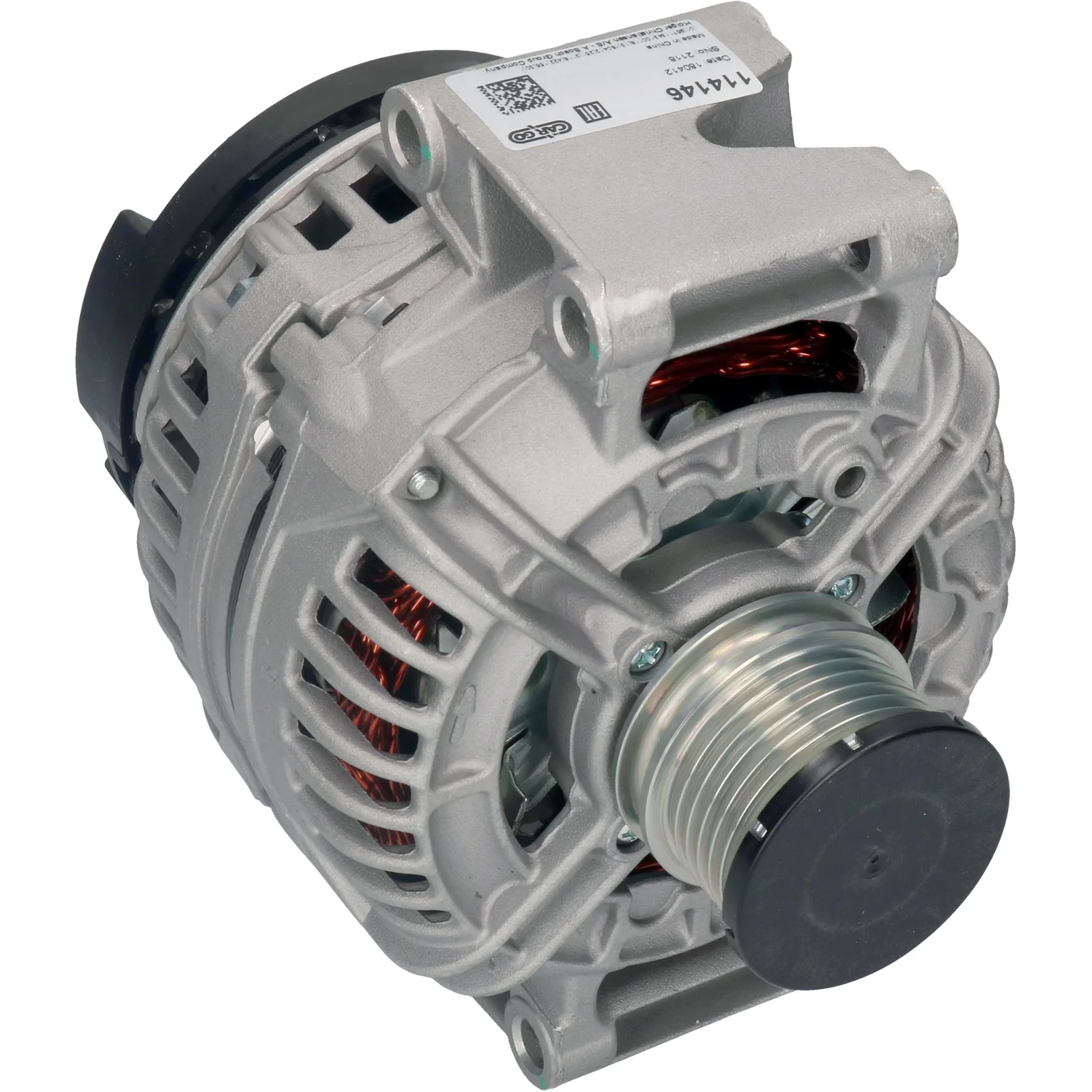

HC-Cargo Alternator
Article no.: F032114146

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distributor: 56.00

Description

HC-Cargo Alternator 14V - 120A, 6 grooves

Voltage: 14
Amps: 120
Pulley diameter: 31.00
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 9.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: 8.50
Pulley diameter: 49.50
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 42
Rotation: CW
Plug no.: PL181
Total length mm: 195.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0141542702, a0141542702, A01415427028, A014154270280, A6461541002, a6461541002, F032114146, 0124 425 077, 114146, 0124425077, 0124425126, 0141542702, 6461541002, 014154270280

  • Normalised article numbler
    a0141542702, a01415427028, a014154270280, a0746s, a6461541002, alt10731, cal10443, dra0926, f032114146, 8el011713091, 20325n, 114146, 209083, 209083a, 286574, 440943, 443300, 9049010, 12049010, 32049010, 0124425077, 0124425126, 0141542702, 555569120, 0986049010, 0986049013, 6461541002, 014154270280
  • Description
    HC-Cargo Alternator 14V - 120A, 6 grooves

    Voltage: 14
    Amps: 120
    Pulley diameter: 31.00
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: 8.50
    Pulley diameter: 49.50
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 42
    Rotation: CW
    Plug no.: PL181
    Total length mm: 195.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0141542702, a0141542702, A01415427028, A014154270280, A6461541002, a6461541002, F032114146, 0124 425 077, 114146, 0124425077, 0124425126, 0141542702, 6461541002, 014154270280

    • Normalised article numbler
      a0141542702, a01415427028, a014154270280, a0746s, a6461541002, alt10731, cal10443, dra0926, f032114146, 8el011713091, 20325n, 114146, 209083, 209083a, 286574, 440943, 443300, 9049010, 12049010, 32049010, 0124425077, 0124425126, 0141542702, 555569120, 0986049010, 0986049013, 6461541002, 014154270280
