HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114157

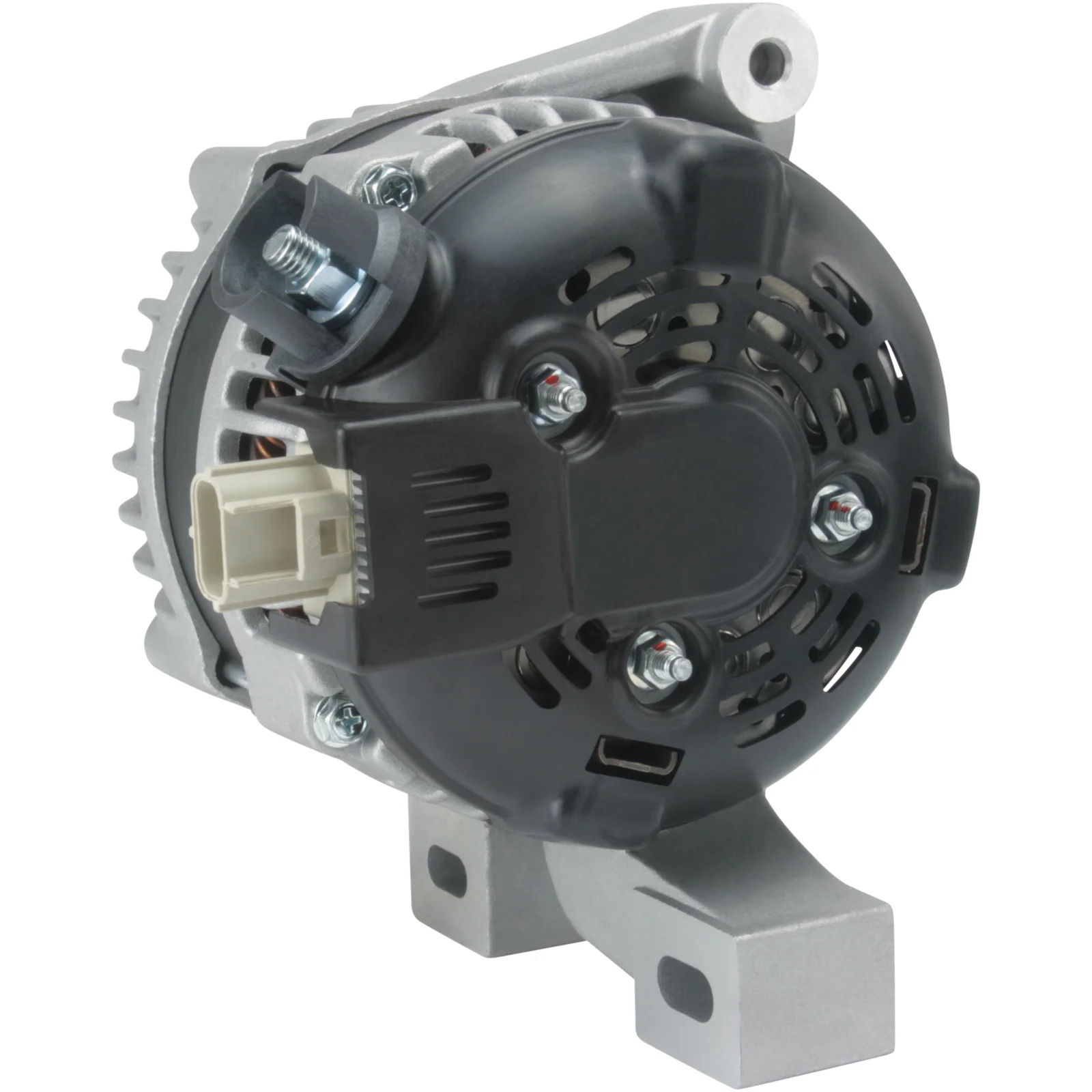

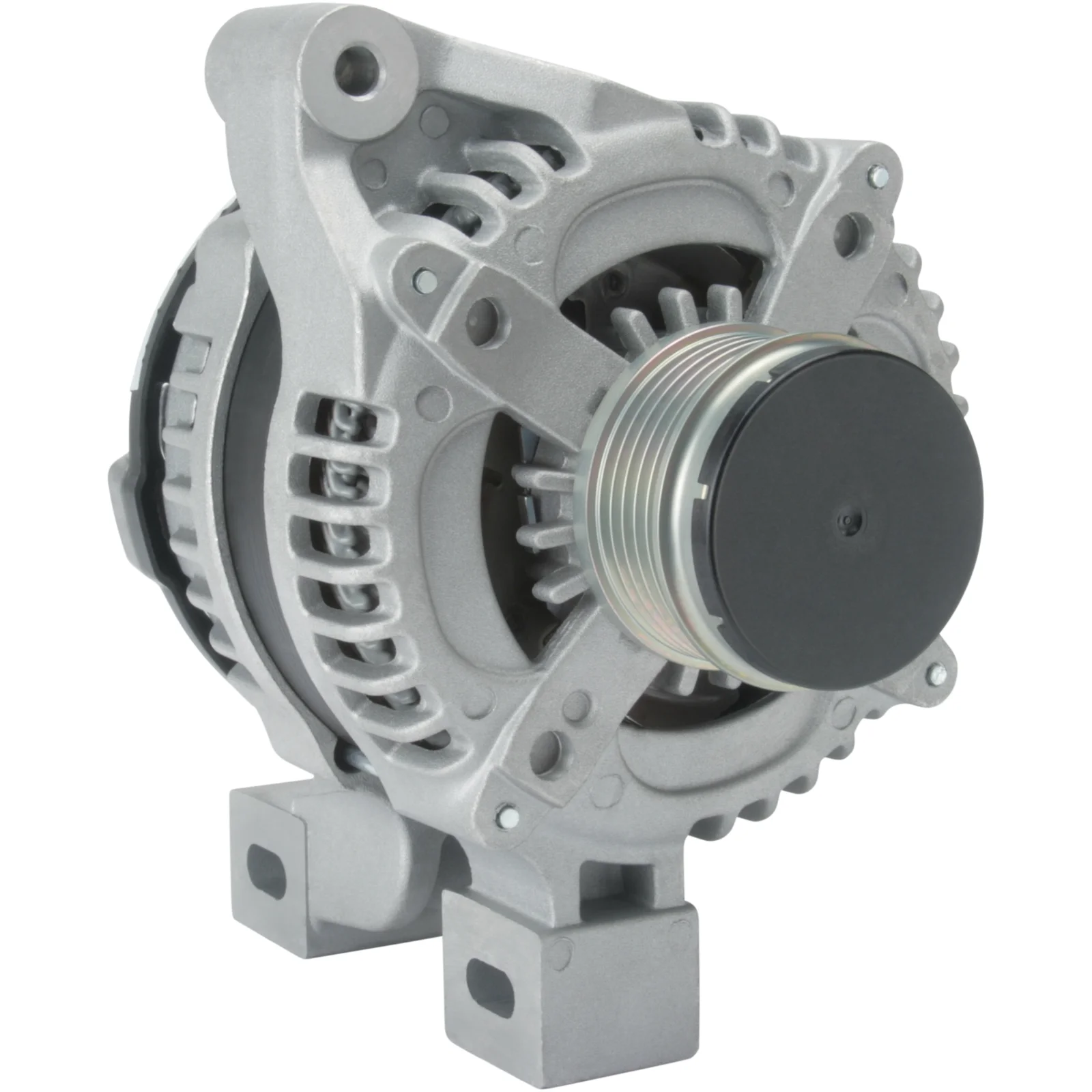

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 90.00

Description

Voltage: 14 Amp: 120 Pulley diameter: 73.20 Width/holder arm: 38.20 Mounting bracket distance: 90.00 Bracket hole: 8.20 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 8.50x17.50 Pulley diameter: 55.50 Grooves/pulley: 5 Radius: 89.00 Radius 2: 89.00 B+: M8 Position/B+ in minutes: 20 Rotation: CW Plug number: PL154 Total length mm: 170.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114157, 3M5T10300JA, 3M5T10300JB, 3m5t10300jc, 3M5T10300JD, 104210-3550, 104210-3551, 1374082, 1684865, 8676015

  • Normalised article numbler
    a6133, a6367, cal40273, dan1058, dra0741, f032114157, 3m5t10300ja, 3m5t10300jb, 3m5t10300jc, 3m5t10300jd, 4882, 20424r, 210403, 210403a, 285829, 1374082, 1684865, 8676015, 12090238, 32083070, 1042103550, 1042103551, 2381451202
  • Description
    Voltage: 14 Amp: 120 Pulley diameter: 73.20 Width/holder arm: 38.20 Mounting bracket distance: 90.00 Bracket hole: 8.20 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 8.50x17.50 Pulley diameter: 55.50 Grooves/pulley: 5 Radius: 89.00 Radius 2: 89.00 B+: M8 Position/B+ in minutes: 20 Rotation: CW Plug number: PL154 Total length mm: 170.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114157, 3M5T10300JA, 3M5T10300JB, 3m5t10300jc, 3M5T10300JD, 104210-3550, 104210-3551, 1374082, 1684865, 8676015

    • Normalised article numbler
      a6133, a6367, cal40273, dan1058, dra0741, f032114157, 3m5t10300ja, 3m5t10300jb, 3m5t10300jc, 3m5t10300jd, 4882, 20424r, 210403, 210403a, 285829, 1374082, 1684865, 8676015, 12090238, 32083070, 1042103550, 1042103551, 2381451202
