Article no.: F032114186

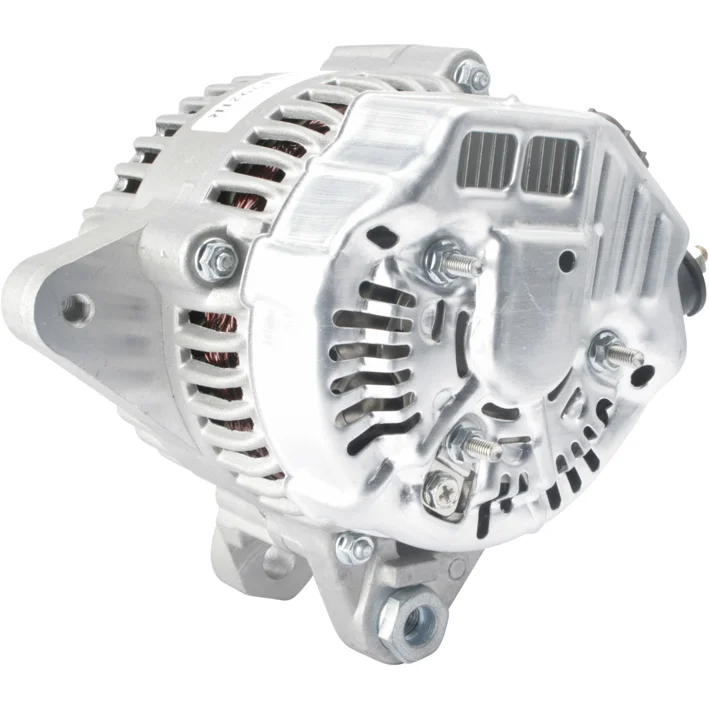

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 46.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 34.00
Width/holder arm: 17.00
Mount. bracket dist.: 46.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 170.00
Alternator: SP
Voltage regulator type: IR

Files

  • OEM
    F032114186, ja1792ir, 1986A01733, 27060-0H010, 27060-28110, 27060-28120, 27060-28170, 27060-28180, 102211-2120, 102211-2250, 102211-2380, 102211-2480

  • Normalised article numbler
    a6102, al3304x, alth200, cal40354, dan951, dendan951, dra4274, f032114186, f042205043, f042205072, f042205106, f042a0h200, ja1792ir, 1986a01733, 13957r, 13958n, 13958r, 112732, 209384, 209384a, 270600h010, 284679, 401792ri, 443304, 444230, 12060820, 063377434, 235186902, 0986082770, 1022112120, 1022112250, 1022112380, 1022112480, 2706028110, 2706028120, 2706028170, 2706028180, 063377434010
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 34.00
    Width/holder arm: 17.00
    Mount. bracket dist.: 46.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 170.00
    Alternator: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114186, ja1792ir, 1986A01733, 27060-0H010, 27060-28110, 27060-28120, 27060-28170, 27060-28180, 102211-2120, 102211-2250, 102211-2380, 102211-2480

    • Normalised article numbler
      a6102, al3304x, alth200, cal40354, dan951, dendan951, dra4274, f032114186, f042205043, f042205072, f042205106, f042a0h200, ja1792ir, 1986a01733, 13957r, 13958n, 13958r, 112732, 209384, 209384a, 270600h010, 284679, 401792ri, 443304, 444230, 12060820, 063377434, 235186902, 0986082770, 1022112120, 1022112250, 1022112380, 1022112480, 2706028110, 2706028120, 2706028170, 2706028180, 063377434010
