Article no.: F032110350

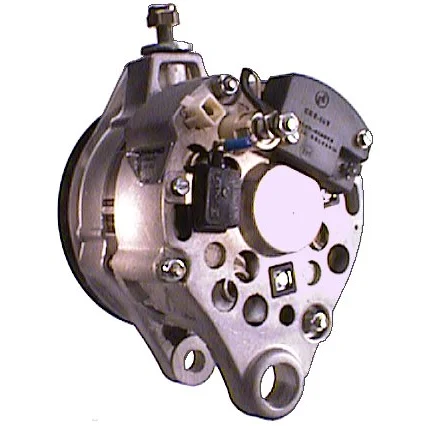

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 44, Rotation: CW, Mount. bracket dist.: 60.50

Description

Voltage: 14
Amp: 44
Pulley distance: 46.50
Width/holder arm: 19.50
Mounting bracket distance: 60.50
Bracket hole: 12.00
Belt adjustment bracket hole position: 60
Pulley diameter: 79.00
Grooves/pulley: 1
Radius: 85.00
B+: M6
Position/B+ in minutes: 55
D+ Size: 6.30
Rotation: CW
Total length mm: 166.00
Pulley: P
Regulator type: IR
Product info: BN
Servicing: Lada

Files

  • OEM
    a124-15, a124-44s, aak4128, als12-81, F032110350, kat3kt22214b, T2214B50A, T22214B50A, 11.201.294, 222-3701005, 222-3701010, 2105-3701005, 2105-3701010, 22214B50A, 19025772, 21053701010, 2105370101010

  • Normalised article numbler
    a12415, a12444s, aak4128, als1281, altl031, cal49100, dra2781, f032110350, f04230c001, f042a0c001, fra112, ia0294, kat3kt22214b, lra00589, lra00915, mg16, qa0263, t2214b50a, t22214b50a, va120, 8el725586001, 3432, 22214b50a, 30131ri, 118146, 280560, 443218, 2232781, 11201294, 19025772, 223101442, 943356380, 0986032781, 0986034390, 0986086990, 2223701005, 2223701010, 21053701005, 21053701010, 2105370101010
  • Description
    Voltage: 14
    Amp: 44
    Pulley distance: 46.50
    Width/holder arm: 19.50
    Mounting bracket distance: 60.50
    Bracket hole: 12.00
    Belt adjustment bracket hole position: 60
    Pulley diameter: 79.00
    Grooves/pulley: 1
    Radius: 85.00
    B+: M6
    Position/B+ in minutes: 55
    D+ Size: 6.30
    Rotation: CW
    Total length mm: 166.00
    Pulley: P
    Regulator type: IR
    Product info: BN
    Servicing: Lada

    Files

  • Suitable for these vehicles

    • OEM
      a124-15, a124-44s, aak4128, als12-81, F032110350, kat3kt22214b, T2214B50A, T22214B50A, 11.201.294, 222-3701005, 222-3701010, 2105-3701005, 2105-3701010, 22214B50A, 19025772, 21053701010, 2105370101010

    • Normalised article numbler
      a12415, a12444s, aak4128, als1281, altl031, cal49100, dra2781, f032110350, f04230c001, f042a0c001, fra112, ia0294, kat3kt22214b, lra00589, lra00915, mg16, qa0263, t2214b50a, t22214b50a, va120, 8el725586001, 3432, 22214b50a, 30131ri, 118146, 280560, 443218, 2232781, 11201294, 19025772, 223101442, 943356380, 0986032781, 0986034390, 0986086990, 2223701005, 2223701010, 21053701005, 21053701010, 2105370101010
