Article no.: F032110471

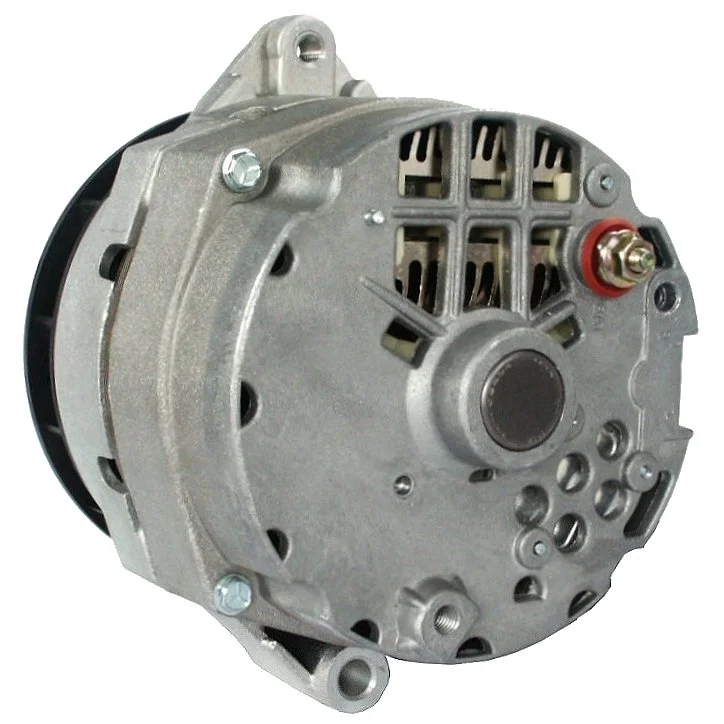

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 94, Rotation: CW, Pulley diameter: 68.60

Description

GM Delco Alternator 12V-94A, 12SI 12V - 94A, 1V, (1-L, 2-S) same Alternator with tachometer output (rpm) = 90-075-0090. For Yourex product order GE-7294

Voltage: 14
Amp: 94
Pulley dist.: 77.00
Width/holder arm: 51.00
Bracket hole: 10.20
Belt. adjust. bracket hole position: 60
Belt. adjust. bracket hole 1: M8
Pulley dia.: 68.60
Grooves/pulley: 1
Radius: 84.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL134
Total length mm: 170.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: American Motors
Remarks: Replacing: 12SI.

Files

  • OEM
    F032110471, GE-7294, RC 48948, RC 48976, RC 48999, 3472USA2, 7294-3, 7294-3N, 110471, 1100200, 1100207, 1100208, 1100209, 1100217, 1100237, 1100239, 1100240, 1100241, 1100242, 1100243, 1100246, 1100247, 1100249, 1100250, 1100251, 1100252, 1100253, 1100255, 1100259, 1100260, 1100261, 1100264, 1100265, 1100266, 1100269, 1100270, 1100272, 1100273, 1100275, 1100276, 1100288, 1100289, 1100290, 1100291, 1100298, 1100299, 1100300, 1101134, 1101157, 1101228, 1101240, 1101241, 1101242, 1101243, 1101244, 1101245, 1101268, 1101279, 1101282, 1101298, 1101299, 1101300, 1101301, 1101304, 1101305, 1101308, 1101324, 1101332, 1101484, 1102358, 1105034, 1105048, 1105402, 1105428, 1105441, 1105442, 1105443, 1105444, 1105445, 1105446, 1105447, 1105449, 1105480, 1105492, 1105493, 1105495, 1105496, 1105506, 1105507, 1105517, 1105536, 1105541, 1105542, 1105543, 1105544, 1105545, 1105547, 1105561, 1105562, 1105565, 1105566, 1105567, 1105568, 1105569, 1105572, 1105581, 1105582, 1105592, 1105602, 1105604, 1105606, 1105629, 1105630, 1105632, 1105634, 1105648, 1105651, 1105654, 10463058, 10495435, 10497079, 0120489830

  • Normalised article numbler
    al547x, al557x, al559x, al6505x, alt1031, alt1032, alt1032b, drz0131, drz0182, f032110471, f042300040, f042300041, f042300042, f042300043, f042a00040, f042a00041, f042a00042, f042a00043, ge7294, rc48948, rc48976, rc48999, 8el732742001, 3472usa2, 5527, 7294, 7294rr, 7830, 7973n, 20105, 20110, 72733, 72739, 72923, 72923n, 72923r, 72929n, 72929r, 72929rr, 72943, 72943n, 72943r, 72946, 72946n, 72946r, 72949, 72949n, 72949r, 78303, 78303n, 78303r, 78303rr, 78309, 78309n, 110471, 282860, 283646, 727312, 729412, 729412n, 1100200, 1100207, 1100208, 1100209, 1100217, 1100237, 1100239, 1100240, 1100241, 1100242, 1100243, 1100246, 1100247, 1100249, 1100250, 1100251, 1100252, 1100253, 1100255, 1100259, 1100260, 1100261, 1100264, 1100265, 1100266, 1100269, 1100270, 1100272, 1100273, 1100275, 1100276, 1100288, 1100289, 1100290, 1100291, 1100298, 1100299, 1100300, 1101134, 1101157, 1101228, 1101240, 1101241, 1101242, 1101243, 1101244, 1101245, 1101268, 1101279, 1101282, 1101298, 1101299, 1101300, 1101301, 1101304, 1101305, 1101308, 1101324, 1101332, 1101484, 1102358, 1105034, 1105048, 1105402, 1105428, 1105441, 1105442, 1105443, 1105444, 1105445, 1105446, 1105447, 1105449, 1105480, 1105492, 1105493, 1105495, 1105496, 1105506, 1105507, 1105517, 1105536, 1105541, 1105542, 1105543, 1105544, 1105545, 1105547, 1105561, 1105562, 1105565, 1105566, 1105567, 1105568, 1105569, 1105572, 1105581, 1105582, 1105592, 1105602, 1105604, 1105606, 1105629, 1105630, 1105632, 1105634, 1105648, 1105651, 1105654, 1173822dr, 1174421dr, 1174522dr, 1174911dr, 1174913dr, 1174914dr, 1174915dr, 1174917dr, 1174921dr, 1174922dr, 1174924dr, 1174926dr, 1174932dr, 1174935dr, 1174936dr, 1174941dr, 1174942dr, 1174943dr, 1174946dr, 1174948dr, 1174949dr, 1175122dr, 1175141dr, 1175220dr, 1175222dr, 1175311dr, 1175320dr, 10463058, 10495435, 10497079, 11749410dr, 32992856, 0120489830, 200122782, 200129912, 835032094
  • Description
    GM Delco Alternator 12V-94A, 12SI 12V - 94A, 1V, (1-L, 2-S) same Alternator with tachometer output (rpm) = 90-075-0090. For Yourex product order GE-7294

    Voltage: 14
    Amp: 94
    Pulley dist.: 77.00
    Width/holder arm: 51.00
    Bracket hole: 10.20
    Belt. adjust. bracket hole position: 60
    Belt. adjust. bracket hole 1: M8
    Pulley dia.: 68.60
    Grooves/pulley: 1
    Radius: 84.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL134
    Total length mm: 170.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: American Motors
    Remarks: Replacing: 12SI.

    Files

  • Suitable for these vehicles

    • OEM
      F032110471, GE-7294, RC 48948, RC 48976, RC 48999, 3472USA2, 7294-3, 7294-3N, 110471, 1100200, 1100207, 1100208, 1100209, 1100217, 1100237, 1100239, 1100240, 1100241, 1100242, 1100243, 1100246, 1100247, 1100249, 1100250, 1100251, 1100252, 1100253, 1100255, 1100259, 1100260, 1100261, 1100264, 1100265, 1100266, 1100269, 1100270, 1100272, 1100273, 1100275, 1100276, 1100288, 1100289, 1100290, 1100291, 1100298, 1100299, 1100300, 1101134, 1101157, 1101228, 1101240, 1101241, 1101242, 1101243, 1101244, 1101245, 1101268, 1101279, 1101282, 1101298, 1101299, 1101300, 1101301, 1101304, 1101305, 1101308, 1101324, 1101332, 1101484, 1102358, 1105034, 1105048, 1105402, 1105428, 1105441, 1105442, 1105443, 1105444, 1105445, 1105446, 1105447, 1105449, 1105480, 1105492, 1105493, 1105495, 1105496, 1105506, 1105507, 1105517, 1105536, 1105541, 1105542, 1105543, 1105544, 1105545, 1105547, 1105561, 1105562, 1105565, 1105566, 1105567, 1105568, 1105569, 1105572, 1105581, 1105582, 1105592, 1105602, 1105604, 1105606, 1105629, 1105630, 1105632, 1105634, 1105648, 1105651, 1105654, 10463058, 10495435, 10497079, 0120489830

    • Normalised article numbler
      al547x, al557x, al559x, al6505x, alt1031, alt1032, alt1032b, drz0131, drz0182, f032110471, f042300040, f042300041, f042300042, f042300043, f042a00040, f042a00041, f042a00042, f042a00043, ge7294, rc48948, rc48976, rc48999, 8el732742001, 3472usa2, 5527, 7294, 7294rr, 7830, 7973n, 20105, 20110, 72733, 72739, 72923, 72923n, 72923r, 72929n, 72929r, 72929rr, 72943, 72943n, 72943r, 72946, 72946n, 72946r, 72949, 72949n, 72949r, 78303, 78303n, 78303r, 78303rr, 78309, 78309n, 110471, 282860, 283646, 727312, 729412, 729412n, 1100200, 1100207, 1100208, 1100209, 1100217, 1100237, 1100239, 1100240, 1100241, 1100242, 1100243, 1100246, 1100247, 1100249, 1100250, 1100251, 1100252, 1100253, 1100255, 1100259, 1100260, 1100261, 1100264, 1100265, 1100266, 1100269, 1100270, 1100272, 1100273, 1100275, 1100276, 1100288, 1100289, 1100290, 1100291, 1100298, 1100299, 1100300, 1101134, 1101157, 1101228, 1101240, 1101241, 1101242, 1101243, 1101244, 1101245, 1101268, 1101279, 1101282, 1101298, 1101299, 1101300, 1101301, 1101304, 1101305, 1101308, 1101324, 1101332, 1101484, 1102358, 1105034, 1105048, 1105402, 1105428, 1105441, 1105442, 1105443, 1105444, 1105445, 1105446, 1105447, 1105449, 1105480, 1105492, 1105493, 1105495, 1105496, 1105506, 1105507, 1105517, 1105536, 1105541, 1105542, 1105543, 1105544, 1105545, 1105547, 1105561, 1105562, 1105565, 1105566, 1105567, 1105568, 1105569, 1105572, 1105581, 1105582, 1105592, 1105602, 1105604, 1105606, 1105629, 1105630, 1105632, 1105634, 1105648, 1105651, 1105654, 1173822dr, 1174421dr, 1174522dr, 1174911dr, 1174913dr, 1174914dr, 1174915dr, 1174917dr, 1174921dr, 1174922dr, 1174924dr, 1174926dr, 1174932dr, 1174935dr, 1174936dr, 1174941dr, 1174942dr, 1174943dr, 1174946dr, 1174948dr, 1174949dr, 1175122dr, 1175141dr, 1175220dr, 1175222dr, 1175311dr, 1175320dr, 10463058, 10495435, 10497079, 11749410dr, 32992856, 0120489830, 200122782, 200129912, 835032094
