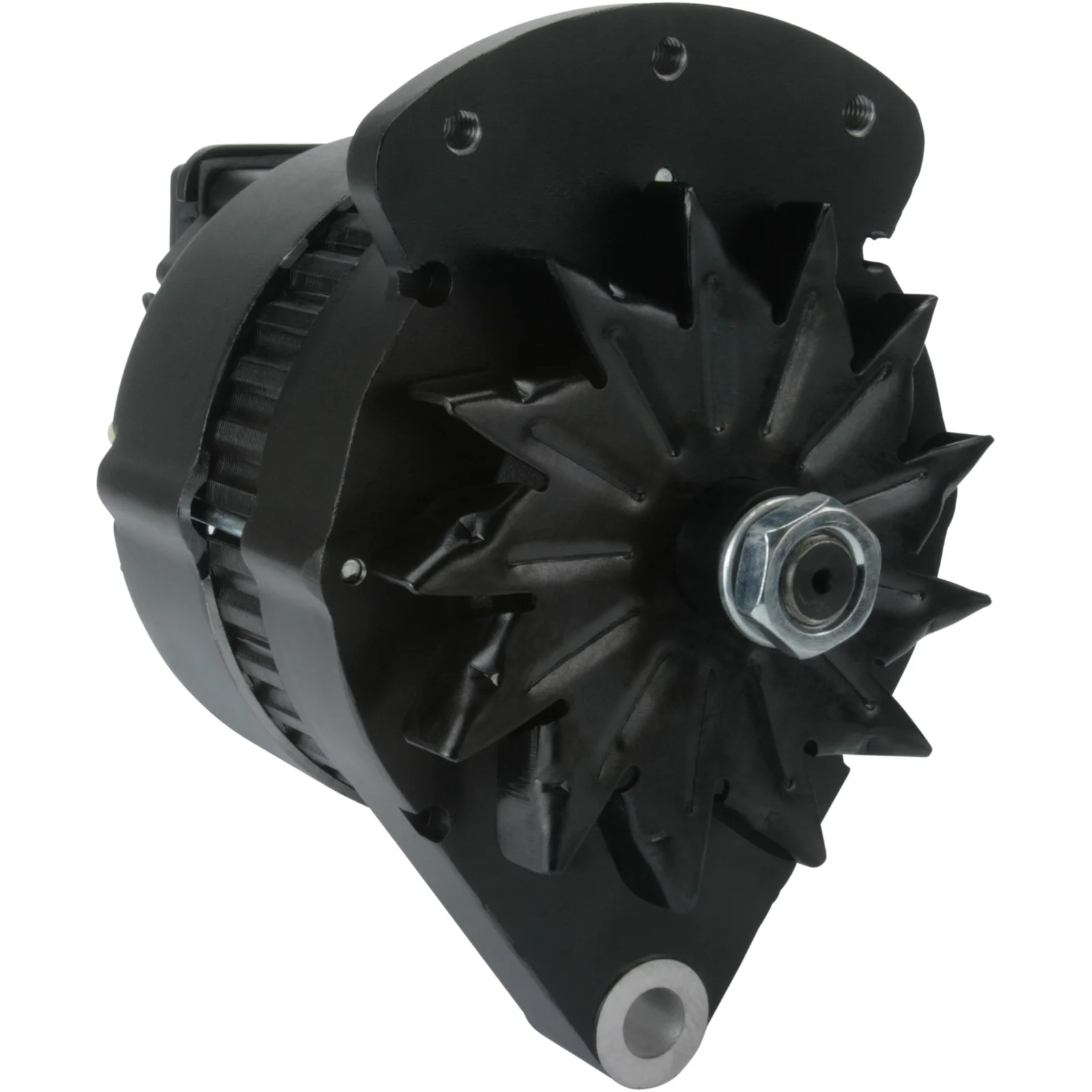

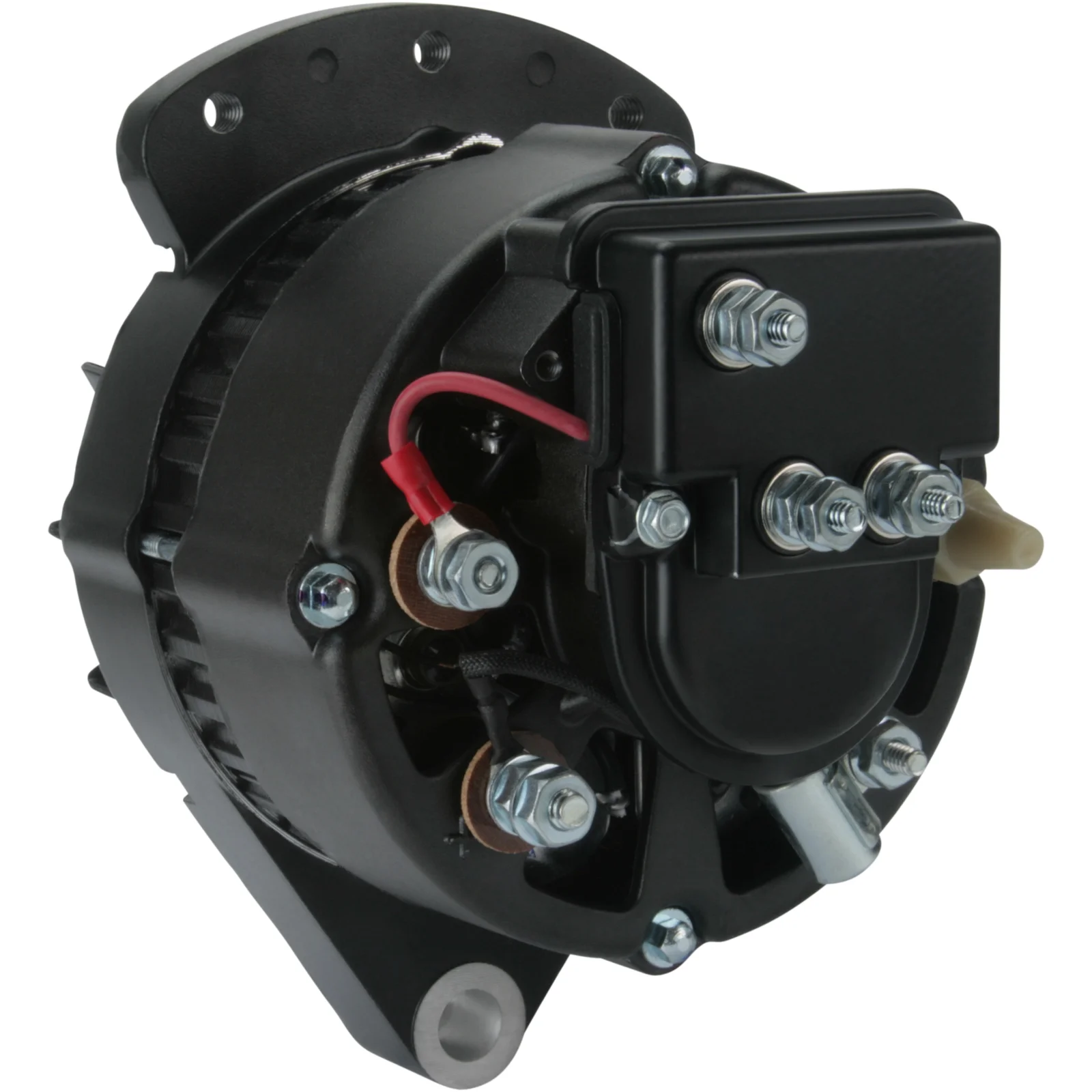

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110488

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 65, Rotation: CW, Radius: 80.50

Description

Voltage: 14
Amp: 65
Width/holder arm: 27.00
Bracket hole: 13.00
Belt. adj. bracket hole pos.: 50
Belt. adj. bracket hole pos. 3: 5
Belt. adj. bracket hole pos. 2: 60
Belt. adj. bracket hole 1: 5/16" UNC
Belt. adj. bracket hole 2: 5/16" UNC
Belt. adj. bracket hole 3: 5/16" UNC
Radius: 80.50
Radius 2: 80.50
Radius 3: 80.50
Radius 4: 90.00
B+: 1/4" UNF
Position/B+ in min.: 40
D+ Size: 1/4" UNF
Rotation: clockwise
Total length mm: 178.00
Pulley: without
Regulator type: IR
Prod. info: BN
Servicing: Thermo King

Files

  • OEM
    F032110488, ua935ir, 2d72787g01, 2d72787g02, 3d97387g01, 3d97387g02, 5d35742g01, 5d35742g02, 5d35742g03, 5D44467G01, 8ek2005na, 8ek2005nb, 8ek2005nc, 8ek2005nd, 8ek2007na, 8ek2007nb, 8ek2007nc, 8EK2007ND, 8ek2010na, 8ek2010nb, 8EK2010NC, 8ek2012nb, 8mr2185l, 44-7156, 44-7927, 44-8904, 44-8940, 44-9753, 44-9755, 110-400, 110-600, 110633, 3675147rx

  • Normalised article numbler
    a9225, alt32001, cal11105, drz0121, f032110488, lra02111, ua935ir, 2d72787g01, 2d72787g02, 3d97387g01, 3d97387g02, 5d35742g01, 5d35742g02, 5d35742g03, 5d44467g01, 8ek2005na, 8ek2005nb, 8ek2005nc, 8ek2005nd, 8ek2007na, 8ek2007nb, 8ek2007nc, 8ek2007nd, 8ek2010na, 8ek2010nb, 8ek2010nc, 8ek2012nb, 8el730151001, 8mr2185l, 5507, 7480, 7481, 8428n, 50935ri, 53008, 110400, 110600, 110633, 284551, 447156, 447927, 448904, 448940, 449753, 449755, 3675147rx, 32118708, 90059149, 573108652, 995001065
  • Description
    Voltage: 14
    Amp: 65
    Width/holder arm: 27.00
    Bracket hole: 13.00
    Belt. adj. bracket hole pos.: 50
    Belt. adj. bracket hole pos. 3: 5
    Belt. adj. bracket hole pos. 2: 60
    Belt. adj. bracket hole 1: 5/16" UNC
    Belt. adj. bracket hole 2: 5/16" UNC
    Belt. adj. bracket hole 3: 5/16" UNC
    Radius: 80.50
    Radius 2: 80.50
    Radius 3: 80.50
    Radius 4: 90.00
    B+: 1/4" UNF
    Position/B+ in min.: 40
    D+ Size: 1/4" UNF
    Rotation: clockwise
    Total length mm: 178.00
    Pulley: without
    Regulator type: IR
    Prod. info: BN
    Servicing: Thermo King

    Files

  • Suitable for these vehicles

    • OEM
      F032110488, ua935ir, 2d72787g01, 2d72787g02, 3d97387g01, 3d97387g02, 5d35742g01, 5d35742g02, 5d35742g03, 5D44467G01, 8ek2005na, 8ek2005nb, 8ek2005nc, 8ek2005nd, 8ek2007na, 8ek2007nb, 8ek2007nc, 8EK2007ND, 8ek2010na, 8ek2010nb, 8EK2010NC, 8ek2012nb, 8mr2185l, 44-7156, 44-7927, 44-8904, 44-8940, 44-9753, 44-9755, 110-400, 110-600, 110633, 3675147rx

    • Normalised article numbler
      a9225, alt32001, cal11105, drz0121, f032110488, lra02111, ua935ir, 2d72787g01, 2d72787g02, 3d97387g01, 3d97387g02, 5d35742g01, 5d35742g02, 5d35742g03, 5d44467g01, 8ek2005na, 8ek2005nb, 8ek2005nc, 8ek2005nd, 8ek2007na, 8ek2007nb, 8ek2007nc, 8ek2007nd, 8ek2010na, 8ek2010nb, 8ek2010nc, 8ek2012nb, 8el730151001, 8mr2185l, 5507, 7480, 7481, 8428n, 50935ri, 53008, 110400, 110600, 110633, 284551, 447156, 447927, 448904, 448940, 449753, 449755, 3675147rx, 32118708, 90059149, 573108652, 995001065
