HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110502

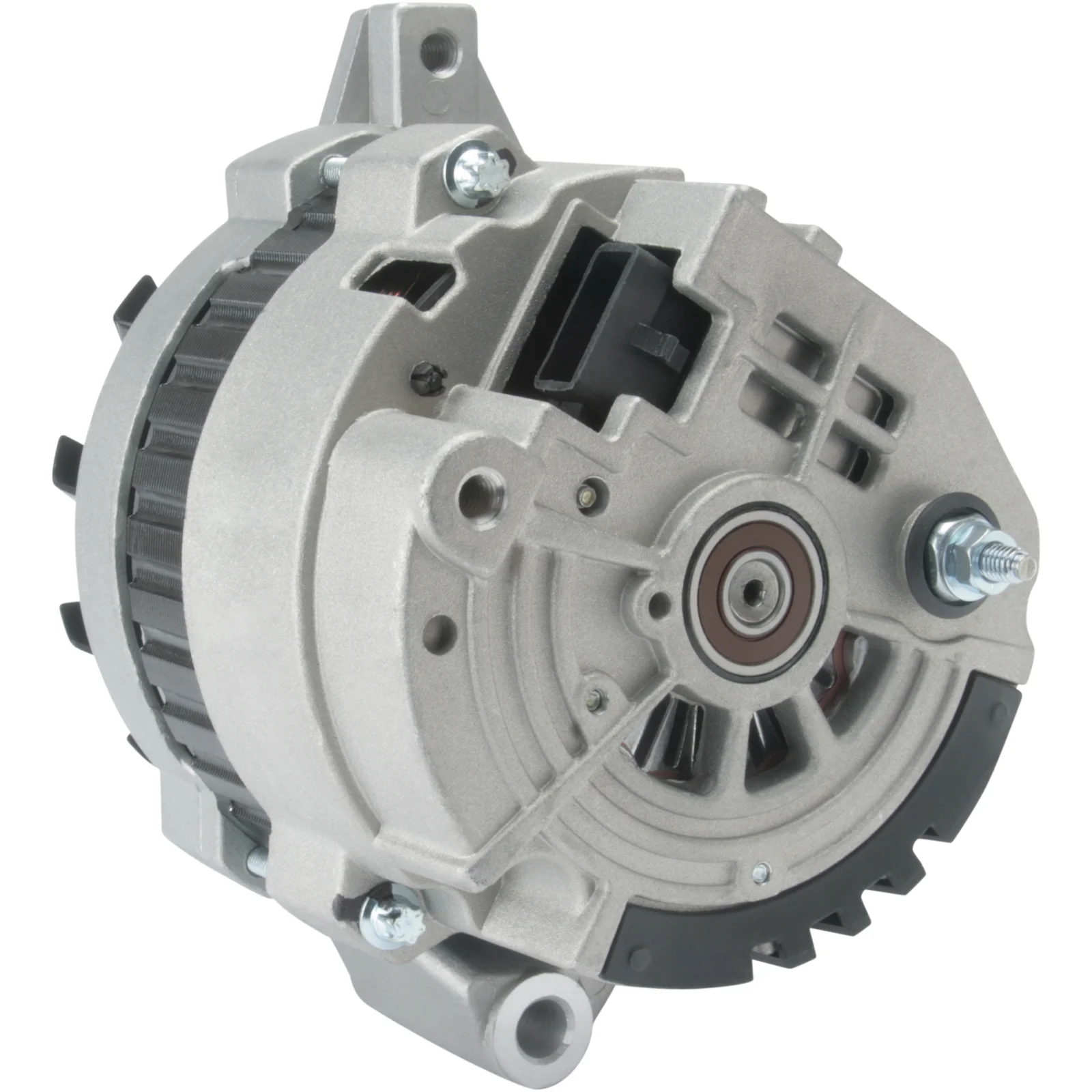

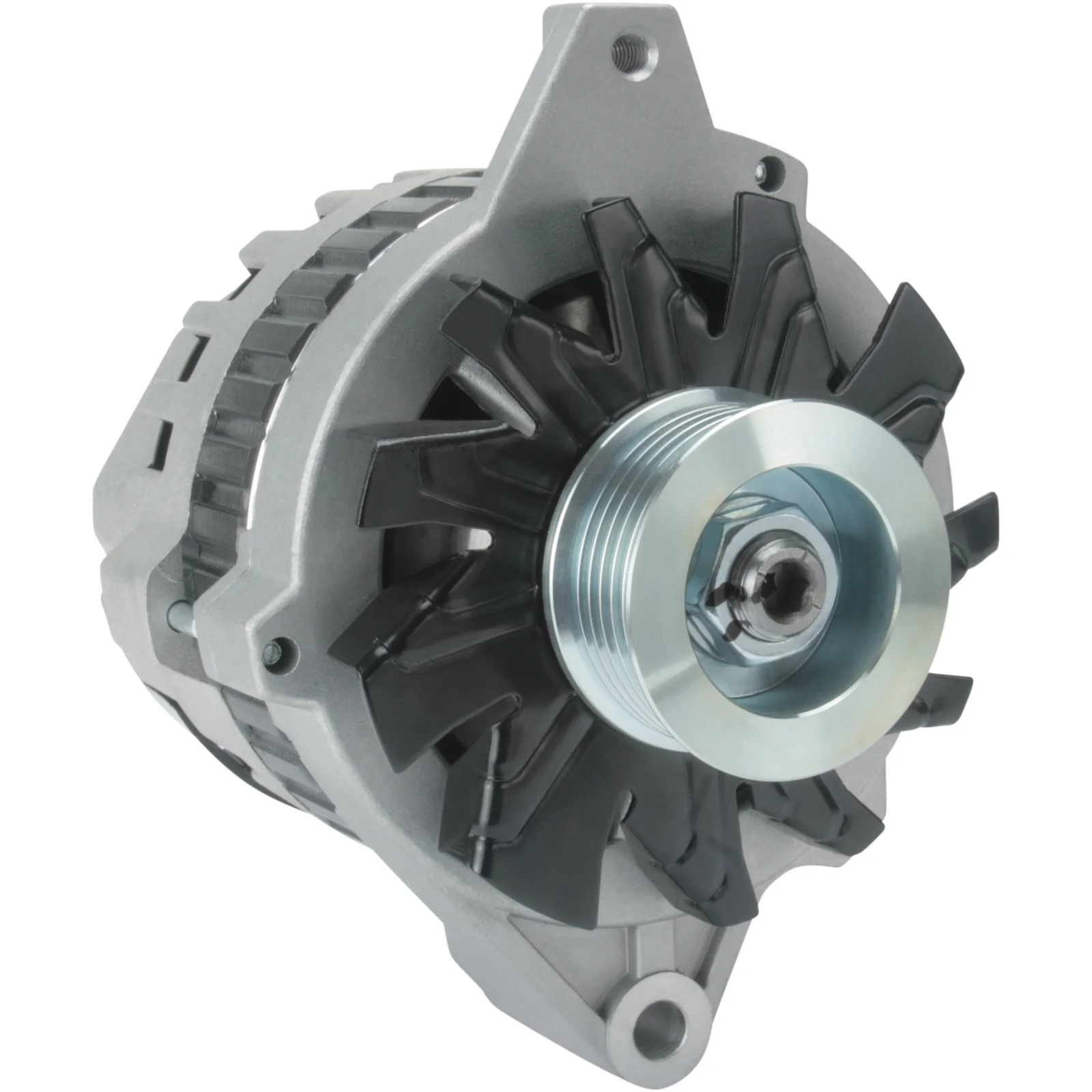

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 100/105, Rotation: CW, Pulley diameter.: 55.50

Description

Voltage: 14
Amp: 100/105
Pulley carrier: 73.00
Width/holder arm: 50.50
Bracket hole: 10.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 55.50
Grooves/pulley: 6
Radius: 83.00
Radius 2: 83.00
B+: M6
Position/B+ in minutes: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Buick
Remarks: Replacing: CS130.

Files

  • OEM
    F032110502, 1101806, 1105677, 1105678, 10463419, 10480088, 10497122, 10497145

  • Normalised article numbler
    al551x, al650x, alt1322b, drz0131, drz0161, f032110502, f042300113, f042a00113, 8el730157001, 5513, 7804n, 7804r, 7977n, 78027, 78027n, 78027r, 780411, 797711, 1101806, 1105677, 1105678, 1163432dr, 1165232dr, 2014830, 2014831, 2018432, 10463419, 10480088, 10497122, 10497145, 32992862, 5281201052
  • Description
    Voltage: 14
    Amp: 100/105
    Pulley carrier: 73.00
    Width/holder arm: 50.50
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 55.50
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in minutes: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Total length mm: 170.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Buick
    Remarks: Replacing: CS130.

    Files

  • Suitable for these vehicles

    • OEM
      F032110502, 1101806, 1105677, 1105678, 10463419, 10480088, 10497122, 10497145

    • Normalised article numbler
      al551x, al650x, alt1322b, drz0131, drz0161, f032110502, f042300113, f042a00113, 8el730157001, 5513, 7804n, 7804r, 7977n, 78027, 78027n, 78027r, 780411, 797711, 1101806, 1105677, 1105678, 1163432dr, 1165232dr, 2014830, 2014831, 2018432, 10463419, 10480088, 10497122, 10497145, 32992862, 5281201052
