Article no.: F032110620

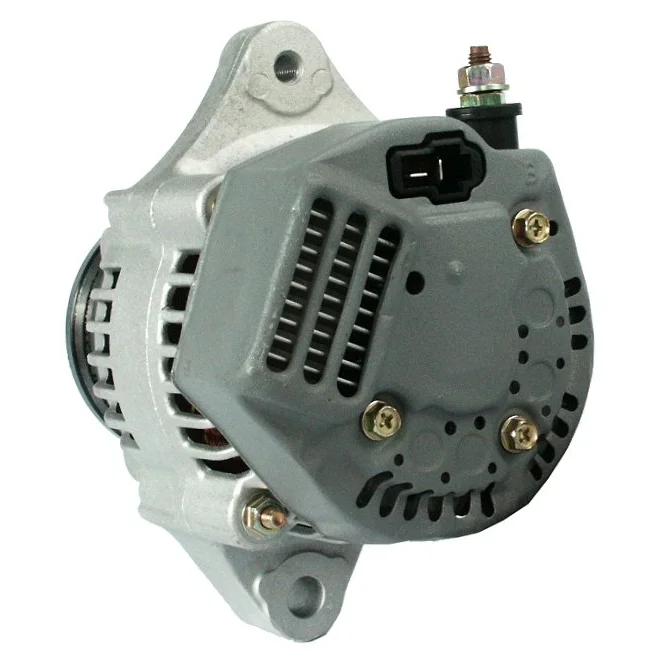

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 35, Rotation: CW, Pulley diameter: 74.70

Description

Voltage: 14
Amp: 35
Pulley dist.: 44.00
Width/holder arm: 23.50
Bracket hole: 10.20
Belt. adj. bracket hole position.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.70
Grooves/pulley: 1
Radius: 69.50
Radius 2: 66.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 143.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Kubota

Files

  • OEM
    am877740, F032110620, ja971ir, MIA884637, RE42778, re72915, 16771-64010, 16771-64012, 17580-64012, 27060-78001, 27060-78001-71, 27060-96001, 100211-1660, 100211-1661, 100211-1662, 100211-4530, 100211-4531, 100211-4700, 100211-4701, 101211-1070, 102211-5350, 119620-77201, 119620-77202, 501824

  • Normalised article numbler
    a6022, a6022r, a6363, alt30004, alt5305, alt5306, am877740, cal40100, cal40248, cal40a12, dan2040, dra3453, dra6641, dra7271, f032110620, f042302116, f042302117, f042302165, f042a02116, f042a02165, ja971ir, lra01980, lra02615, lrb00344, mia884637, re42778, re72915, 8el732736001, 2212, 2335, 3204r, 5461, 12080, 12080n, 12080r, 12180, 12180secn, 12180sen, 12188, 12188n, 12188r, 12196n, 12206n, 40971ri, 119093, 280934, 281503, 283881, 501824, 554432ri, 1211911hd, 1211911nd, 1233501nd, 9212976, 12060564, 535103352, 985503040, 0986036641, 1002111660, 1002111661, 1002111662, 1002114530, 1002114531, 1002114700, 1002114701, 1012111070, 1022115350, 1677164010, 1677164012, 1758064012, 2706078001, 2706096001, 11962077201, 11962077202, 270607800171
  • Description
    Voltage: 14
    Amp: 35
    Pulley dist.: 44.00
    Width/holder arm: 23.50
    Bracket hole: 10.20
    Belt. adj. bracket hole position.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.70
    Grooves/pulley: 1
    Radius: 69.50
    Radius 2: 66.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 143.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Kubota

    Files

  • Suitable for these vehicles

    • OEM
      am877740, F032110620, ja971ir, MIA884637, RE42778, re72915, 16771-64010, 16771-64012, 17580-64012, 27060-78001, 27060-78001-71, 27060-96001, 100211-1660, 100211-1661, 100211-1662, 100211-4530, 100211-4531, 100211-4700, 100211-4701, 101211-1070, 102211-5350, 119620-77201, 119620-77202, 501824

    • Normalised article numbler
      a6022, a6022r, a6363, alt30004, alt5305, alt5306, am877740, cal40100, cal40248, cal40a12, dan2040, dra3453, dra6641, dra7271, f032110620, f042302116, f042302117, f042302165, f042a02116, f042a02165, ja971ir, lra01980, lra02615, lrb00344, mia884637, re42778, re72915, 8el732736001, 2212, 2335, 3204r, 5461, 12080, 12080n, 12080r, 12180, 12180secn, 12180sen, 12188, 12188n, 12188r, 12196n, 12206n, 40971ri, 119093, 280934, 281503, 283881, 501824, 554432ri, 1211911hd, 1211911nd, 1233501nd, 9212976, 12060564, 535103352, 985503040, 0986036641, 1002111660, 1002111661, 1002111662, 1002114530, 1002114531, 1002114700, 1002114701, 1012111070, 1022115350, 1677164010, 1677164012, 1758064012, 2706078001, 2706096001, 11962077201, 11962077202, 270607800171
