Article no.: F032110621

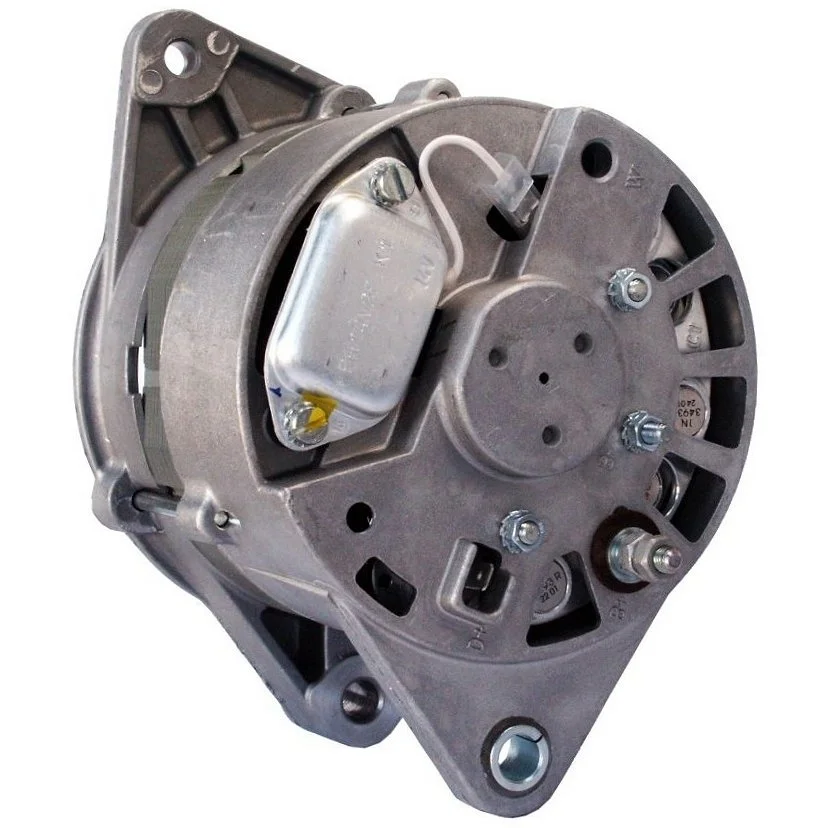

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 55, Rotation: CW, Mounting bracket distributor: 66.00

Description

Voltage: 14
Amp: 55
Pulley dist.: 52.50
Width/holder arm: 27.00
Mount. bracket dist.: 66.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 74.00
Grooves/pulley: 2
Radius: 85.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 25
D+ Size: 6.30
Rotation: CW
Total length mm: 174.00
Alternator: DP
Fan: EF
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032110621, 9516650, 9516653, 334113516653, 443113516650, 443113516653

  • Normalised article numbler
    alt31001, f032110621, 8el731721001, 5275, 12367, 21035nd, 30860ri, 281957, 9516650, 9516653, 512101552, 334113516653, 443113516650, 443113516653
  • Description
    Voltage: 14
    Amp: 55
    Pulley dist.: 52.50
    Width/holder arm: 27.00
    Mount. bracket dist.: 66.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: 10.30
    Pulley dia.: 74.00
    Grooves/pulley: 2
    Radius: 85.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 25
    D+ Size: 6.30
    Rotation: CW
    Total length mm: 174.00
    Alternator: DP
    Fan: EF
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032110621, 9516650, 9516653, 334113516653, 443113516650, 443113516653

    • Normalised article numbler
      alt31001, f032110621, 8el731721001, 5275, 12367, 21035nd, 30860ri, 281957, 9516650, 9516653, 512101552, 334113516653, 443113516650, 443113516653
