HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110629

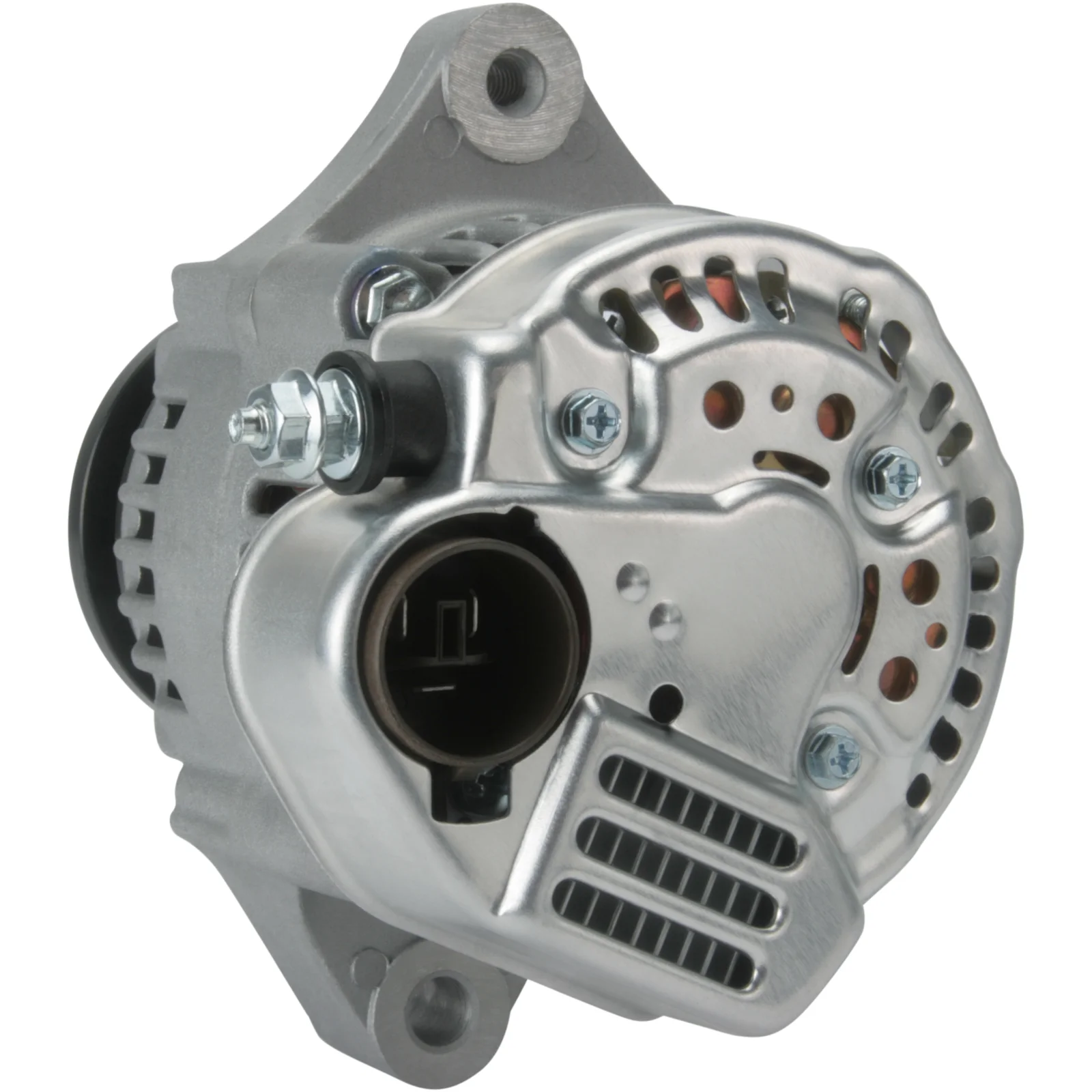

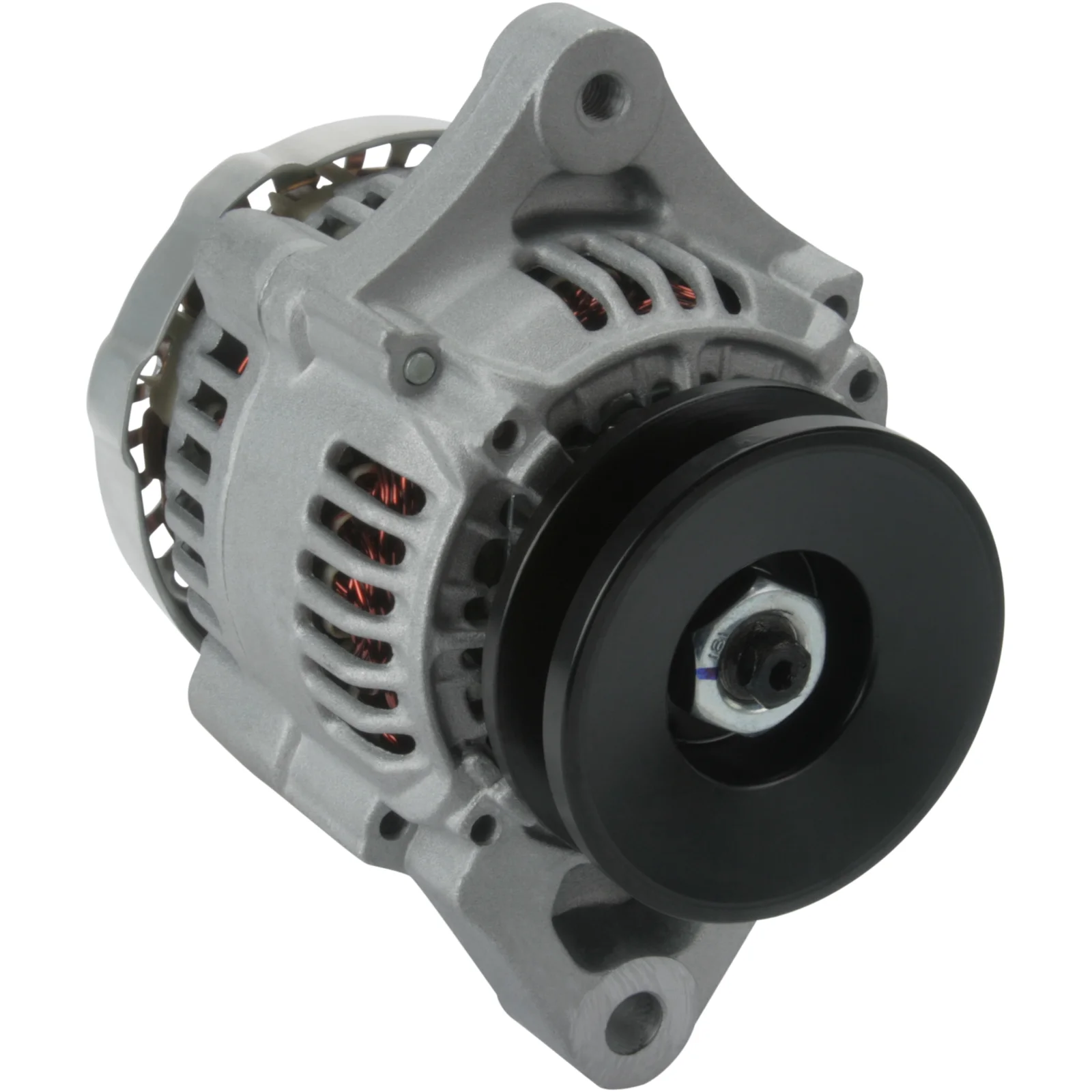

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 35, Rotation: CW, Pulley diameter: 74.50

Description

Voltage: 14
Amps: 35
Pulley dist.: 44.00
Width/holder arm: 24.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley diameter: 74.50
Grooves/pulley: 1
Radius: 68.50
Radius 2: 65.50
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 143.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032110629, ja970ir, 27060-78003-71, 100211-4540

  • Normalised article numbler
    a6392s, a8282, alt30005, alt5301p, and0168, at00122r, cal40138, dra3519, dra3519n, f032110629, f042302109, f042302110, f042a02109, f042a02110, ja970ir, lra01719, 8el732735001, 5460, 12187, 12187n, 12187r, 12187secn, 12187sen, 21624, 40970ri, 282982, 1213201nd, 12060565, 20140102, 32118804, 90295181, 535104352, 1002114540, 270607800371
  • Description
    Voltage: 14
    Amps: 35
    Pulley dist.: 44.00
    Width/holder arm: 24.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 74.50
    Grooves/pulley: 1
    Radius: 68.50
    Radius 2: 65.50
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 143.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032110629, ja970ir, 27060-78003-71, 100211-4540

    • Normalised article numbler
      a6392s, a8282, alt30005, alt5301p, and0168, at00122r, cal40138, dra3519, dra3519n, f032110629, f042302109, f042302110, f042a02109, f042a02110, ja970ir, lra01719, 8el732735001, 5460, 12187, 12187n, 12187r, 12187secn, 12187sen, 21624, 40970ri, 282982, 1213201nd, 12060565, 20140102, 32118804, 90295181, 535104352, 1002114540, 270607800371
