Article no.: F032110701

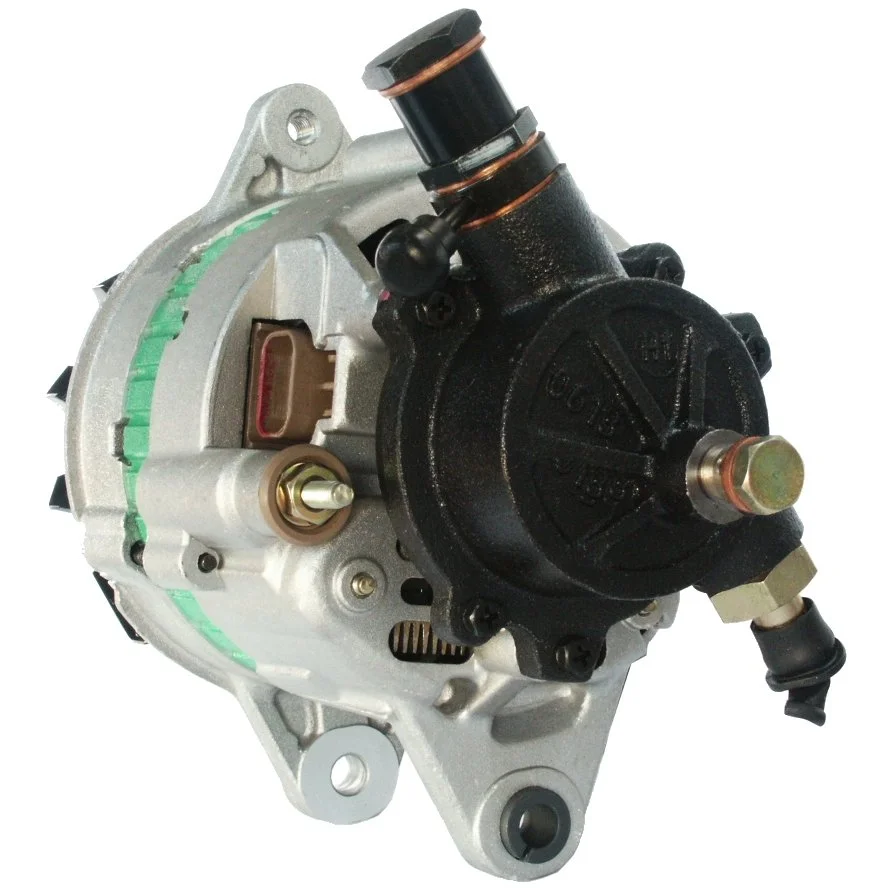

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 50, Rotation: CW, Mounting bracket dist.: 80.50

Description

Voltage: 14
Amp: 50
Pulley dis.: 41.80
Width/holder arm: 13.30
Mount. bracket dis.: 80.50
Bracket hole: 10.40
Belt. adj. brackethole position.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 86.00
Grooves/pulley: 2
Radius: 88.50
Radius 2: 84.00
B+: M6
Position/B+ in min.: 43
Rotation: CW
Plug no.: PL07
Total length mm: 258.00
Pulley: DP
Voltage regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Nissan

Files

  • OEM
    F032110701, ja185ir, lr150-430, lr150-430c, lr150-430s, lr150-430t, lr150-435, lr150-435s, lr150-435t, 23100-02n12, 23100-02n16, 23100-02n20, 23100-11t10, 23100-11t13

  • Normalised article numbler
    altv036, cal20112, dra3215, dra3215n, f032110701, ja185ir, lr150430, lr150430c, lr150430s, lr150430t, lr150435, lr150435s, lr150435t, lra02614, lrb00342, mg491, qa1922, 8el726330001, 3391, 22296r, 40185ri, 56433, 56448, 111077, 119107, 210135, 210135a, 281500, 281940, 437777, 2310002n12, 2310002n16, 2310002n20, 2310011t10, 2310011t13, 2851143, 9051160, 12060275, 20404080, 227112502, 227140502, 0986038501, 943354024010, 944390511600
  • Description
    Voltage: 14
    Amp: 50
    Pulley dis.: 41.80
    Width/holder arm: 13.30
    Mount. bracket dis.: 80.50
    Bracket hole: 10.40
    Belt. adj. brackethole position.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 86.00
    Grooves/pulley: 2
    Radius: 88.50
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 43
    Rotation: CW
    Plug no.: PL07
    Total length mm: 258.00
    Pulley: DP
    Voltage regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      F032110701, ja185ir, lr150-430, lr150-430c, lr150-430s, lr150-430t, lr150-435, lr150-435s, lr150-435t, 23100-02n12, 23100-02n16, 23100-02n20, 23100-11t10, 23100-11t13

    • Normalised article numbler
      altv036, cal20112, dra3215, dra3215n, f032110701, ja185ir, lr150430, lr150430c, lr150430s, lr150430t, lr150435, lr150435s, lr150435t, lra02614, lrb00342, mg491, qa1922, 8el726330001, 3391, 22296r, 40185ri, 56433, 56448, 111077, 119107, 210135, 210135a, 281500, 281940, 437777, 2310002n12, 2310002n16, 2310002n20, 2310011t10, 2310011t13, 2851143, 9051160, 12060275, 20404080, 227112502, 227140502, 0986038501, 943354024010, 944390511600
