Article no.: F032110976

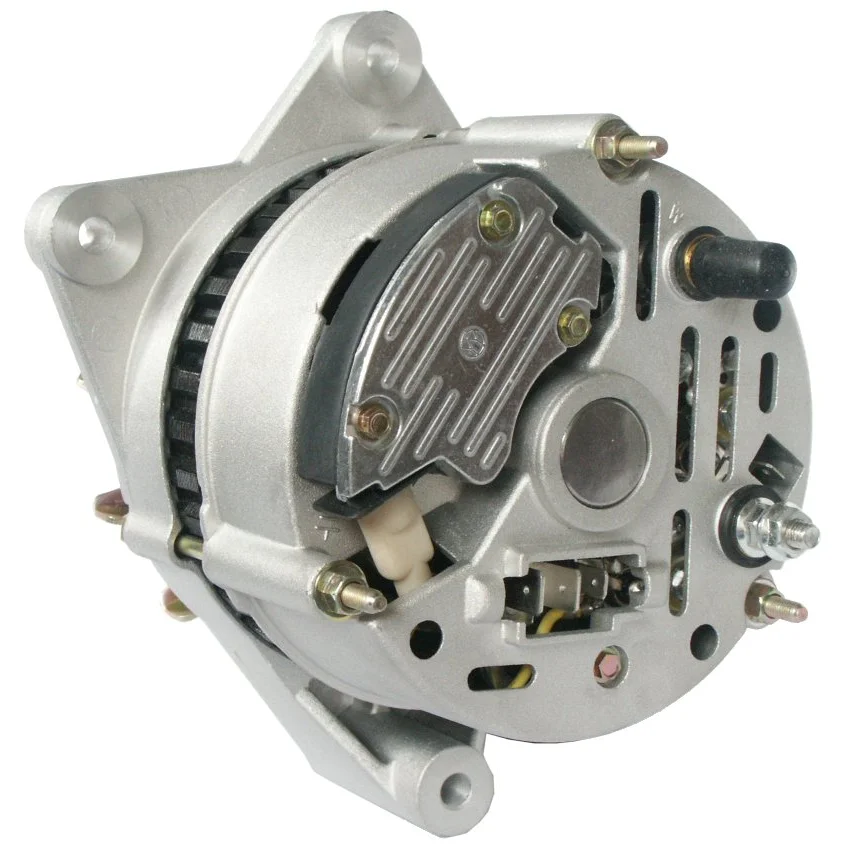

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Radius: 85.00

Description

Voltage: 14
Amp: 65
Terminal: W
Width/holder arm: 56.00
Bracket hole: 8.30
Belt. adj. bracket hole position: 50
Belt. adjust. bracket hole position 3: 10
Belt. adjust. bracket hole position 2: 60
Belt. adjust. bracket hole 1: 8.30
Belt. adjust. bracket hole 2: 8.30
Belt. adjust. bracket hole 3: 8.30
Grooves/pulley: 1
Radius: 85.00
Radius 2: 86.50
Radius 3: 86.00
Radius 4: 86.50
B+: M6
Position/B+ in minutes: 22
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 168.00
Pulley: P
Regulator type: IR
Prod. info: BN
Info: Not insulated return
Remarks: w/ mounting bearing bracket for left and right engine side. Universal Alternator.

Files

  • OEM
    F032110976, nab902, nab904

  • Normalised article numbler
    cal11122, f032110976, nab902, nab904, 8el737672001, 8el737698001, 5774, 5790, 12746noe, 301467ri, 301479ri, 66021153, 66021160, 66021485, 635014070
  • Description
    Voltage: 14
    Amp: 65
    Terminal: W
    Width/holder arm: 56.00
    Bracket hole: 8.30
    Belt. adj. bracket hole position: 50
    Belt. adjust. bracket hole position 3: 10
    Belt. adjust. bracket hole position 2: 60
    Belt. adjust. bracket hole 1: 8.30
    Belt. adjust. bracket hole 2: 8.30
    Belt. adjust. bracket hole 3: 8.30
    Grooves/pulley: 1
    Radius: 85.00
    Radius 2: 86.50
    Radius 3: 86.00
    Radius 4: 86.50
    B+: M6
    Position/B+ in minutes: 22
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 168.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Info: Not insulated return
    Remarks: w/ mounting bearing bracket for left and right engine side. Universal Alternator.

    Files

  • Suitable for these vehicles

    • OEM
      F032110976, nab902, nab904

    • Normalised article numbler
      cal11122, f032110976, nab902, nab904, 8el737672001, 8el737698001, 5774, 5790, 12746noe, 301467ri, 301479ri, 66021153, 66021160, 66021485, 635014070
