Article no.: F032110984

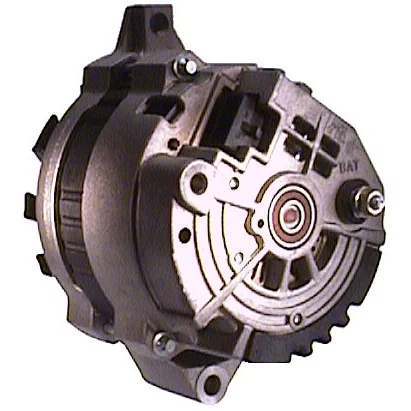

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100/105, Rotation: CW, Radius: 84.00

Description

Voltage: 14
Amp: 100/105
Width/holder arm: 50.70
Bracket hole: 10.20
Belt. adjust. bracket hole position: 60
Belt. adjust. bracket hole 1: M8
Radius: 84.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Pulley: without
Voltage regulator type: IR
Production info: BN
Servicing: Buick
Remarks: Replacing: Alternator CS130.

Files

  • OEM
    F032110984, ua953ir, 321-431, 1101571, 1101634, 1101635, 1101636, 1101814, 1102629, 1102630, 1102631, 1105661, 1105689, 10463097, 10463186, 10479874, 10479883, 10480092, 10480093

  • Normalised article numbler
    a1327, a185611, al662x, al8659x, alt1307c, drz0168, drz0169, f032110984, f042300093, f042300129, f042a00093, f042a00129, ua953ir, 8el730169001, 5525, 7960n, 7960r, 7977r, 50953ri, 78023, 78023n, 78023r, 79603r, 281979, 321431, 780211, 780211n1g, 780211n5g, 780211n6g, 780211r1g, 780211r6g, 789011, 816711n, 816711r, 1101571, 1101634, 1101635, 1101636, 1101814, 1102629, 1102630, 1102631, 1105661, 1105689, 1163935dr, 1164031dr, 1164035dr, 1165231dr, 1189513dr, 2015210, 2015230, 2015232, 2015233, 2018430, 2018431, 10463097, 10463140, 10463186, 10479874, 10479883, 10480092, 10480093, 20152321, 90014067, 5281221002, 5281261002
  • Description
    Voltage: 14
    Amp: 100/105
    Width/holder arm: 50.70
    Bracket hole: 10.20
    Belt. adjust. bracket hole position: 60
    Belt. adjust. bracket hole 1: M8
    Radius: 84.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Pulley: without
    Voltage regulator type: IR
    Production info: BN
    Servicing: Buick
    Remarks: Replacing: Alternator CS130.

    Files

  • Suitable for these vehicles

    • OEM
      F032110984, ua953ir, 321-431, 1101571, 1101634, 1101635, 1101636, 1101814, 1102629, 1102630, 1102631, 1105661, 1105689, 10463097, 10463186, 10479874, 10479883, 10480092, 10480093

    • Normalised article numbler
      a1327, a185611, al662x, al8659x, alt1307c, drz0168, drz0169, f032110984, f042300093, f042300129, f042a00093, f042a00129, ua953ir, 8el730169001, 5525, 7960n, 7960r, 7977r, 50953ri, 78023, 78023n, 78023r, 79603r, 281979, 321431, 780211, 780211n1g, 780211n5g, 780211n6g, 780211r1g, 780211r6g, 789011, 816711n, 816711r, 1101571, 1101634, 1101635, 1101636, 1101814, 1102629, 1102630, 1102631, 1105661, 1105689, 1163935dr, 1164031dr, 1164035dr, 1165231dr, 1189513dr, 2015210, 2015230, 2015232, 2015233, 2018430, 2018431, 10463097, 10463140, 10463186, 10479874, 10479883, 10480092, 10480093, 20152321, 90014067, 5281221002, 5281261002
