Article no.: F032110986

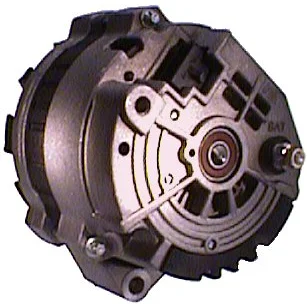

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100/105, Rotation: CW, Pulley diameter: 55.70

Description

Voltage: 14
Amp: 100/105
Pulley dist.: 73.00
Width/holder arm: 50.80
Bracket hole: 10.20
Belt. adj. bracket hole pos.: 50
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 55.70
Grooves/pulley: 6
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Total length mm: 174.00
Pulley: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Jeep
Remarks: Replacing: Alternator CS130.

Files

  • OEM
    F032110986, JR775126, ua923ir, 1101167, 1101170, 10463035, 10463036, 10463037, 10463041, 53002898

  • Normalised article numbler
    al653x, alt1315c, alt40020, cal60100, drz0109, f032110986, f042300105, f042a00105, jr775126, lra01525, lra02090, ua923ir, 8el730139001, 5495, 7873, 7902n, 7902r, 56257, 56356, 282604, 284530, 789711, 790211, 1101167, 1101170, 1164531dr, 1164631dr, 2017030, 2017031, 9090036, 10463035, 10463036, 10463037, 10463041, 12090014, 20170311, 32118508, 53002898, 570102852, 835049100, 5700021002, 5701021002
  • Description
    Voltage: 14
    Amp: 100/105
    Pulley dist.: 73.00
    Width/holder arm: 50.80
    Bracket hole: 10.20
    Belt. adj. bracket hole pos.: 50
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 55.70
    Grooves/pulley: 6
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Total length mm: 174.00
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Jeep
    Remarks: Replacing: Alternator CS130.

    Files

  • Suitable for these vehicles

    • OEM
      F032110986, JR775126, ua923ir, 1101167, 1101170, 10463035, 10463036, 10463037, 10463041, 53002898

    • Normalised article numbler
      al653x, alt1315c, alt40020, cal60100, drz0109, f032110986, f042300105, f042a00105, jr775126, lra01525, lra02090, ua923ir, 8el730139001, 5495, 7873, 7902n, 7902r, 56257, 56356, 282604, 284530, 789711, 790211, 1101167, 1101170, 1164531dr, 1164631dr, 2017030, 2017031, 9090036, 10463035, 10463036, 10463037, 10463041, 12090014, 20170311, 32118508, 53002898, 570102852, 835049100, 5700021002, 5701021002
