Article no.: F032111018

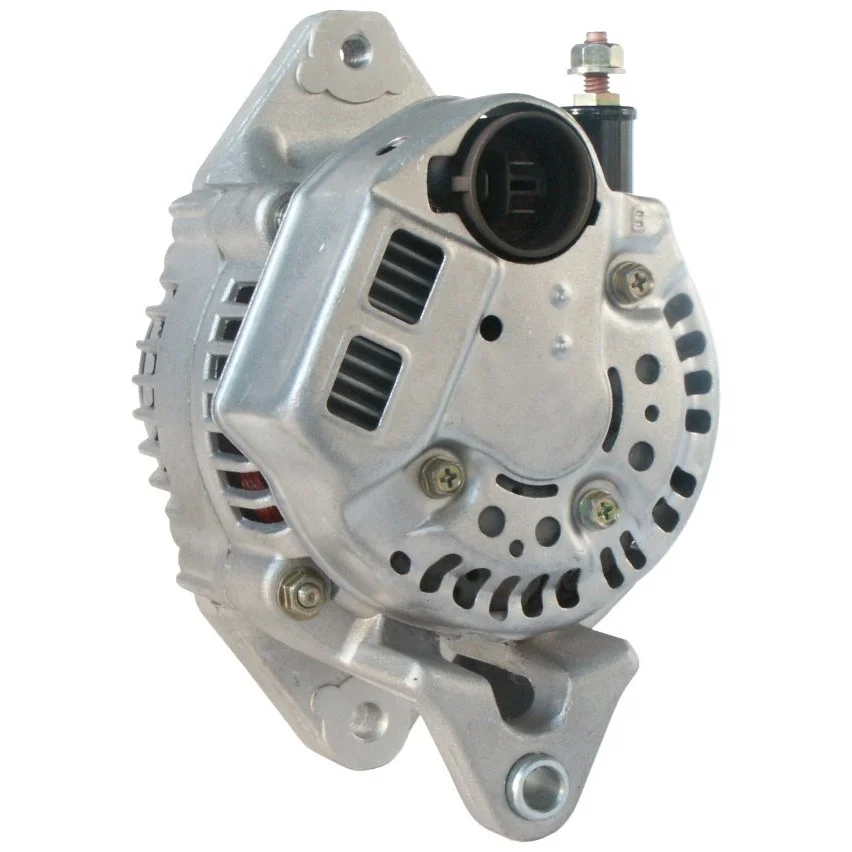

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 50, Rotation: clockwise, Mounting bracket distributor: 67.00

Description

Voltage: 14
Amp: 50
Pulley dist.: 44.00
Width/holder arm: 20.00
Mount. bracket dist.: 67.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.20
Grooves/pulley: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 156.50
Pulley: P
Fan: IF
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032111018, ja1170ir, 27060-76305, 27060-78305, 27060-78305-71, 27070-23001-71, 100211-6930, 100211-6931, 100211-6960, 100211-6961, 100211-6970, 100211-6971

  • Normalised article numbler
    a6648s, alt5094, aza416, cal40202, cal40203, f032111018, f042302068, f042a02068, ja1170ir, lra01697, lra01934, 8el737225001, 5642, 12183, 12184, 12184n, 12185, 12185n, 56255, 282939, 283824, 401170ri, 1243901nd, 12060575, 535110402, 535110502, 1002116930, 1002116931, 1002116960, 1002116961, 1002116970, 1002116971, 2706076305, 2706078305, 270607830571, 270702300171
  • Description
    Voltage: 14
    Amp: 50
    Pulley dist.: 44.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 67.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.20
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 156.50
    Pulley: P
    Fan: IF
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111018, ja1170ir, 27060-76305, 27060-78305, 27060-78305-71, 27070-23001-71, 100211-6930, 100211-6931, 100211-6960, 100211-6961, 100211-6970, 100211-6971

    • Normalised article numbler
      a6648s, alt5094, aza416, cal40202, cal40203, f032111018, f042302068, f042a02068, ja1170ir, lra01697, lra01934, 8el737225001, 5642, 12183, 12184, 12184n, 12185, 12185n, 56255, 282939, 283824, 401170ri, 1243901nd, 12060575, 535110402, 535110502, 1002116930, 1002116931, 1002116960, 1002116961, 1002116970, 1002116971, 2706076305, 2706078305, 270607830571, 270702300171
