HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111042

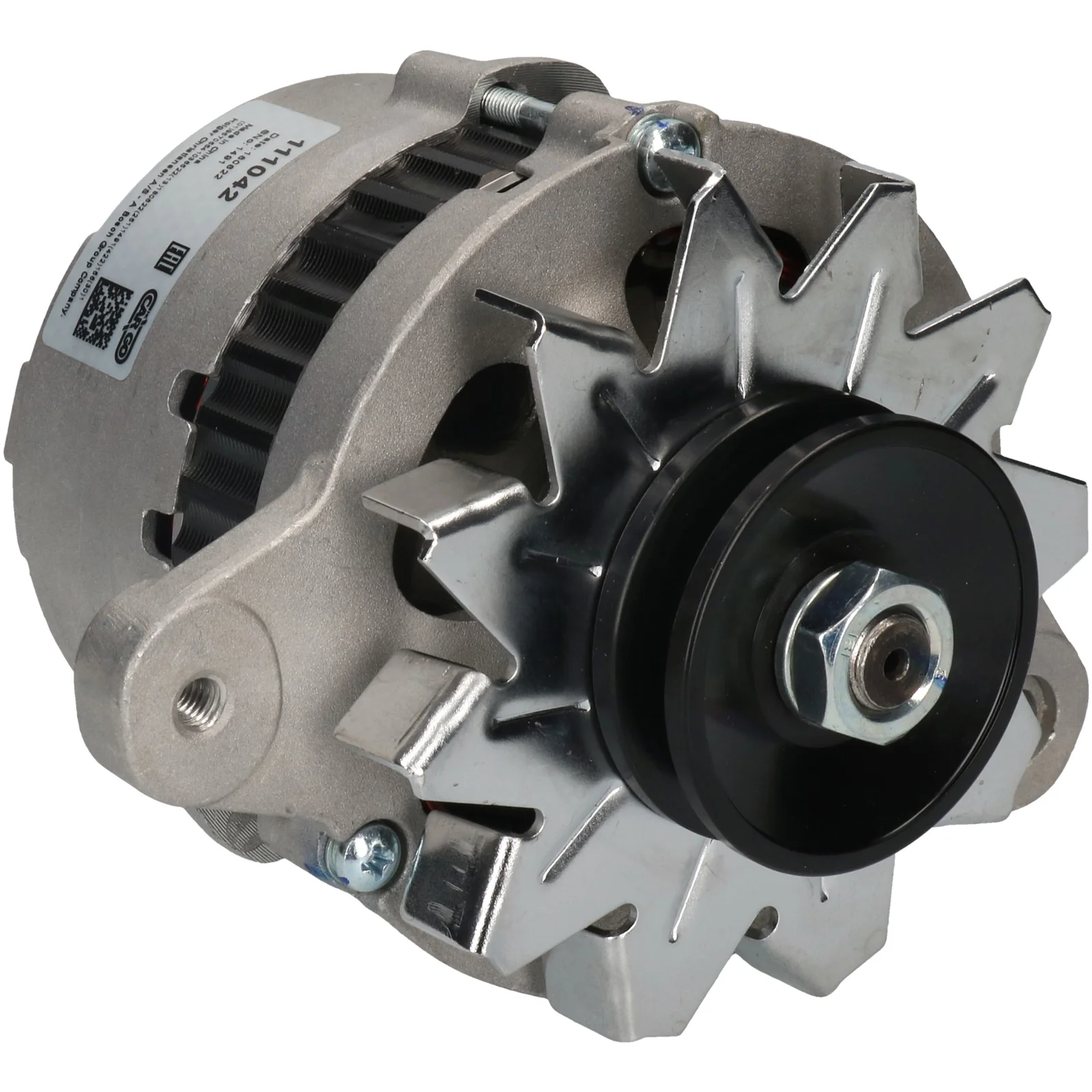

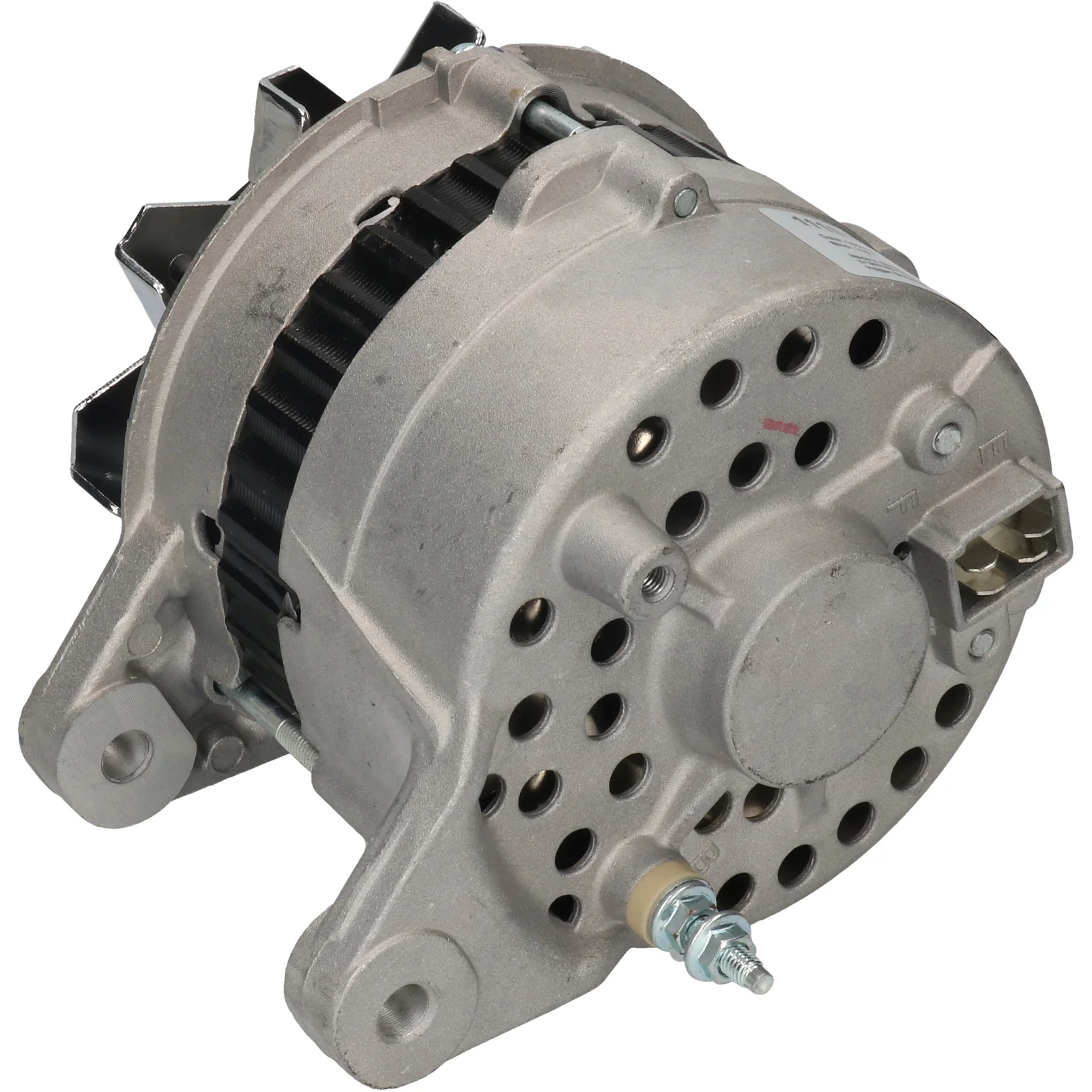

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 35, Rotation: CW, Mounting bracket distance: 65.00

Description

Voltage: 14
Amp: 35
Pulley dist.: 42.00
Width/holder arm: 13.00
Mounting bracket dist.: 65.00
Bracket hole: 8.50
Belt adjustment bracket hole position.: 55
Belt adjustment bracket hole 1: M8
Pulley dia.: 62.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 78.00
B+: M5
Position/B+ in min.: 25
D+ Size: Plug
Rotation: CW
Plug no.: PL02
Total length mm: 162.00
Pulley: P
Voltage regulator: w/o
Product info: BN
Servicing: Iseki

Files

  • OEM
    A001T11574, A001T22074, a1t11574, a1t22074, ah2025m4, ah2035m, ah2035m4, F032111042, ja872, md017635, md017645, 021000-6980

  • Normalised article numbler
    a001t11574, a001t22074, a1t11574, a1t22074, aca322, ah2025m4, ah2035m, ah2035m4, cal40133, dra3443, f032111042, ja872, lra01091, md017635, md017645, 8el732718001, 5446, 12132, 12132n, 40872, 119148, 271618, 12060487, 90273081, 0210006980, 526002352
  • Description
    Voltage: 14
    Amp: 35
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mounting bracket dist.: 65.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 55
    Belt adjustment bracket hole 1: M8
    Pulley dia.: 62.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M5
    Position/B+ in min.: 25
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL02
    Total length mm: 162.00
    Pulley: P
    Voltage regulator: w/o
    Product info: BN
    Servicing: Iseki

    Files

  • Suitable for these vehicles

    • OEM
      A001T11574, A001T22074, a1t11574, a1t22074, ah2025m4, ah2035m, ah2035m4, F032111042, ja872, md017635, md017645, 021000-6980

    • Normalised article numbler
      a001t11574, a001t22074, a1t11574, a1t22074, aca322, ah2025m4, ah2035m, ah2035m4, cal40133, dra3443, f032111042, ja872, lra01091, md017635, md017645, 8el732718001, 5446, 12132, 12132n, 40872, 119148, 271618, 12060487, 90273081, 0210006980, 526002352
