HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111195

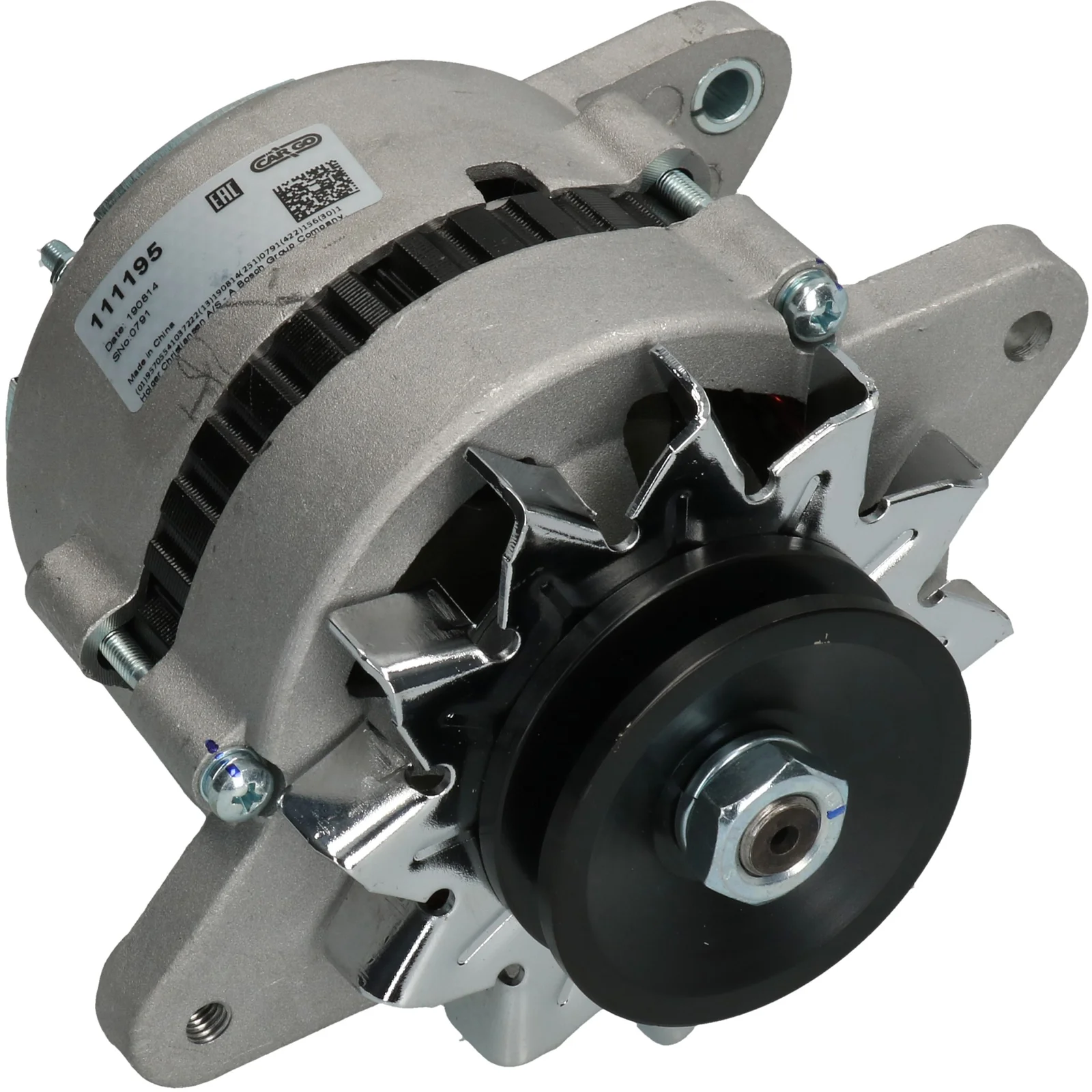

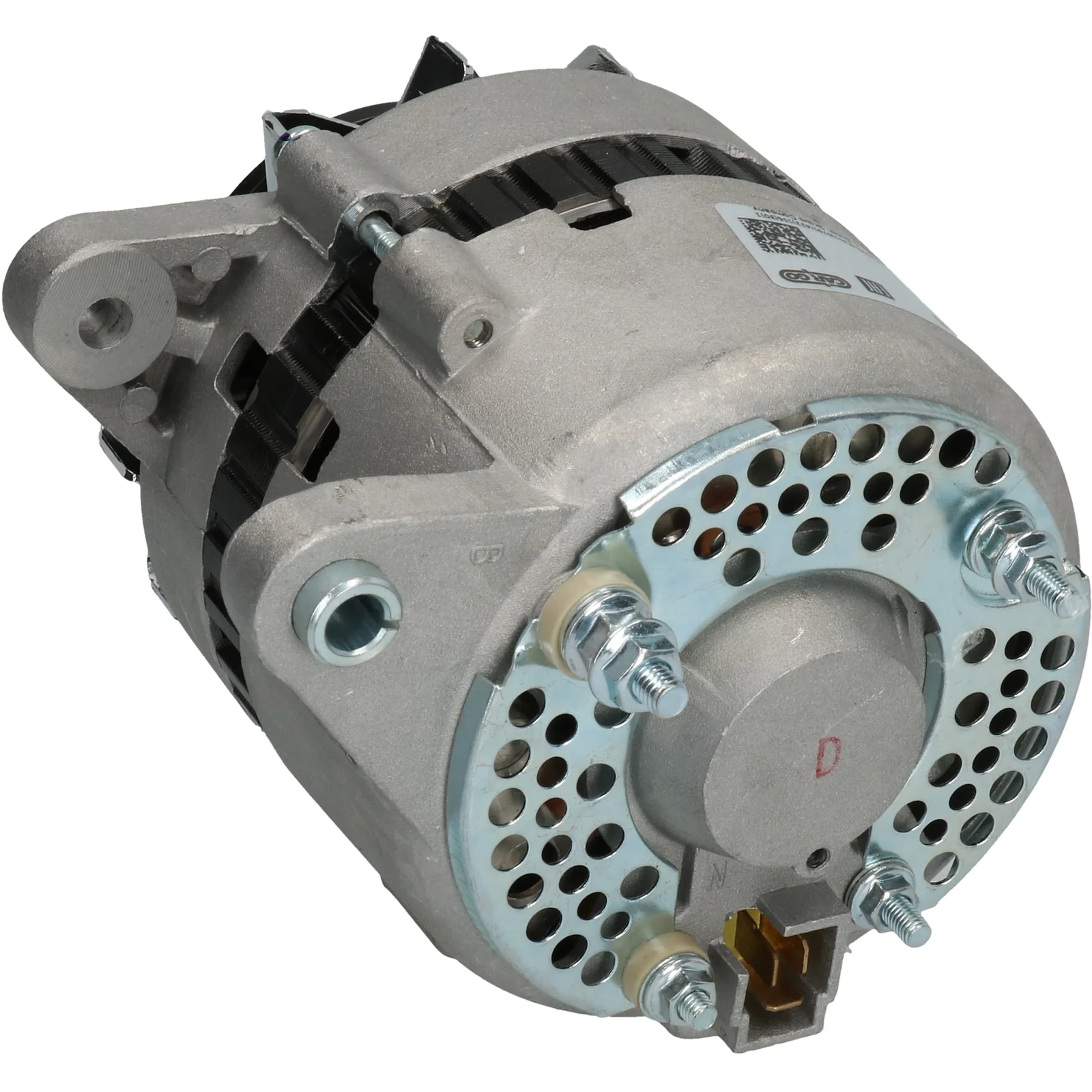

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 35, Rotation: CW, Mount. bracket dist.: 67.40

Description

Voltage: 14
Amp: 35
Pulley dist.: 43.50
Width/holder arm: 13.00
Mounting bracket dist.: 67.40
Bracket hole: 8.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.70
Pulley diameter: 75.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 76.00
B+: M6
Position/B+ in minutes: 10
Rotation: CW
Plug no.: PL15
Total length mm: 158.00
Pulley: P
Voltage regulator type: ER
Product info: BN
Servicing: Kubota
Remarks: Voltage regulator: HC-CARGO 130627.

Files

  • OEM
    F032111195, 15253-64010, 15253-64011, 15253-64012, 15471-64010, 15621-64010, 15621-64011, 15763-64010, 15763-64011, 15763-64012, 021000-8660, 27020-23020, 121000-0600, 121000-0980

  • Normalised article numbler
    and0207, f032111195, 12055, 12068, 12068n, 270595, 32118806, 0210008660, 583002352, 695002035, 1210000600, 1210000980, 1525364010, 1525364011, 1525364012, 1547164010, 1562164010, 1562164011, 1576364010, 1576364011, 1576364012, 2702023020
  • Description
    Voltage: 14
    Amp: 35
    Pulley dist.: 43.50
    Width/holder arm: 13.00
    Mounting bracket dist.: 67.40
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.70
    Pulley diameter: 75.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 76.00
    B+: M6
    Position/B+ in minutes: 10
    Rotation: CW
    Plug no.: PL15
    Total length mm: 158.00
    Pulley: P
    Voltage regulator type: ER
    Product info: BN
    Servicing: Kubota
    Remarks: Voltage regulator: HC-CARGO 130627.

    Files

  • Suitable for these vehicles

    • OEM
      F032111195, 15253-64010, 15253-64011, 15253-64012, 15471-64010, 15621-64010, 15621-64011, 15763-64010, 15763-64011, 15763-64012, 021000-8660, 27020-23020, 121000-0600, 121000-0980

    • Normalised article numbler
      and0207, f032111195, 12055, 12068, 12068n, 270595, 32118806, 0210008660, 583002352, 695002035, 1210000600, 1210000980, 1525364010, 1525364011, 1525364012, 1547164010, 1562164010, 1562164011, 1576364010, 1576364011, 1576364012, 2702023020
