HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111215

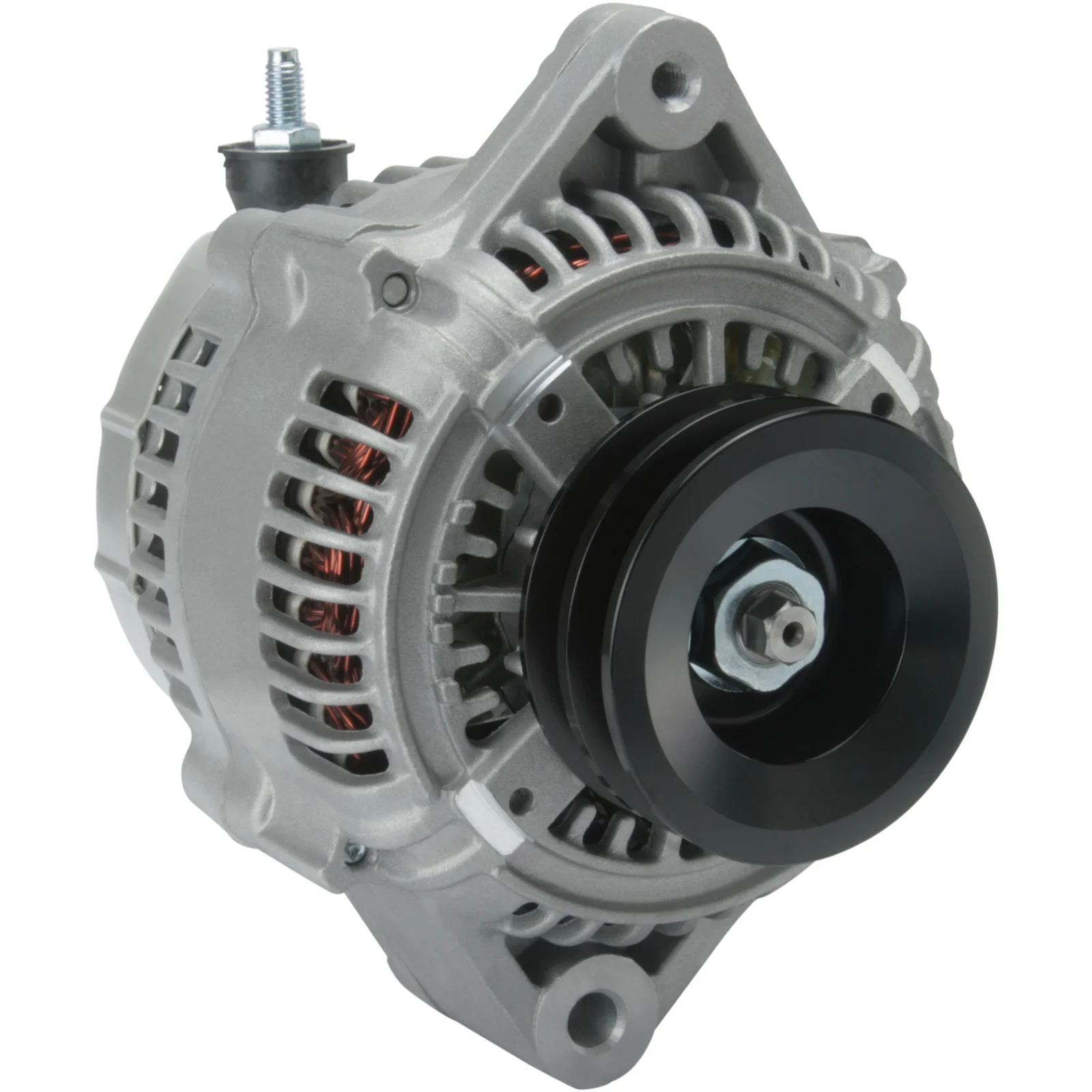

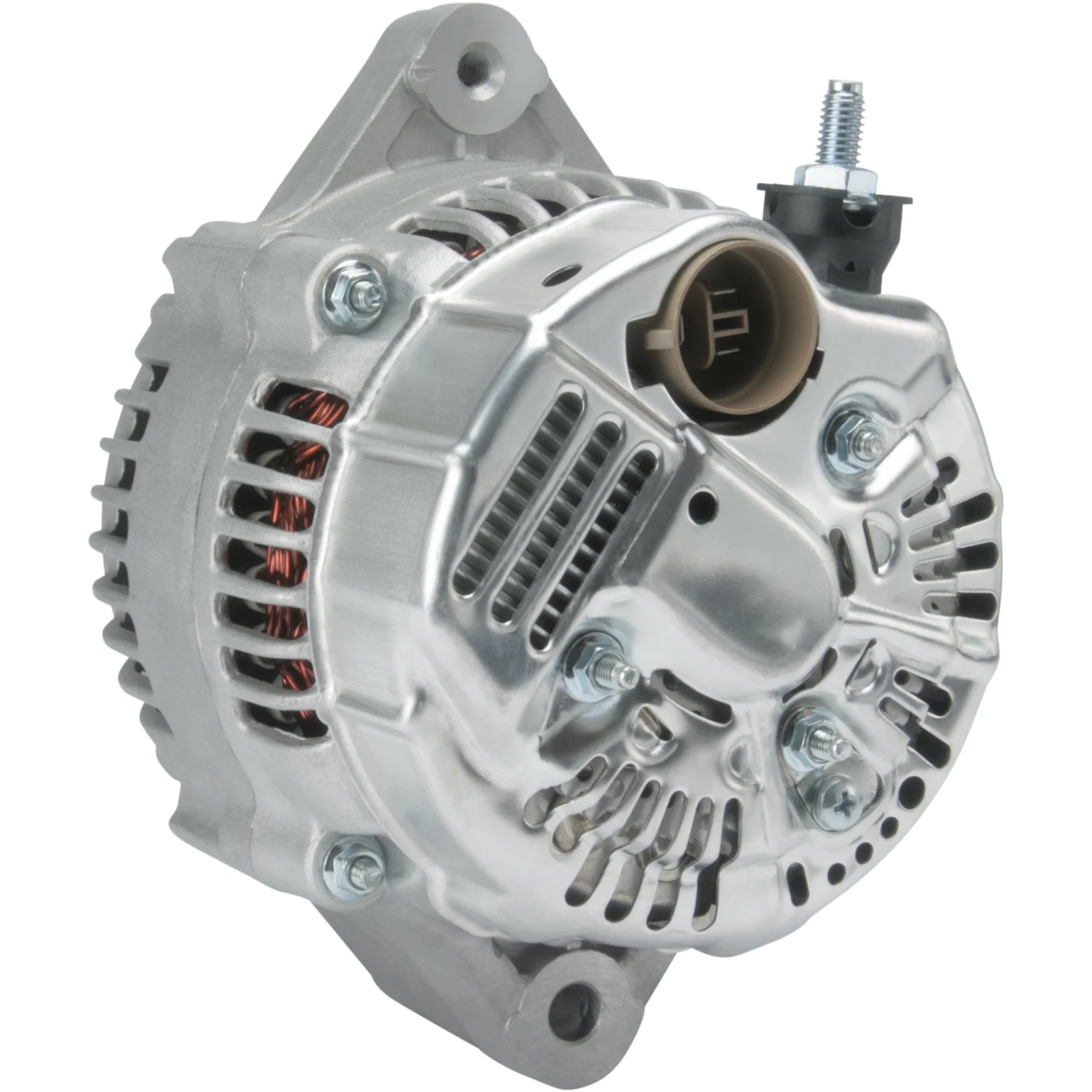

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Pully dia.: 76.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 92.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 76.00
Grooves/pulley: 2
Radius: 84.50
Radius 2: 86.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 175.00
Terminal type: L-IG-S
Pulley: DP
Regulator type: IR
Prod. info: BN
Servicing: John Deere lawn equipment with cooling engine

Files

  • OEM
    AL78690, F032111215, ja864ir, re36246, re37201, re42123, re44140, re51921, ty6684, TY6778, 100211-6030, 100211-6031, 100211-6050, 100211-6051

  • Normalised article numbler
    al78690, al9942x, alt10236, cal40208, cal40551, dra3128, f032111215, ja864ir, lra01308, mm159, re36246, re37201, re42123, re44140, re51921, ty6684, ty6778, 8el011712821, 8el731751001, 5439, 12066, 12066n, 12066r, 40864ri, 111466, 111955, 281626, 1285101nd, 14637102, 0986036800, 1002116030, 1002116031, 1002116050, 1002116051, 5861041202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 92.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 76.00
    Grooves/pulley: 2
    Radius: 84.50
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 175.00
    Terminal type: L-IG-S
    Pulley: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: John Deere lawn equipment with cooling engine

    Files

  • Suitable for these vehicles

    • OEM
      AL78690, F032111215, ja864ir, re36246, re37201, re42123, re44140, re51921, ty6684, TY6778, 100211-6030, 100211-6031, 100211-6050, 100211-6051

    • Normalised article numbler
      al78690, al9942x, alt10236, cal40208, cal40551, dra3128, f032111215, ja864ir, lra01308, mm159, re36246, re37201, re42123, re44140, re51921, ty6684, ty6778, 8el011712821, 8el731751001, 5439, 12066, 12066n, 12066r, 40864ri, 111466, 111955, 281626, 1285101nd, 14637102, 0986036800, 1002116030, 1002116031, 1002116050, 1002116051, 5861041202
