Article no.: F032111232

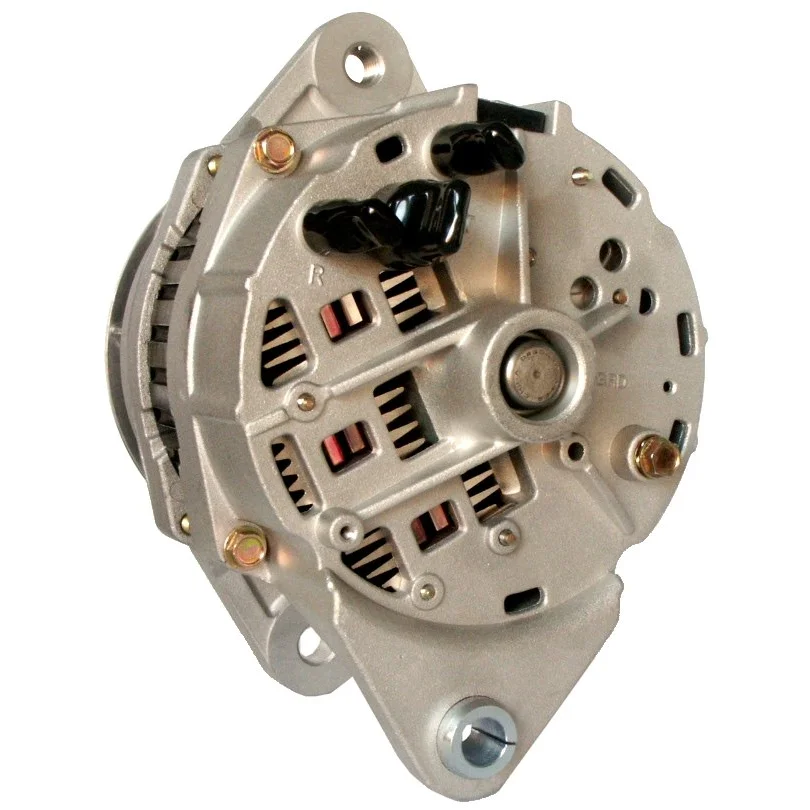

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 115, Rotation: CW, Mounting bracket distance: 101.80

Description

Voltage: 14
Amp: 115
Terminal: W
Width/holder arm: 14.30
Mounting bracket distance: 101.80
Bracket hole: 13.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: 1/4" UNF
Position/B+ in minutes: 52
D+ Size: 10-24 UNC
Rotation: CW
W plug type: 10-24 UNC
Total length mm: 215.00
Pulley: without
Fan: EF
Regulator type: IR
Product information: BN
Servicing: Volvo
Remarks: Replacing: 21SI. One-wire system. B+: 1/4".

Files

  • OEM
    0R3654, F032111232, OR3654, X830100004, 6T1396, 7T2096, 8HC2023K, 8HC2023KS, 110-284, 110-312, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902

  • Normalised article numbler
    0r3654, a1017, a1066s, al9937x, bao3130, cal60102, cal60126, da07644, drz0191, f032111232, or3654, x830100004, 6t1396, 7t2096, 8el737232001, 8hc2023k, 8hc2023ks, 5619, 7669, 7670, 7671, 7673, 7679, 7681n, 7681r, 7685n, 7685r, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049n, 8077n, 110284, 110312, 220307, 220307a, 282881, 501115ri, 553311ri, 553360ri, 553805ri, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 1191501dr, 1191502dr, 1191503dr, 1191504dr, 1191505dr, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902, 645052051
  • Description
    Voltage: 14
    Amp: 115
    Terminal: W
    Width/holder arm: 14.30
    Mounting bracket distance: 101.80
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: 1/4" UNF
    Position/B+ in minutes: 52
    D+ Size: 10-24 UNC
    Rotation: CW
    W plug type: 10-24 UNC
    Total length mm: 215.00
    Pulley: without
    Fan: EF
    Regulator type: IR
    Product information: BN
    Servicing: Volvo
    Remarks: Replacing: 21SI. One-wire system. B+: 1/4".

    Files

  • Suitable for these vehicles

    • OEM
      0R3654, F032111232, OR3654, X830100004, 6T1396, 7T2096, 8HC2023K, 8HC2023KS, 110-284, 110-312, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902

    • Normalised article numbler
      0r3654, a1017, a1066s, al9937x, bao3130, cal60102, cal60126, da07644, drz0191, f032111232, or3654, x830100004, 6t1396, 7t2096, 8el737232001, 8hc2023k, 8hc2023ks, 5619, 7669, 7670, 7671, 7673, 7679, 7681n, 7681r, 7685n, 7685r, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049n, 8077n, 110284, 110312, 220307, 220307a, 282881, 501115ri, 553311ri, 553360ri, 553805ri, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 1191501dr, 1191502dr, 1191503dr, 1191504dr, 1191505dr, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902, 645052051
