Article no.: F032111321

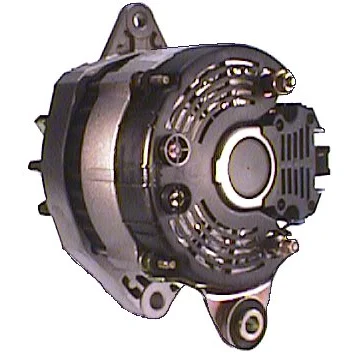

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 70, Rotation: CW, Mounting bracket distributor: 69.50

Description

Voltage: 14
Amp: 70
Pulley dist.: 46.50
Width/holder arm: 27.00
Mount. bracket dist.: 69.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 25
D+ Size: Plug
Rotation: CW
Plug no.: PL26
Total length mm: 166.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Volvo

Files

  • OEM
    a13n133, a13n178, a13n232, a13n241, a13n289, aak3583, F032111321, 11.201.523, 574ir, 2541173, 2541445, 2541490, 2541807, 3417313, 3417318, 9031146, 0120489491

  • Normalised article numbler
    a13n133, a13n178, a13n232, a13n241, a13n289, a3004, aak3583, alt14014, alt14030, bao3041, cal15113, dra3083, dra4057, f032111321, fra771, ia0523, lra00966, mg529, na346, qa1702, va271, 8el012428891, 8el725862001, 574ir, 2584, 3191n, 4350, 14959r, 20962r, 23139r, 30574ri, 55602, 118364, 209154, 209154a, 280892, 433079, 436306, 436309, 436310, 436645, 2541173, 2541445, 2541490, 2541807, 3417313, 3417318, 4036880, 4036881, 9031146, 11201523, 12036860, 12036880, 20100966, 35215040, 35215205, 0120489491, 200119702, 200125702, 0986036880, 0986036881
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 46.50
    Width/holder arm: 27.00
    Mount. bracket dist.: 69.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 25
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL26
    Total length mm: 166.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Volvo

    Files

  • Suitable for these vehicles

    • OEM
      a13n133, a13n178, a13n232, a13n241, a13n289, aak3583, F032111321, 11.201.523, 574ir, 2541173, 2541445, 2541490, 2541807, 3417313, 3417318, 9031146, 0120489491

    • Normalised article numbler
      a13n133, a13n178, a13n232, a13n241, a13n289, a3004, aak3583, alt14014, alt14030, bao3041, cal15113, dra3083, dra4057, f032111321, fra771, ia0523, lra00966, mg529, na346, qa1702, va271, 8el012428891, 8el725862001, 574ir, 2584, 3191n, 4350, 14959r, 20962r, 23139r, 30574ri, 55602, 118364, 209154, 209154a, 280892, 433079, 436306, 436309, 436310, 436645, 2541173, 2541445, 2541490, 2541807, 3417313, 3417318, 4036880, 4036881, 9031146, 11201523, 12036860, 12036880, 20100966, 35215040, 35215205, 0120489491, 200119702, 200125702, 0986036880, 0986036881
