Article no.: F032111342

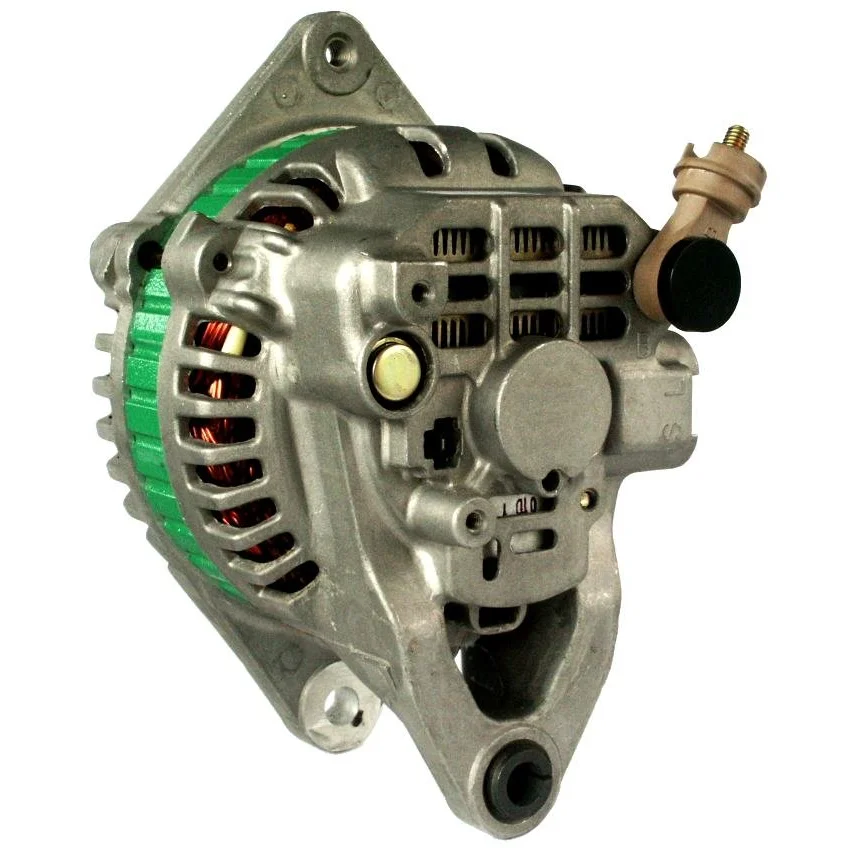

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 60, Rotation: CW, Mounting bracket distance: 66.00

Description

Voltage: 14
Amp: 60
Pulley: Alternator
dist.: 43.00
Width/holder arm: 13.00
Mounting bracket distance: 66.00
Bracket hole: 10.50
Belt tensioning bracket hole position: 60
Belt tensioning bracket hole 1: M8
Pulley diameter: 74.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in minutes: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 156.00
Terminal type: L-S
Pulley: Alternator
Fan: IF
Regulator type: IR
Product info: BN
Servicing: Mazda

Files

  • OEM
    A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, B61P-18-300, B61P-18-300E, B61P-18-300F, B64J-18-300A, B64J-18-300B, F032111342, hab160102, ja805ir

  • Normalised article numbler
    a005t01577, a005t01977, a005t03677, a005t03677a, a005t03777, a5265, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, al4207x, alt31008, alth038, ama386, b61p18300, b61p18300e, b61p18300f, b64j18300a, b64j18300b, cal35148, dra3167, dra3306, dra4139, f032111342, f042a0h038, hab160102, ja805ir, lra02654, lrb00157, qa4086, 8el011712071, 8el731746001, 5434, 13227, 13432, 40805ri, 56364, 119269, 281788, 437681, 1116001mi, 1142801mi, 2451312, 2451332, 12060106, 12060107, 224121602, 0986045501
  • Description
    Voltage: 14
    Amp: 60
    Pulley: Alternator
    dist.: 43.00
    Width/holder arm: 13.00
    Mounting bracket distance: 66.00
    Bracket hole: 10.50
    Belt tensioning bracket hole position: 60
    Belt tensioning bracket hole 1: M8
    Pulley diameter: 74.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in minutes: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 156.00
    Terminal type: L-S
    Pulley: Alternator
    Fan: IF
    Regulator type: IR
    Product info: BN
    Servicing: Mazda

    Files

  • Suitable for these vehicles

    • OEM
      A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, B61P-18-300, B61P-18-300E, B61P-18-300F, B64J-18-300A, B64J-18-300B, F032111342, hab160102, ja805ir

    • Normalised article numbler
      a005t01577, a005t01977, a005t03677, a005t03677a, a005t03777, a5265, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, al4207x, alt31008, alth038, ama386, b61p18300, b61p18300e, b61p18300f, b64j18300a, b64j18300b, cal35148, dra3167, dra3306, dra4139, f032111342, f042a0h038, hab160102, ja805ir, lra02654, lrb00157, qa4086, 8el011712071, 8el731746001, 5434, 13227, 13432, 40805ri, 56364, 119269, 281788, 437681, 1116001mi, 1142801mi, 2451312, 2451332, 12060106, 12060107, 224121602, 0986045501
