Article no.: F032111363

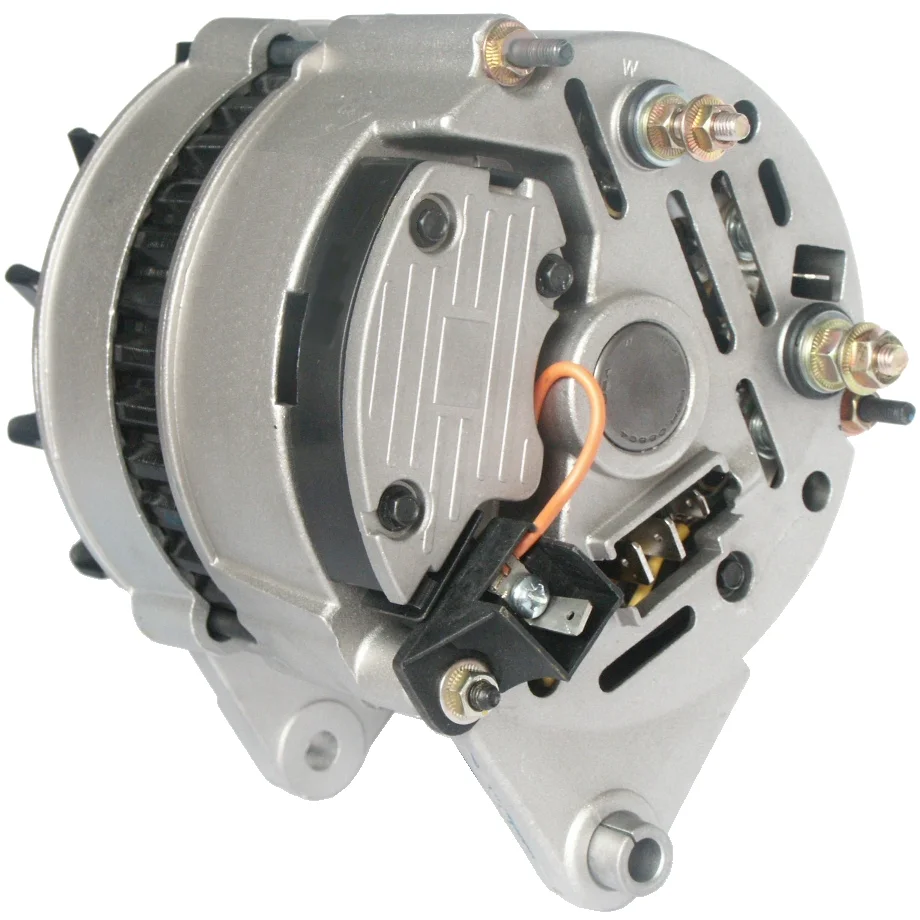

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 45, Rotation: CW, Mounting bracket distance: 83.00

Description

Voltage: 14
Amp: 45
Terminal: W
Pulley dist.: 36.70
Width/holder arm: 11.00
Mounting bracket dist.: 83.00
Bracket hole: 8.70
Belt adjustment bracket hole position.: 50
Belt adjustment bracket hole 1: M8
Pulley diameter: 79.60
Grooves/pulley: 1
Radius: 85.00
Radius 2: 86.50
B+: M6
Position/B+ in minutes.: 12
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 165.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: New Holland

Files

  • OEM
    F032111363, 725ir, 24246, 24246a, 24246B, 24246F, 24246J, 24256, 24256a, 24256B, 24256c, 24327a, 54022292, 54022310, 54022481, 63324327, 63325256

  • Normalised article numbler
    alt10022, dra3289, f032111363, lea0066, lra00530, 8el730023001, 725ir, 5214, 12089, 12089n, 24246, 24246a, 24246b, 24246f, 24246j, 24256, 24256a, 24256b, 24256c, 24327a, 30725ri, 281840, 54022292, 54022310, 54022481, 063324256, 63324327, 63325256, 220101452
  • Description
    Voltage: 14
    Amp: 45
    Terminal: W
    Pulley dist.: 36.70
    Width/holder arm: 11.00
    Mounting bracket dist.: 83.00
    Bracket hole: 8.70
    Belt adjustment bracket hole position.: 50
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 79.60
    Grooves/pulley: 1
    Radius: 85.00
    Radius 2: 86.50
    B+: M6
    Position/B+ in minutes.: 12
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 165.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: New Holland

    Files

  • Suitable for these vehicles

    • OEM
      F032111363, 725ir, 24246, 24246a, 24246B, 24246F, 24246J, 24256, 24256a, 24256B, 24256c, 24327a, 54022292, 54022310, 54022481, 63324327, 63325256

    • Normalised article numbler
      alt10022, dra3289, f032111363, lea0066, lra00530, 8el730023001, 725ir, 5214, 12089, 12089n, 24246, 24246a, 24246b, 24246f, 24246j, 24256, 24256a, 24256b, 24256c, 24327a, 30725ri, 281840, 54022292, 54022310, 54022481, 063324256, 63324327, 63325256, 220101452
