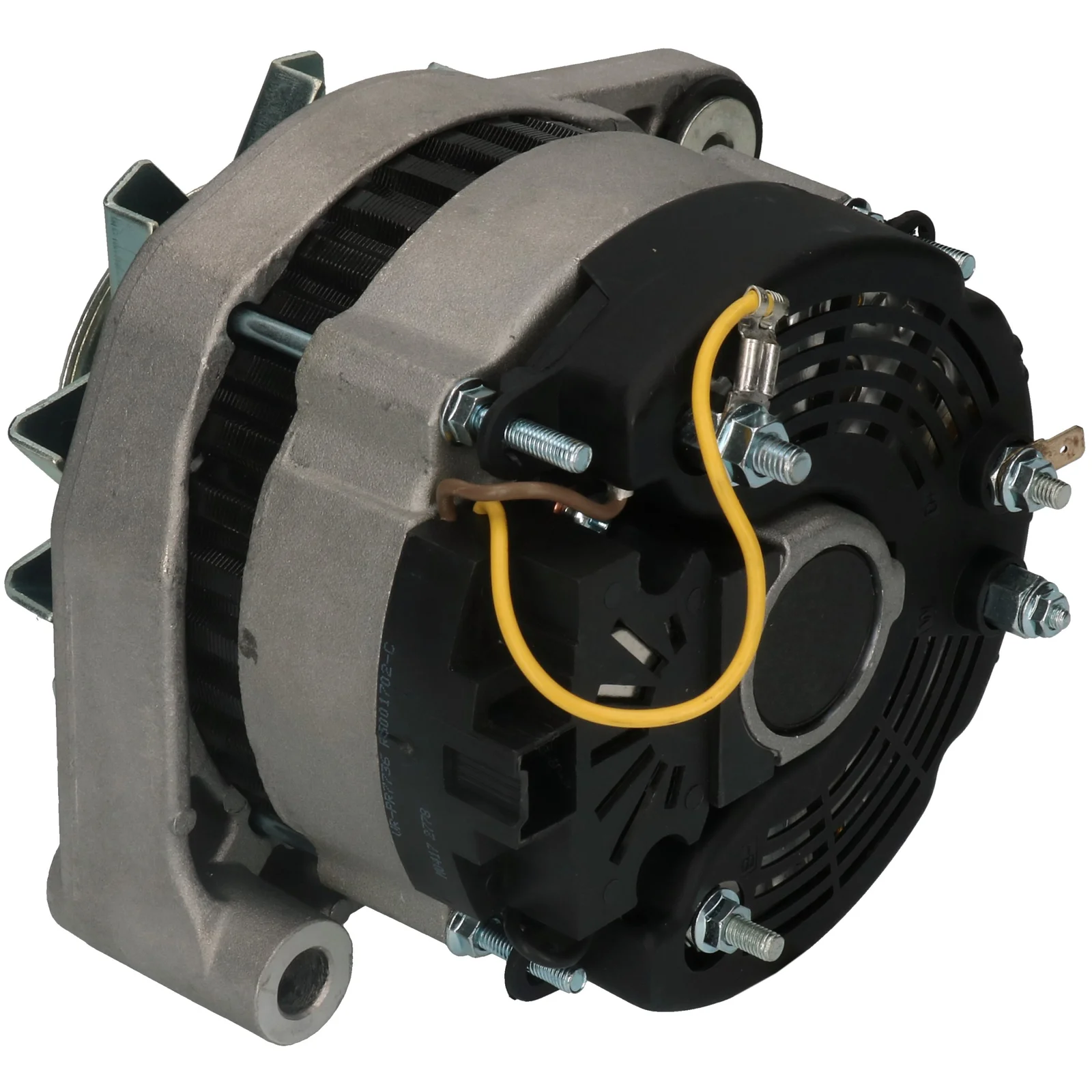

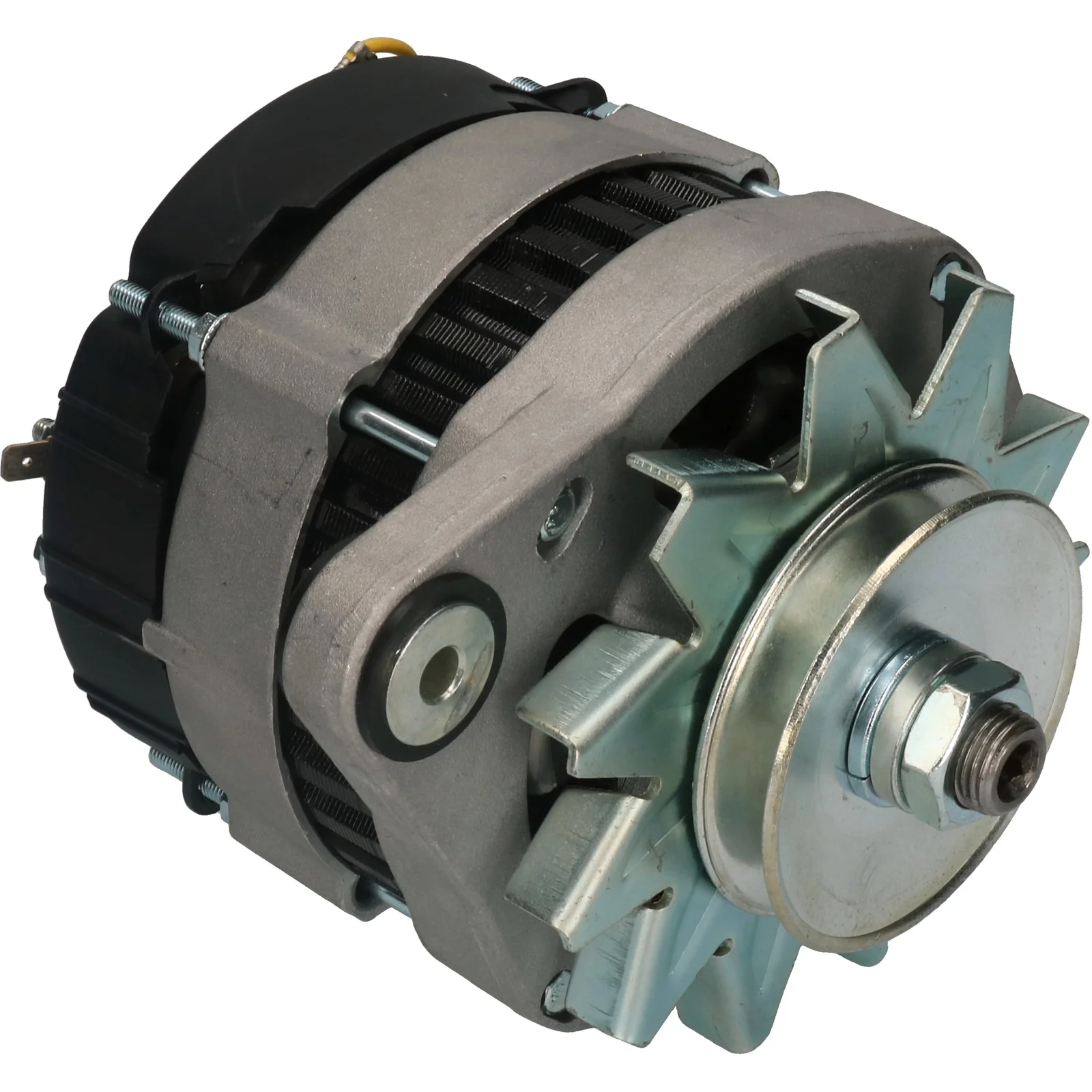

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111397

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 50, Rotation: CW, Pulley diameter: 77.40

Description

Voltage: 14
Amp: 50
Insulated return: Yes
Terminal: W
Pulley dist.: 74.20
Width/holder arm: 50.70
Bracket hole: 11.40
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 77.40
Grooves/pulley: 1
Radius: 84.50
Radius 2: 84.00
B+: M6
Position/B+ in min.: 47
D+ Size: M5-6.30
Rotation: CW
Total length mm: 167.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Volvo Penta

Files

  • OEM
    A13N147, a13n147m, a13n148m, a13n149m, a13n186m, a13n1m, a13n2, a13n234, a13n259, a13n259m, a13n2m, a13n35m, F032111397, 1192ir, 841762, 841765, 842765, 858838, 858839, 867975, 867976, 868082, 868421, 868422, 868425, 868426, 868433, 2518039, 2518039C, 2541191, 2541191B, 2541663, 70229102, 70229502, 70229602, 70229802, 70230002, 70230202, 70230302, 70230502

  • Normalised article numbler
    a13n147, a13n147m, a13n148m, a13n149m, a13n186m, a13n1m, a13n2, a13n234, a13n259, a13n259m, a13n2m, a13n35m, a3042, a3535valeo, al5001n, cal15245, cal15386, dra1339, dra3623, f032111397, lra01179, lra01246, lra01656, mg58, na387, na388, 8el015643381, 8el737212001, 1192ir, 5623, 12411, 12412, 13059, 13059n, 13068, 13068n, 13068r, 14282, 75778, 75779, 75785, 75786, 200257, 202015, 210702, 210702a, 280534, 280683, 280910, 282865, 301192ri, 436378, 436676, 439181, 439185, 518039, 518040, 554003ri, 592772, 841762, 841765, 842765, 858838, 858839, 867975, 867976, 868082, 868421, 868422, 868425, 868426, 868433, 1193801pr, 1194501pr, 2518039, 2518039c, 2541191, 2541191b, 2541663, 12090050, 12090221, 70229102, 70229502, 70229602, 70229802, 70230002, 70230202, 70230302, 70230502, 238110552, 500101352, 500109502, 500109602, 538111502
  • Description
    Voltage: 14
    Amp: 50
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 74.20
    Width/holder arm: 50.70
    Bracket hole: 11.40
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 77.40
    Grooves/pulley: 1
    Radius: 84.50
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 47
    D+ Size: M5-6.30
    Rotation: CW
    Total length mm: 167.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Volvo Penta

    Files

  • Suitable for these vehicles

    • OEM
      A13N147, a13n147m, a13n148m, a13n149m, a13n186m, a13n1m, a13n2, a13n234, a13n259, a13n259m, a13n2m, a13n35m, F032111397, 1192ir, 841762, 841765, 842765, 858838, 858839, 867975, 867976, 868082, 868421, 868422, 868425, 868426, 868433, 2518039, 2518039C, 2541191, 2541191B, 2541663, 70229102, 70229502, 70229602, 70229802, 70230002, 70230202, 70230302, 70230502

    • Normalised article numbler
      a13n147, a13n147m, a13n148m, a13n149m, a13n186m, a13n1m, a13n2, a13n234, a13n259, a13n259m, a13n2m, a13n35m, a3042, a3535valeo, al5001n, cal15245, cal15386, dra1339, dra3623, f032111397, lra01179, lra01246, lra01656, mg58, na387, na388, 8el015643381, 8el737212001, 1192ir, 5623, 12411, 12412, 13059, 13059n, 13068, 13068n, 13068r, 14282, 75778, 75779, 75785, 75786, 200257, 202015, 210702, 210702a, 280534, 280683, 280910, 282865, 301192ri, 436378, 436676, 439181, 439185, 518039, 518040, 554003ri, 592772, 841762, 841765, 842765, 858838, 858839, 867975, 867976, 868082, 868421, 868422, 868425, 868426, 868433, 1193801pr, 1194501pr, 2518039, 2518039c, 2541191, 2541191b, 2541663, 12090050, 12090221, 70229102, 70229502, 70229602, 70229802, 70230002, 70230202, 70230302, 70230502, 238110552, 500101352, 500109502, 500109602, 538111502
