HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111437

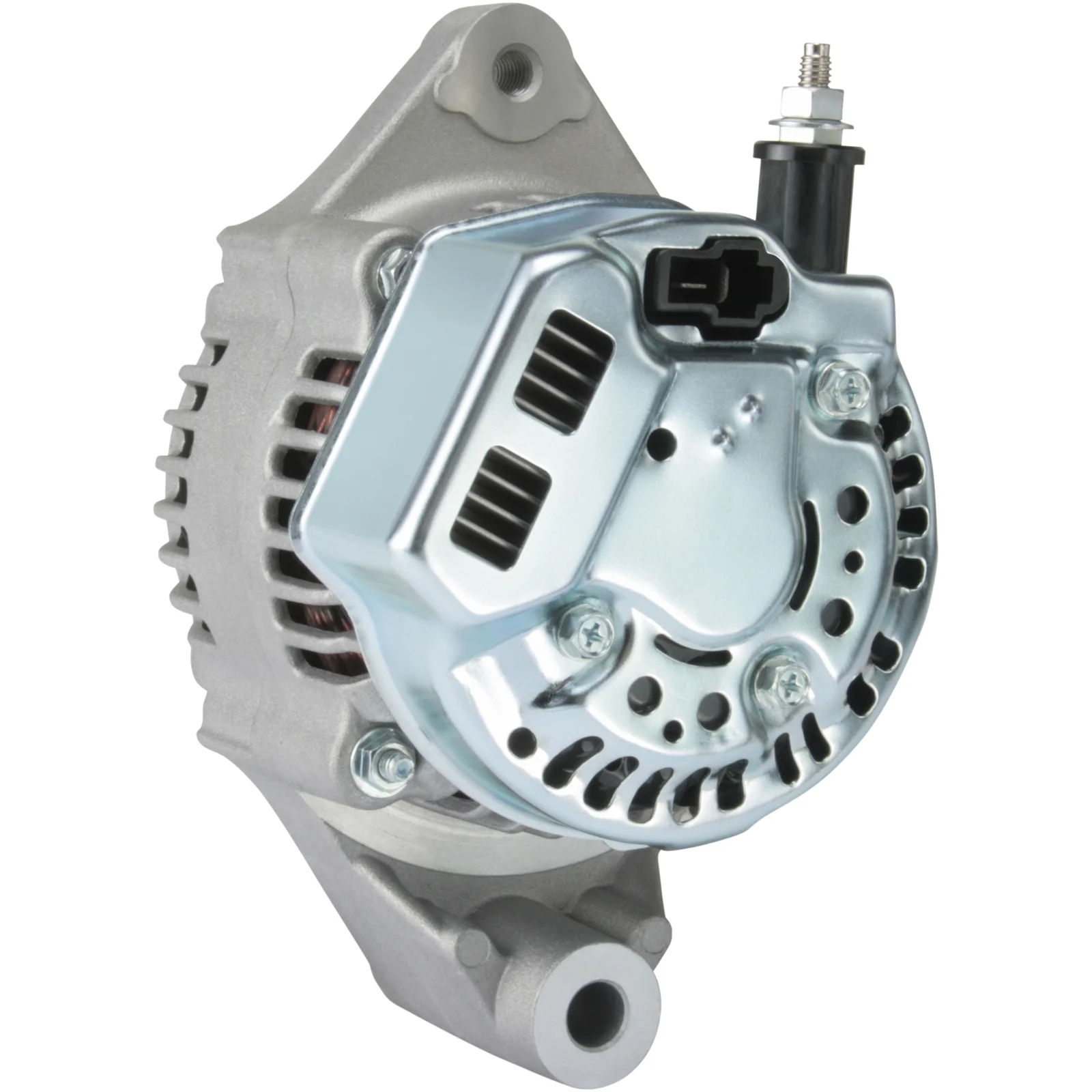

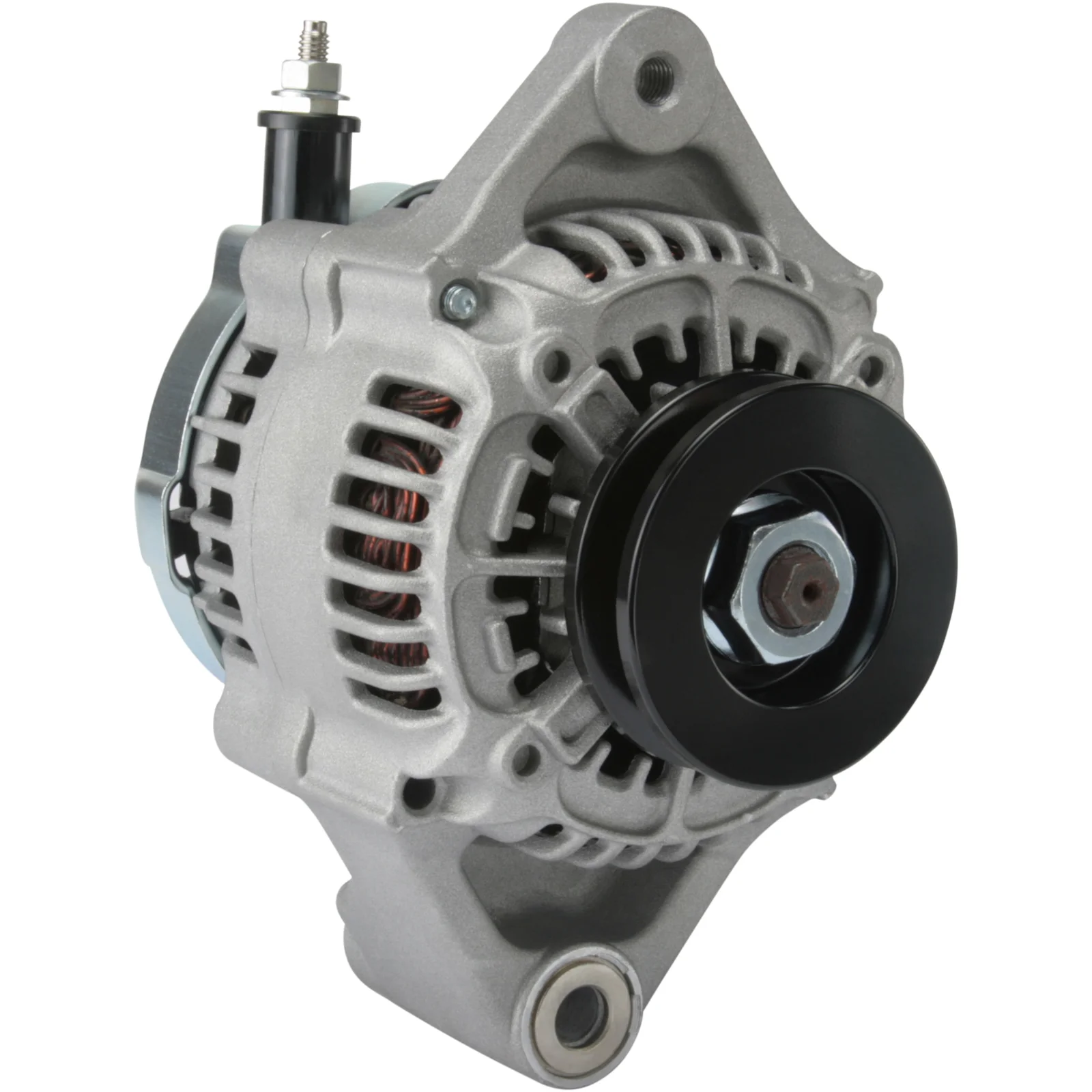

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 45, Rotation: CW, Pulley diameter: 63.20

Description

Voltage: 14
Amp: 45
Pulley dist.: 95.70
Width/holder arm: 58.00
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 63.20
Grooves/pulley: 1
Radius: 79.00
Radius 2: 73.50
B+: M6
Position/B+ in min.: 6
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 165.50
Lamp type: Inactive
Pulley: P
Voltage regulator type: IR
Prod. info: BN
Servicing: Daihatsu

Files

  • OEM
    F032111437, ja880ir, 27060-87112-000, 27060-87512, 27060-87512-000, 27060-87601, 27060-87601-000, 27060-87602, 27060-87602-000, 27060-87Z06, 100211-3370, 100211-5730, 100211-6660, 100211-6730, 101211-3370, 101211-3770, 102211-6730, 2706087112

  • Normalised article numbler
    a6024, alt30018, alth043, cal40107, dra3348, f032111437, f042a0h043, j5116013, ja880ir, lrb00442, qa1087, 8el732726001, 5454, 21881n, 40880ri, 119312, 210279, 210279a, 281934, 437707, 1851613, 2706087z06, 12060034, 115504040, 115504050, 217114452, 0986080620, 1002113370, 1002115730, 1002116660, 1002116730, 1012113370, 1012113770, 1022116730, 2706087112, 2706087512, 2706087601, 2706087602, 2706087112000, 2706087512000, 2706087601000, 2706087602000
  • Description
    Voltage: 14
    Amp: 45
    Pulley dist.: 95.70
    Width/holder arm: 58.00
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 63.20
    Grooves/pulley: 1
    Radius: 79.00
    Radius 2: 73.50
    B+: M6
    Position/B+ in min.: 6
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 165.50
    Lamp type: Inactive
    Pulley: P
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Daihatsu

    Files

  • Suitable for these vehicles

    • OEM
      F032111437, ja880ir, 27060-87112-000, 27060-87512, 27060-87512-000, 27060-87601, 27060-87601-000, 27060-87602, 27060-87602-000, 27060-87Z06, 100211-3370, 100211-5730, 100211-6660, 100211-6730, 101211-3370, 101211-3770, 102211-6730, 2706087112

    • Normalised article numbler
      a6024, alt30018, alth043, cal40107, dra3348, f032111437, f042a0h043, j5116013, ja880ir, lrb00442, qa1087, 8el732726001, 5454, 21881n, 40880ri, 119312, 210279, 210279a, 281934, 437707, 1851613, 2706087z06, 12060034, 115504040, 115504050, 217114452, 0986080620, 1002113370, 1002115730, 1002116660, 1002116730, 1012113370, 1012113770, 1022116730, 2706087112, 2706087512, 2706087601, 2706087602, 2706087112000, 2706087512000, 2706087601000, 2706087602000
