HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111495

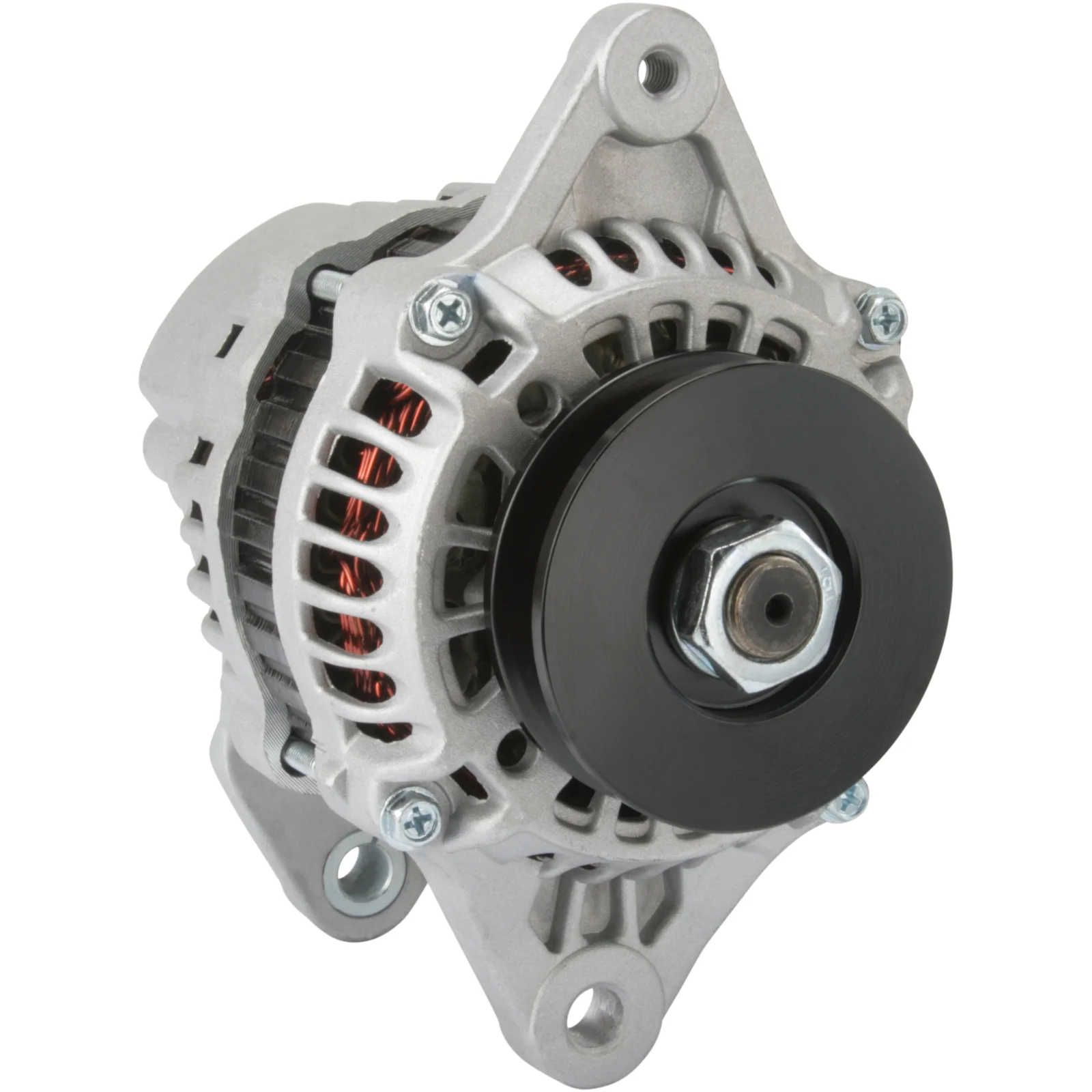

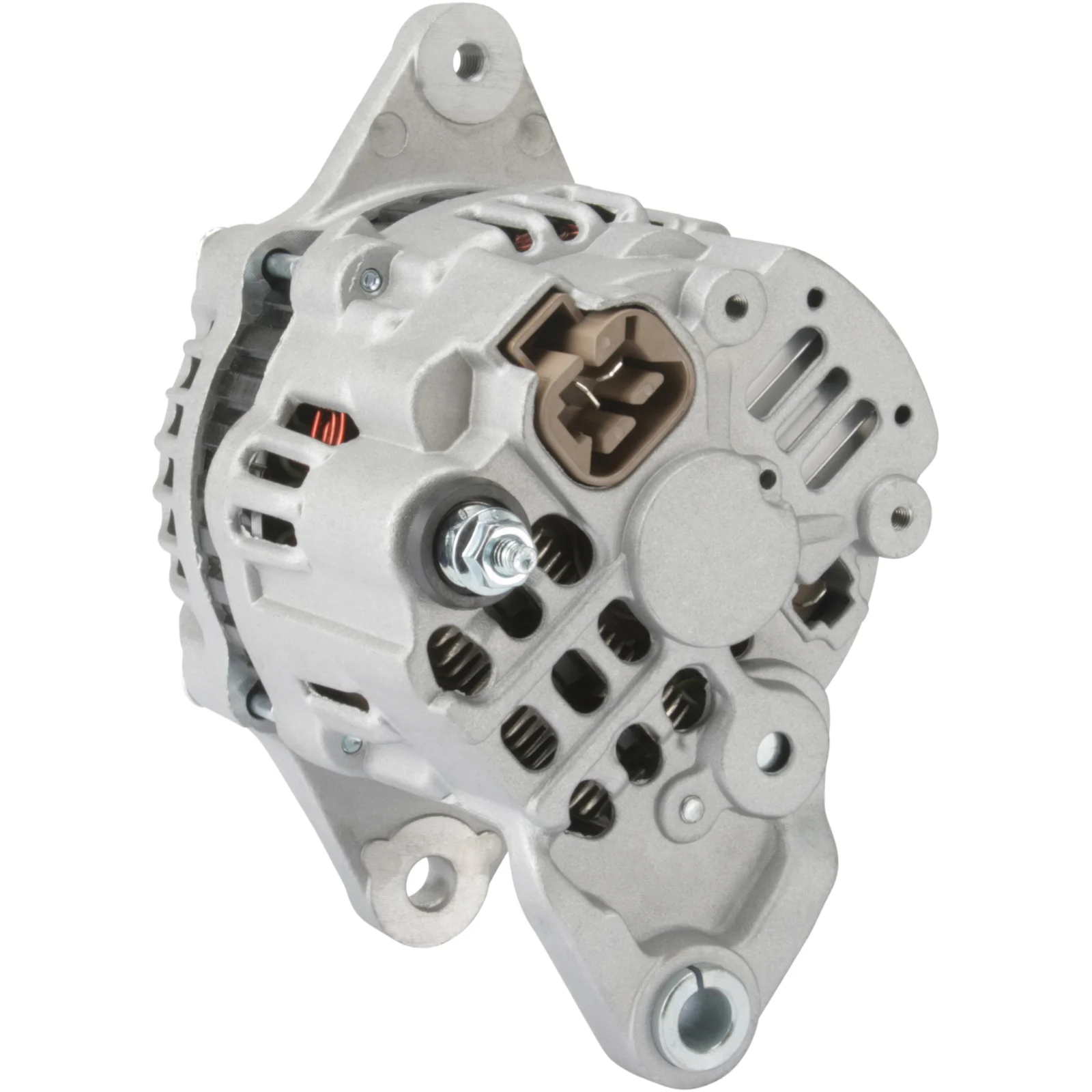

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 40, Rotation: clockwise, Mounting bracket distributor: 81.50

Description

Voltage: 14
Amp: 40
Terminal: W
Pulley alternator: 42.00
Width/holder arm: 13.00
Mounting bracket distance: 81.50
Bracket hole: 10.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 74.00
Grooves/pulley: 1
Radius: 77.00
Radius 2: 77.00
B+: M6
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL09
Total length mm: 161.00
Pulley: P
Voltage regulator type: IR
Product information: BN
Servicing: Hyster

Files

  • OEM
    A007T03277, A007T03277A, a7t03277, a7t03277a, F032111495, LRA002043, S5SN-18-300, S5SN-18-300A, 00591-33580-81, 00591-55973-81, 1500145-04, 2690027-70, 5059605-60, 5059765-79, 5800009-90, 8000456-00, 9019488-01

  • Normalised article numbler
    a007t03277, a007t03277a, a5168, a7t03277, a7t03277a, a8560, alt28001, alt28002, amt0001, bao3173, cal35203, dra0065, f032111495, lra002043, lra02043, s5sn18300, s5sn18300a, 8el011712761, 12138, 12138n, 12138r, 111167, 283966, 553096ri, 1196001mi, 20140109, 90273189, 150014504, 269002770, 505960560, 505976579, 580000990, 800045600, 901948801, 005913358081, 005915597381
  • Description
    Voltage: 14
    Amp: 40
    Terminal: W
    Pulley alternator: 42.00
    Width/holder arm: 13.00
    Mounting bracket distance: 81.50
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 74.00
    Grooves/pulley: 1
    Radius: 77.00
    Radius 2: 77.00
    B+: M6
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL09
    Total length mm: 161.00
    Pulley: P
    Voltage regulator type: IR
    Product information: BN
    Servicing: Hyster

    Files

  • Suitable for these vehicles

    • OEM
      A007T03277, A007T03277A, a7t03277, a7t03277a, F032111495, LRA002043, S5SN-18-300, S5SN-18-300A, 00591-33580-81, 00591-55973-81, 1500145-04, 2690027-70, 5059605-60, 5059765-79, 5800009-90, 8000456-00, 9019488-01

    • Normalised article numbler
      a007t03277, a007t03277a, a5168, a7t03277, a7t03277a, a8560, alt28001, alt28002, amt0001, bao3173, cal35203, dra0065, f032111495, lra002043, lra02043, s5sn18300, s5sn18300a, 8el011712761, 12138, 12138n, 12138r, 111167, 283966, 553096ri, 1196001mi, 20140109, 90273189, 150014504, 269002770, 505960560, 505976579, 580000990, 800045600, 901948801, 005913358081, 005915597381
