HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111575

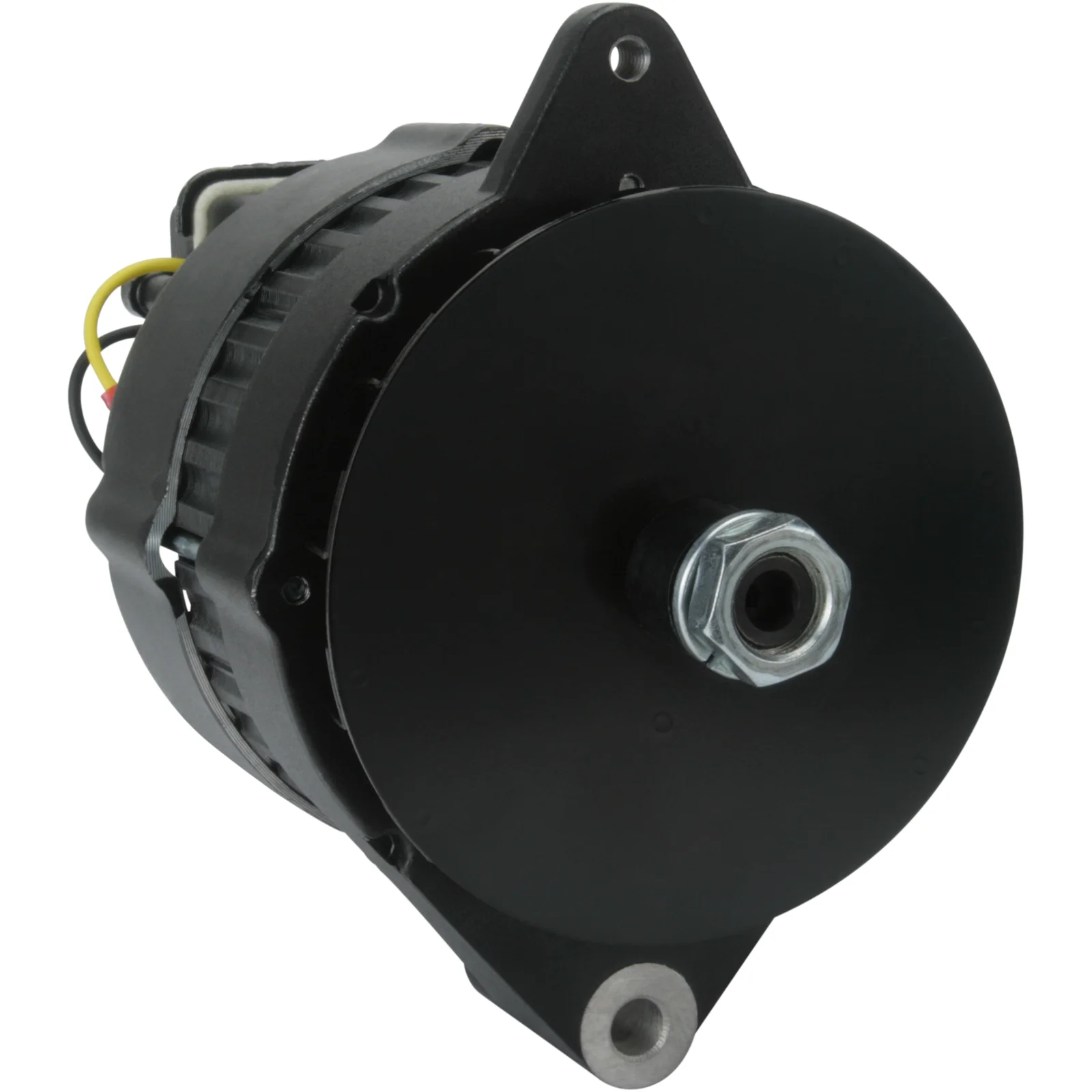

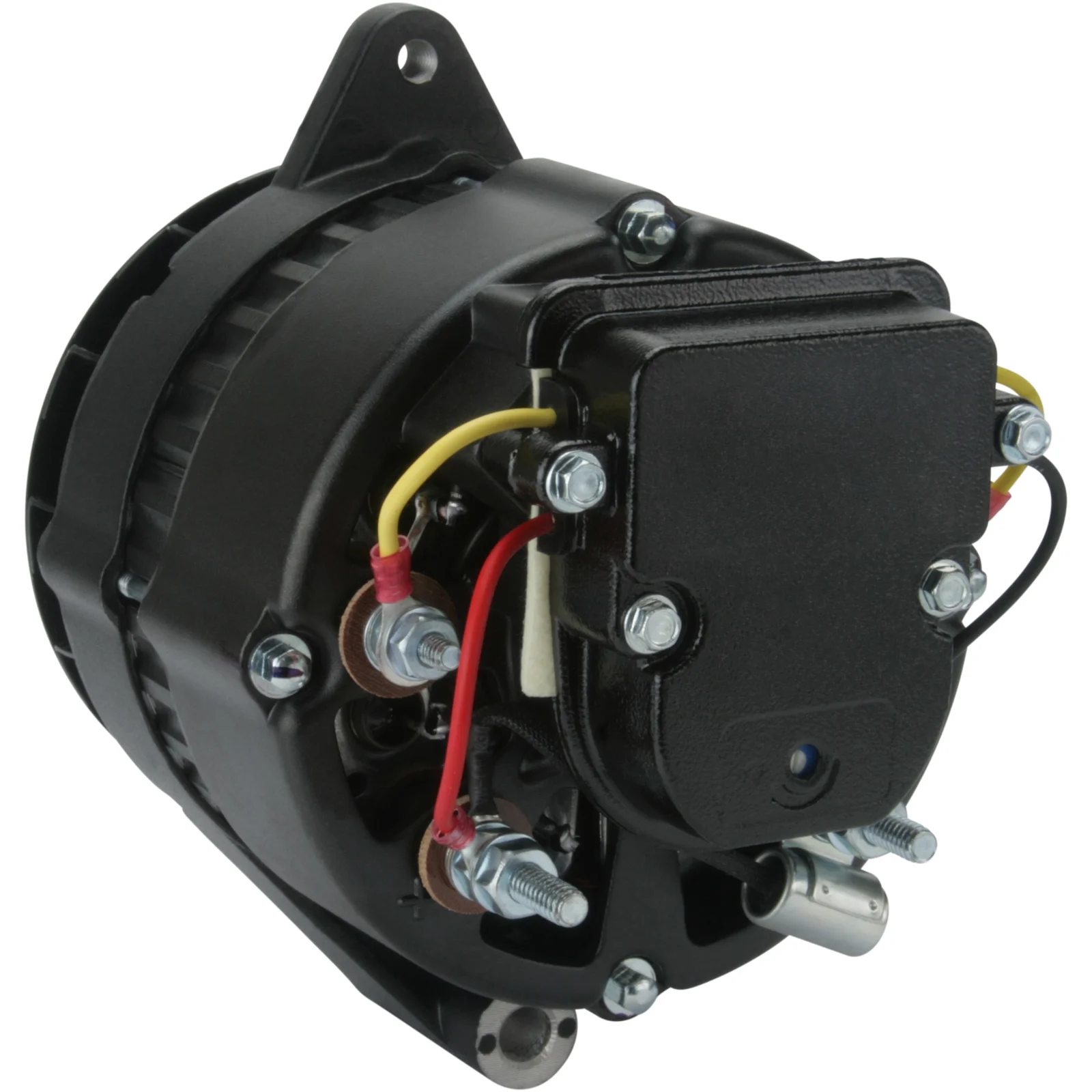

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Radius: 83.50

Description

Voltage: 14
Amp: 90
Insulated return: Yes
Terminal: W
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Radius: 83.50
Radius 2: 82.00
B+: M6
Position/B+ in min.: 35
D+ Size: M6
Rotation: CW
W plug type: M5
Total length mm: 183.50
Pulley: without
Regulator type: IR
Prod. info: BN/OE
Remarks: with adjustable voltage regulator

Files

  • Description
    Voltage: 14
    Amp: 90
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Radius: 83.50
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 35
    D+ Size: M6
    Rotation: CW
    W plug type: M5
    Total length mm: 183.50
    Pulley: without
    Regulator type: IR
    Prod. info: BN/OE
    Remarks: with adjustable voltage regulator

    Files

  • Suitable for these vehicles
