Article no.: F032111598

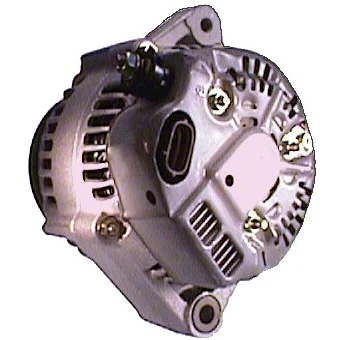

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley diameter: 97.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 96.00
Width/holder arm: 53.00
Bracket hole: 10.50
Belt. adj. bracket hole position: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 97.00
Grooves/pulley: 1
Radius: 78.50
Radius 2: 85.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 162.00
Pulley: P
Regulator type: IR
Prod. info: Reman
Servicing: Toyota

Files

  • OEM
    F032111598, ja1119ir, 27060-64130, 27060-64150, 101211-5130, 101211-5170

  • Normalised article numbler
    alt30139, cal40173, dra3738, f032111598, j5112092, ja1119ir, lrb00336, qa2526, 8el737074001, 5312, 21336r, 111595, 282803, 401119ri, 437753, 9051292, 12060423, 235158802, 0986045871, 1012115130, 1012115170, 2706064130, 2706064150, 944390512920
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 96.00
    Width/holder arm: 53.00
    Bracket hole: 10.50
    Belt. adj. bracket hole position: 55
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 97.00
    Grooves/pulley: 1
    Radius: 78.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 162.00
    Pulley: P
    Regulator type: IR
    Prod. info: Reman
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111598, ja1119ir, 27060-64130, 27060-64150, 101211-5130, 101211-5170

    • Normalised article numbler
      alt30139, cal40173, dra3738, f032111598, j5112092, ja1119ir, lrb00336, qa2526, 8el737074001, 5312, 21336r, 111595, 282803, 401119ri, 437753, 9051292, 12060423, 235158802, 0986045871, 1012115130, 1012115170, 2706064130, 2706064150, 944390512920
