Article no.: F032111712

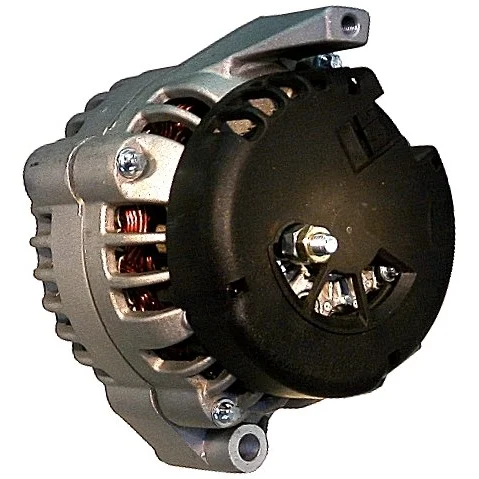

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 105, Rotation: CW, Pulley dia.: 56.50

Description

Voltage: 14
Amp: 105
Pulley dist.: 72.00
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 56.50
Grooves/pulley: 6
Radius: 82.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 1
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 175.00
Terminal type: S-I-L-P
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: Replacing: Alternator 130D.

Files

  • OEM
    F032111712, ua1538ir, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198

  • Normalised article numbler
    a1006, al8706x, alt1402, bao3087, cal12109, drz0196, f032111712, f042300140, f042a00140, lra01781, lra02835, ua1538ir, 8206n, 8206r, 8227, 8227n, 8227r, 82065, 82275, 283584, 284953, 501538ri, 908206, 1199521dr, 1199521dr1, 1199521dr2, 1199522dr, 1215521dr, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198, 12090141, 20115010, 20115011, 5281311002, 5281621002
  • Description
    Voltage: 14
    Amp: 105
    Pulley dist.: 72.00
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 56.50
    Grooves/pulley: 6
    Radius: 82.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 1
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 175.00
    Terminal type: S-I-L-P
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: Replacing: Alternator 130D.

    Files

  • Suitable for these vehicles

    • OEM
      F032111712, ua1538ir, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198

    • Normalised article numbler
      a1006, al8706x, alt1402, bao3087, cal12109, drz0196, f032111712, f042300140, f042a00140, lra01781, lra02835, ua1538ir, 8206n, 8206r, 8227, 8227n, 8227r, 82065, 82275, 283584, 284953, 501538ri, 908206, 1199521dr, 1199521dr1, 1199521dr2, 1199522dr, 1215521dr, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198, 12090141, 20115010, 20115011, 5281311002, 5281621002
