Article no.: F032111742

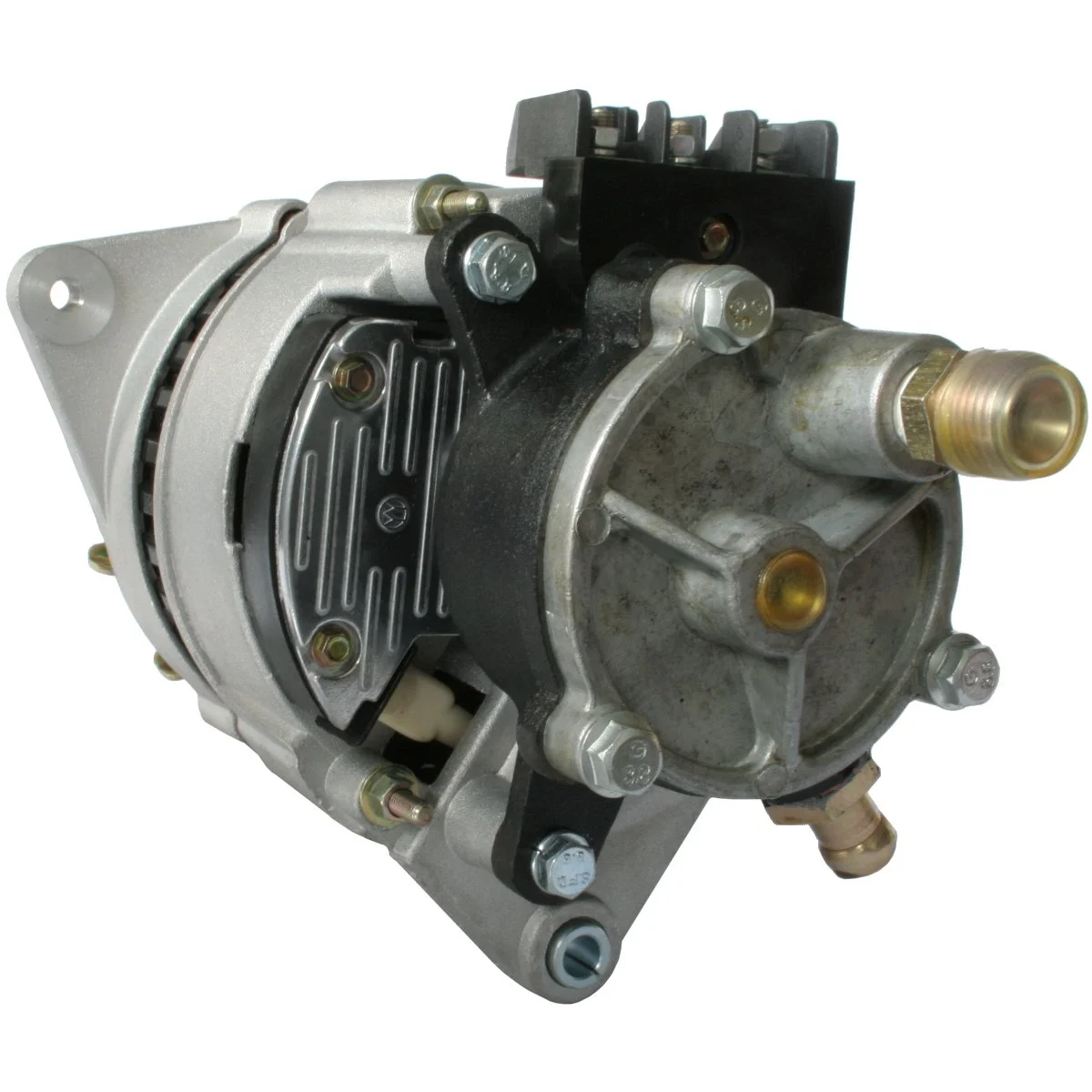

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 83.00

Description

Voltage: 14
Amp: 70
Terminal: W
Pulley dist.: 34.00
Width/holder arm: 12.00
Mount. bracket dist.: 83.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Pulley dia.: 66.50
Grooves/pulley: 4
Radius: 84.50
Radius 2: 84.50
B+: M6
Position/B+ in min.: 5
D+ Size: M5
Rotation: clockwise
Plug no.: PL31
W plug type: M5
Total length mm: 258.50
Pulley: SP
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN
Servicing: Ford

Files

  • OEM
    F032111742, r954f10300aa, 924f10300ab, 924f10k359aa, 924f10k359ab, 924FX10K359, 924fx10k359aa, 924x10300ab, 1031ir, 24293, 24293a, 24374a, 24396, 5027810, 5027848, 54022394, 54022394A, 54022394b, 54022394D, 54022394E, 54022396, 54022495, 54022537, 54022547, 54022555, 54022557, 54022564, 54022565, 54022575, 54022582, 54022583, 54022588, 54022610, 54022689, 54022708, 54022720, 63324293

  • Normalised article numbler
    a4001, a4002, alt4027, cal25102, cal25103, dra9881, f032111742, lea0042, lra00940, lra01475, lra02716, lra02738, lrb00161, qa1720, r954f10300aa, 8el011710001, 8el730017001, 8el732703001, 924f10300ab, 924f10k359aa, 924f10k359ab, 924fx10k359, 924fx10k359aa, 924x10300ab, 1031ir, 23681n, 24293, 24293a, 24374a, 24396, 30719ri, 56294, 210210, 210210a, 282514, 282781, 283503, 301031ri, 437787, 5027810, 5027848, 9036631, 32036631, 54022394, 54022394a, 54022394b, 54022394d, 54022394e, 54022396, 54022495, 54022537, 54022547, 54022555, 54022557, 54022564, 54022565, 54022575, 54022582, 54022583, 54022588, 54022610, 54022689, 54022708, 54022720, 63324293, 219116702, 219124702, 219168702, 0986036631, 0986039881, 054022708010
  • Description
    Voltage: 14
    Amp: 70
    Terminal: W
    Pulley dist.: 34.00
    Width/holder arm: 12.00
    Mount. bracket dist.: 83.00
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 66.50
    Grooves/pulley: 4
    Radius: 84.50
    Radius 2: 84.50
    B+: M6
    Position/B+ in min.: 5
    D+ Size: M5
    Rotation: clockwise
    Plug no.: PL31
    W plug type: M5
    Total length mm: 258.50
    Pulley: SP
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN
    Servicing: Ford

    Files

  • Suitable for these vehicles

    • OEM
      F032111742, r954f10300aa, 924f10300ab, 924f10k359aa, 924f10k359ab, 924FX10K359, 924fx10k359aa, 924x10300ab, 1031ir, 24293, 24293a, 24374a, 24396, 5027810, 5027848, 54022394, 54022394A, 54022394b, 54022394D, 54022394E, 54022396, 54022495, 54022537, 54022547, 54022555, 54022557, 54022564, 54022565, 54022575, 54022582, 54022583, 54022588, 54022610, 54022689, 54022708, 54022720, 63324293

    • Normalised article numbler
      a4001, a4002, alt4027, cal25102, cal25103, dra9881, f032111742, lea0042, lra00940, lra01475, lra02716, lra02738, lrb00161, qa1720, r954f10300aa, 8el011710001, 8el730017001, 8el732703001, 924f10300ab, 924f10k359aa, 924f10k359ab, 924fx10k359, 924fx10k359aa, 924x10300ab, 1031ir, 23681n, 24293, 24293a, 24374a, 24396, 30719ri, 56294, 210210, 210210a, 282514, 282781, 283503, 301031ri, 437787, 5027810, 5027848, 9036631, 32036631, 54022394, 54022394a, 54022394b, 54022394d, 54022394e, 54022396, 54022495, 54022537, 54022547, 54022555, 54022557, 54022564, 54022565, 54022575, 54022582, 54022583, 54022588, 54022610, 54022689, 54022708, 54022720, 63324293, 219116702, 219124702, 219168702, 0986036631, 0986039881, 054022708010
