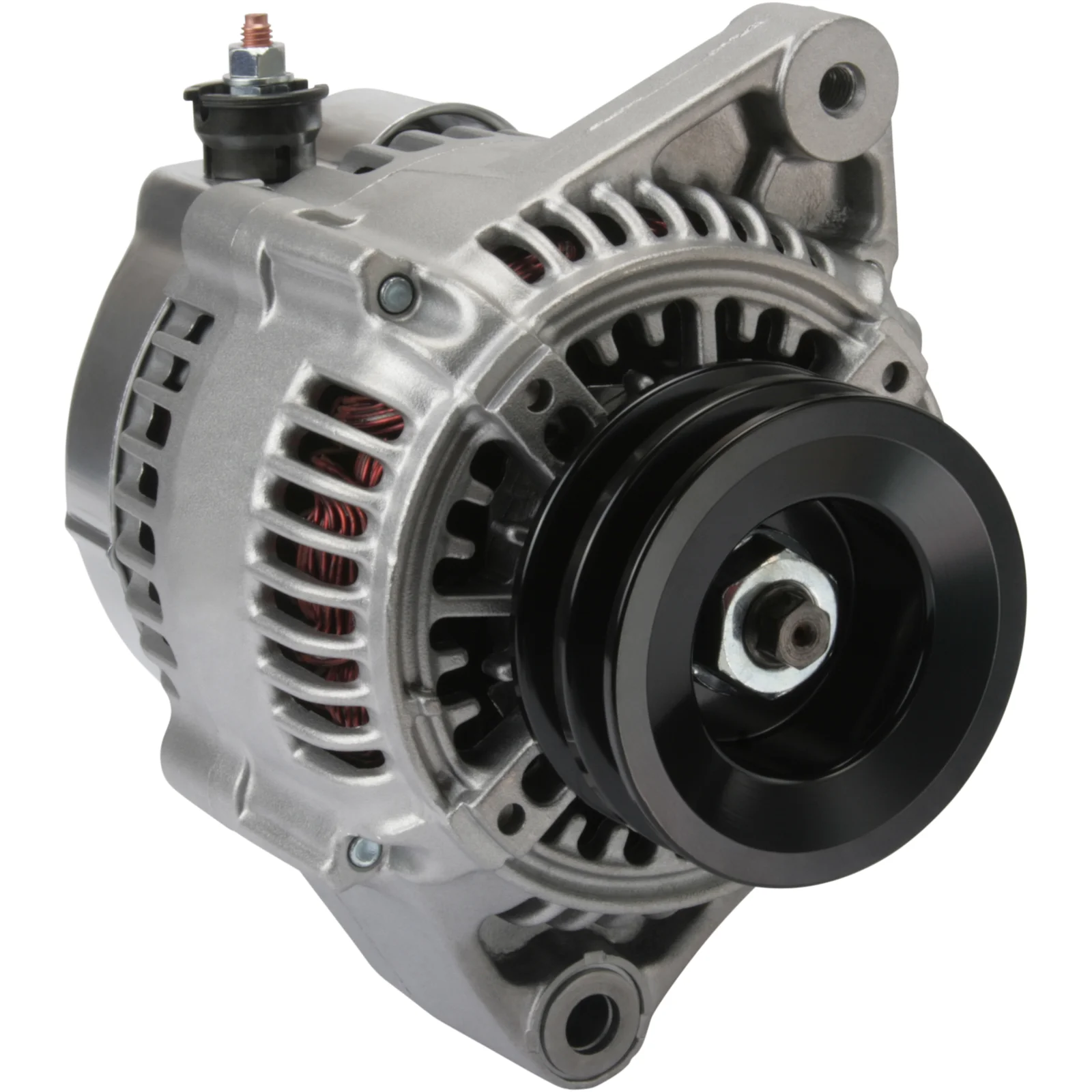

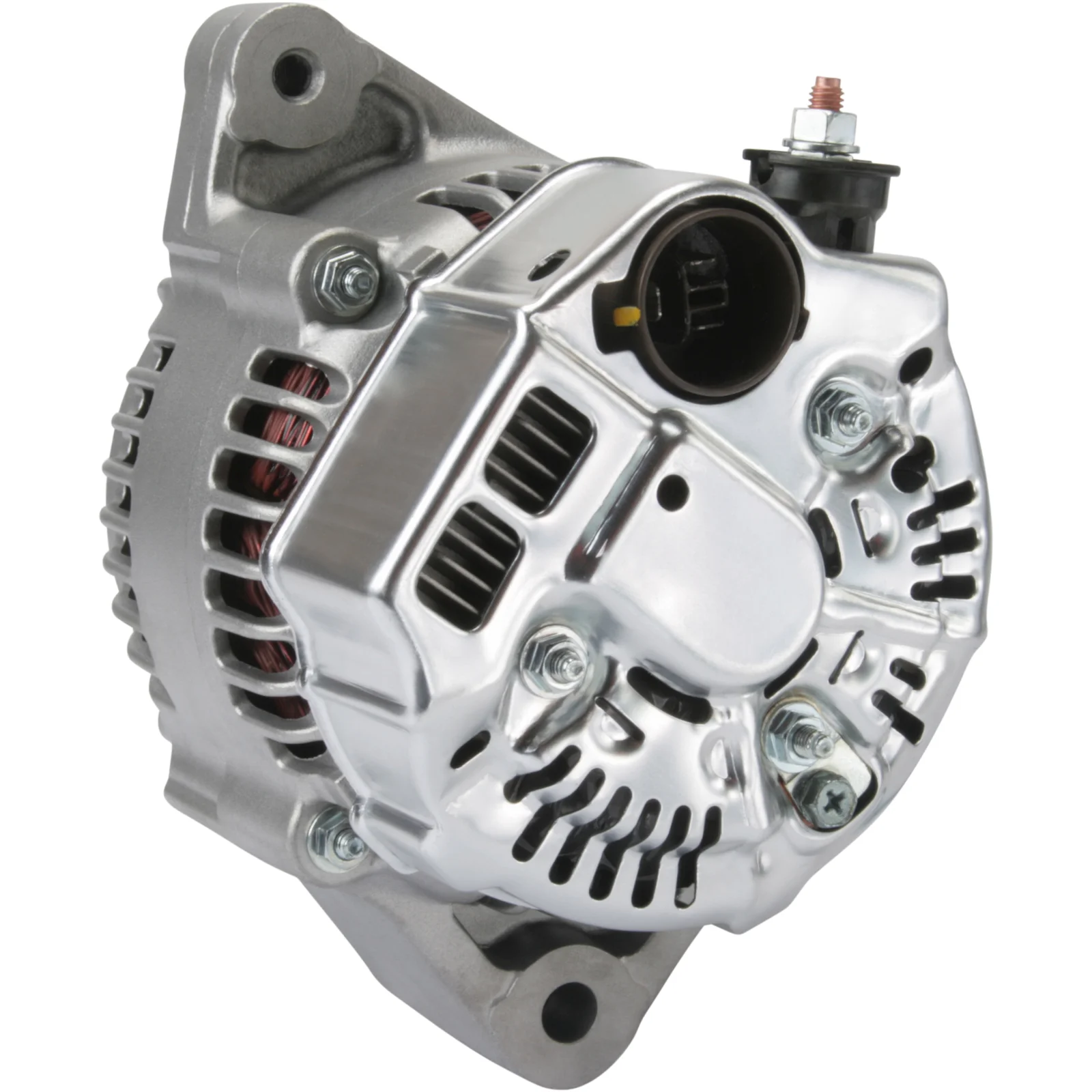

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111781

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley diameter: 79.50

Description

Voltage: 14
Amps: 80
Pulley dist.: 92.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. bracket hole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 79.50
Grooves/pulley: 2
Radius: 80.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 167.00
Alternator: DP
Voltage regulator type: IR
Prod. info: Reman
Servicing: Toyota

Files

  • OEM
    F032111781, 27060-17030, 100211-8410

  • Normalised article numbler
    a6361, f032111781, j5112091, lra01859, 8el737482001, 5967, 119638, 283717, 401295ri, 12060589, 535120802, 0986045921, 1002118410, 2706017030, 944390512910
  • Description
    Voltage: 14
    Amps: 80
    Pulley dist.: 92.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. bracket hole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 79.50
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 167.00
    Alternator: DP
    Voltage regulator type: IR
    Prod. info: Reman
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111781, 27060-17030, 100211-8410

    • Normalised article numbler
      a6361, f032111781, j5112091, lra01859, 8el737482001, 5967, 119638, 283717, 401295ri, 12060589, 535120802, 0986045921, 1002118410, 2706017030, 944390512910
