HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111806

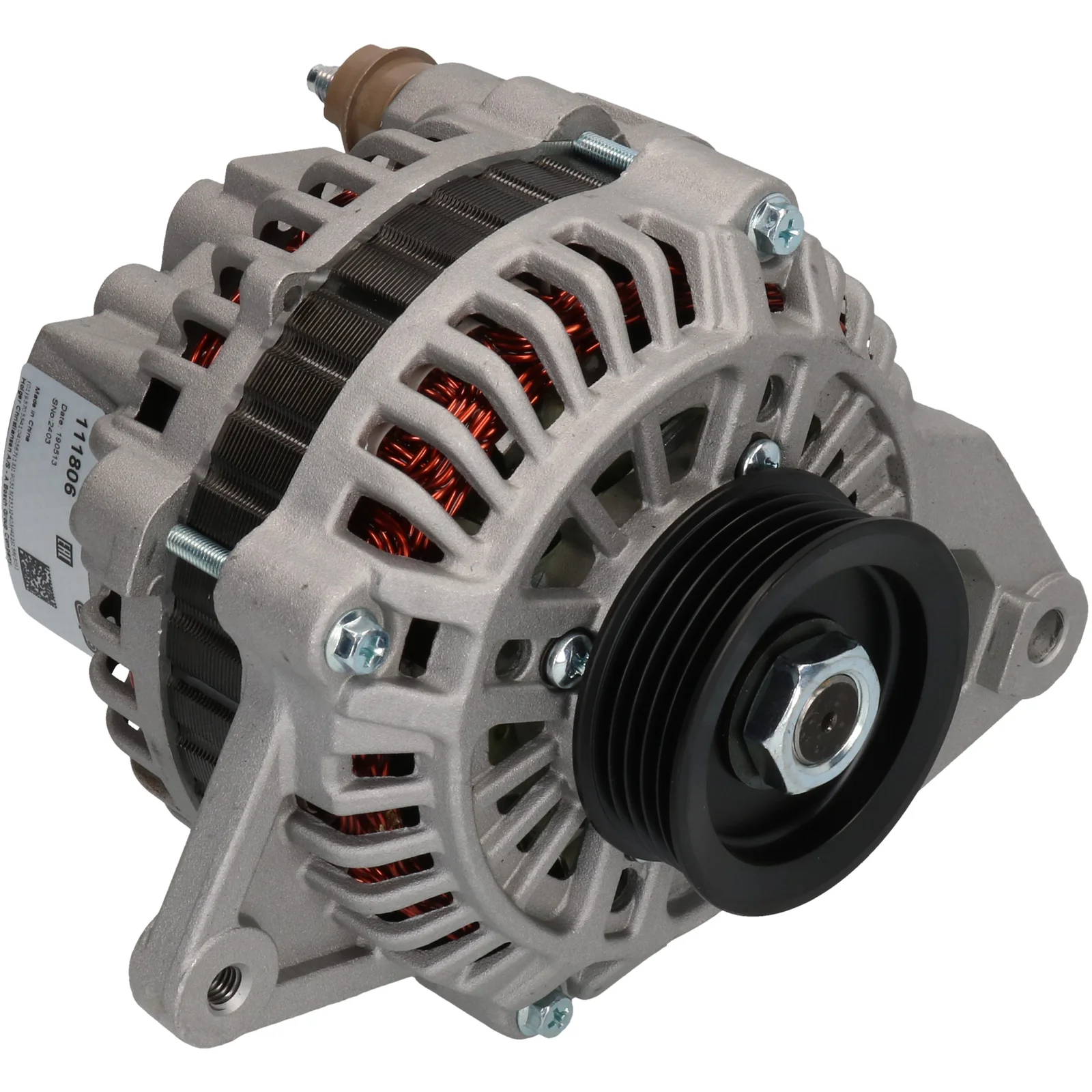

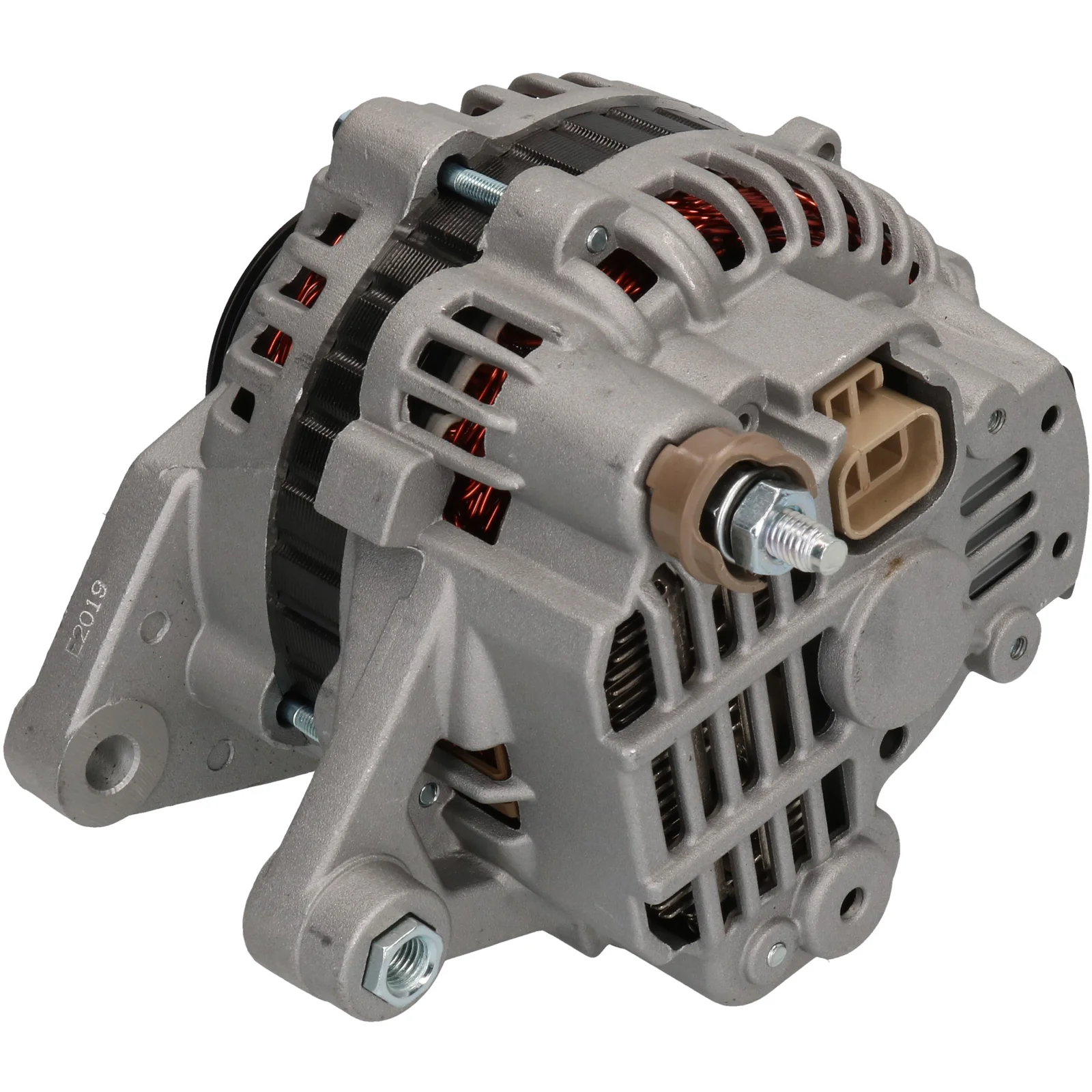

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 54.80

Description

Voltage: 14
Amp: 90
Pulley dist.: 25.00
Width/holder arm: 17.00
Mount. bracket dist.: 54.80
Bracket hole: 10.50
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: M8
Pulley dia.: 65.00
Grooves/pulley: 5
Radius: 97.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 168.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A003TA0791, A003TA0791A, a3ta0791, a3ta0791a, F032111806, ja1180ir, md313395, md350608

  • Normalised article numbler
    a003ta0791, a003ta0791a, a3ta0791, a3ta0791a, a5016, al4018x, alt10017, alt3508, bao3249, cal35214, dra3696, f032111806, f042303069, f042a03069, ja1180ir, lra02743, lrb00234, md313395, md350608, qa4212, 8el737324001, 5668, 13692, 13692n, 13692r, 119703, 210623, 210623a, 283548, 401180ri, 1214701mi, 9051556, 9212702, 12060204, 20110234, 226143902
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 25.00
    Width/holder arm: 17.00
    Mount. bracket dist.: 54.80
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 65.00
    Grooves/pulley: 5
    Radius: 97.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 168.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TA0791, A003TA0791A, a3ta0791, a3ta0791a, F032111806, ja1180ir, md313395, md350608

    • Normalised article numbler
      a003ta0791, a003ta0791a, a3ta0791, a3ta0791a, a5016, al4018x, alt10017, alt3508, bao3249, cal35214, dra3696, f032111806, f042303069, f042a03069, ja1180ir, lra02743, lrb00234, md313395, md350608, qa4212, 8el737324001, 5668, 13692, 13692n, 13692r, 119703, 210623, 210623a, 283548, 401180ri, 1214701mi, 9051556, 9212702, 12060204, 20110234, 226143902
