HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111830

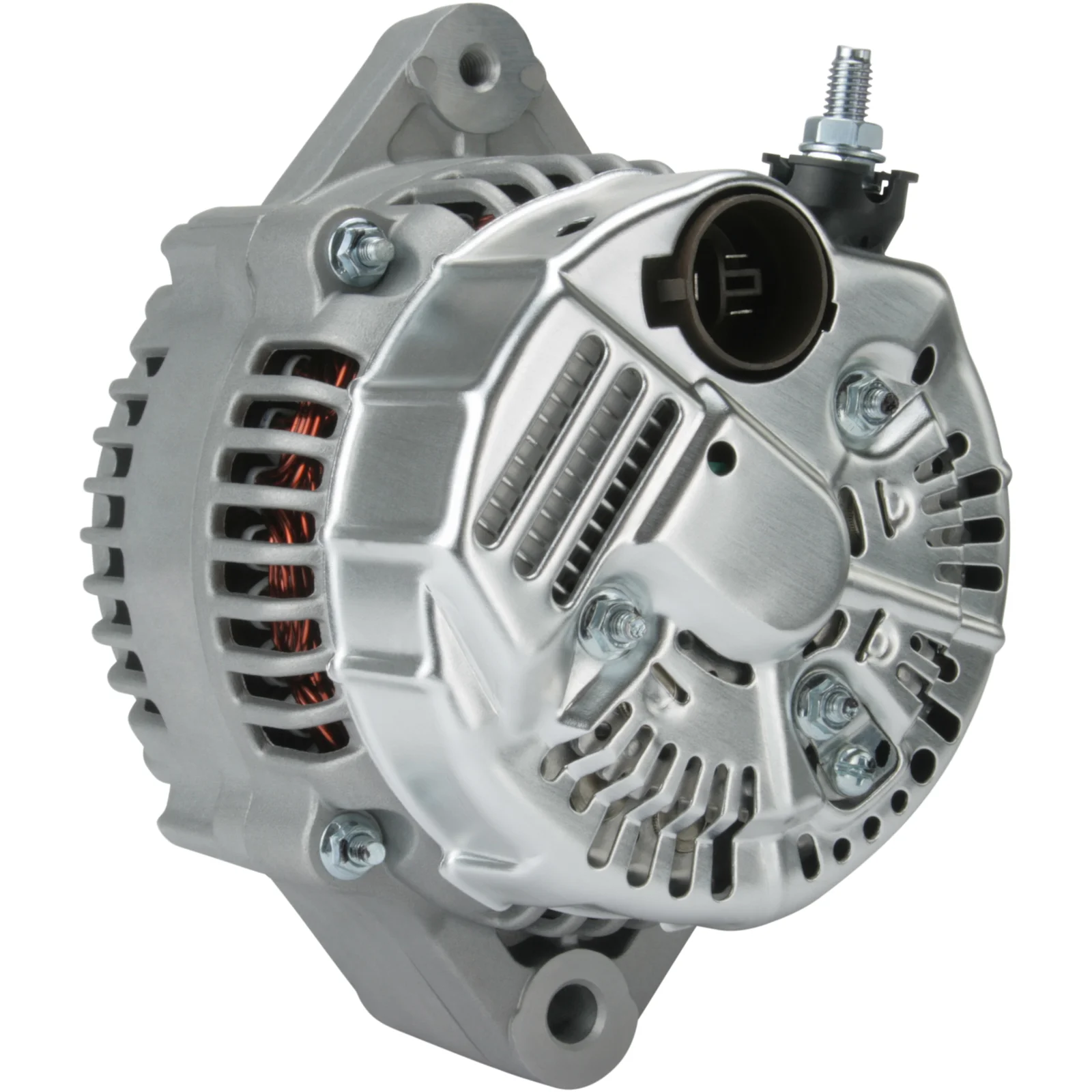

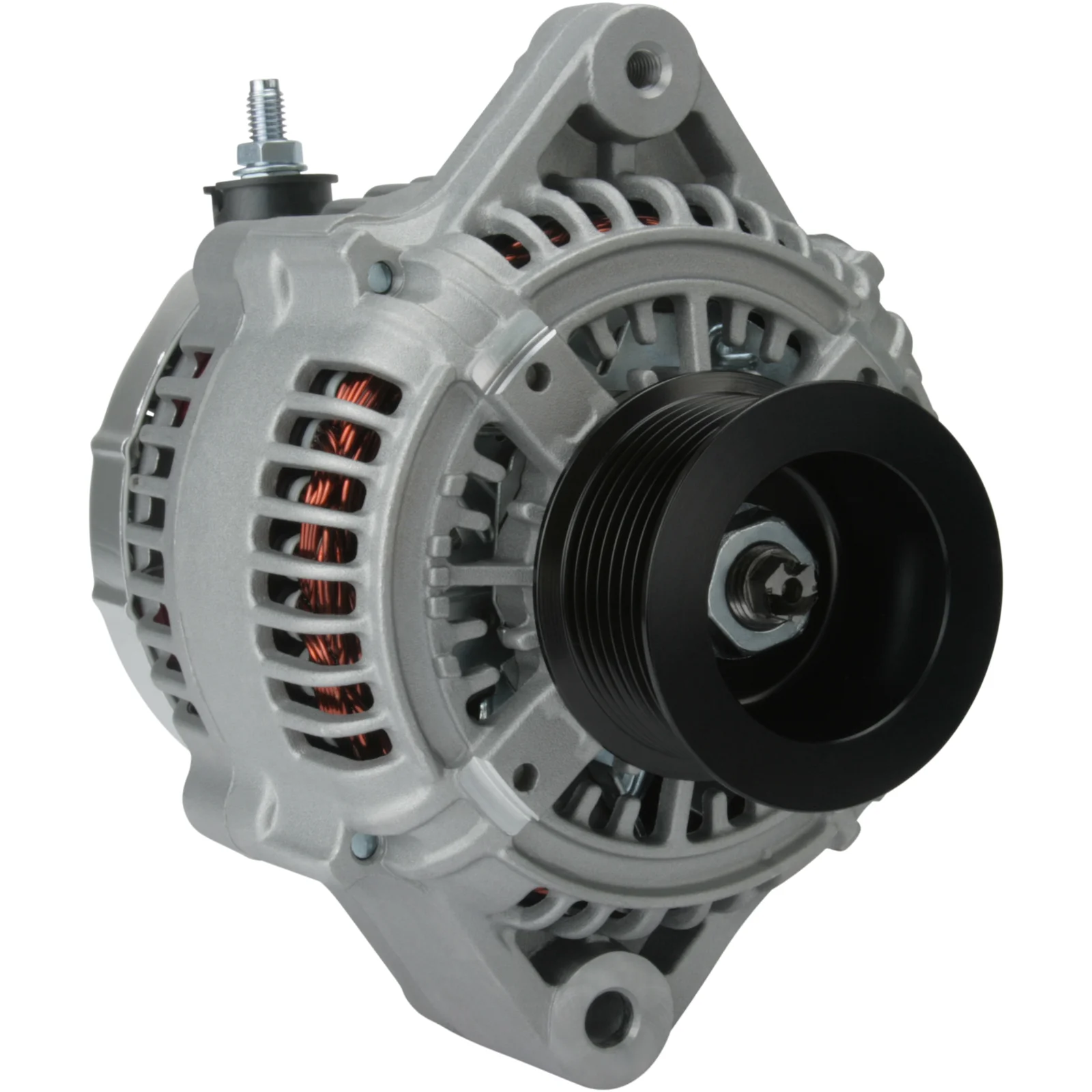

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Pulley diameter: 62.50

Description

Voltage: 14
Amp: 140
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.50
Grooves/pulley: 8
Radius: 82.50
Radius 2: 85.50
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 178.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: John Deere lawn equipment w/ cooling engine

Files

  • OEM
    F032111830, ja1616ir, re46608, ty6762, 100211-6420, 501380

  • Normalised article numbler
    a6515s, alt30012, cal40214, dan2036, f032111830, ja1616ir, lra01943, re46608, ty6762, 8el011712811, 12195, 12195n, 12195r, 119660, 283835, 501380, 1002116420, 5861051402
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.50
    Grooves/pulley: 8
    Radius: 82.50
    Radius 2: 85.50
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 178.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: John Deere lawn equipment w/ cooling engine

    Files

  • Suitable for these vehicles

    • OEM
      F032111830, ja1616ir, re46608, ty6762, 100211-6420, 501380

    • Normalised article numbler
      a6515s, alt30012, cal40214, dan2036, f032111830, ja1616ir, lra01943, re46608, ty6762, 8el011712811, 12195, 12195n, 12195r, 119660, 283835, 501380, 1002116420, 5861051402
