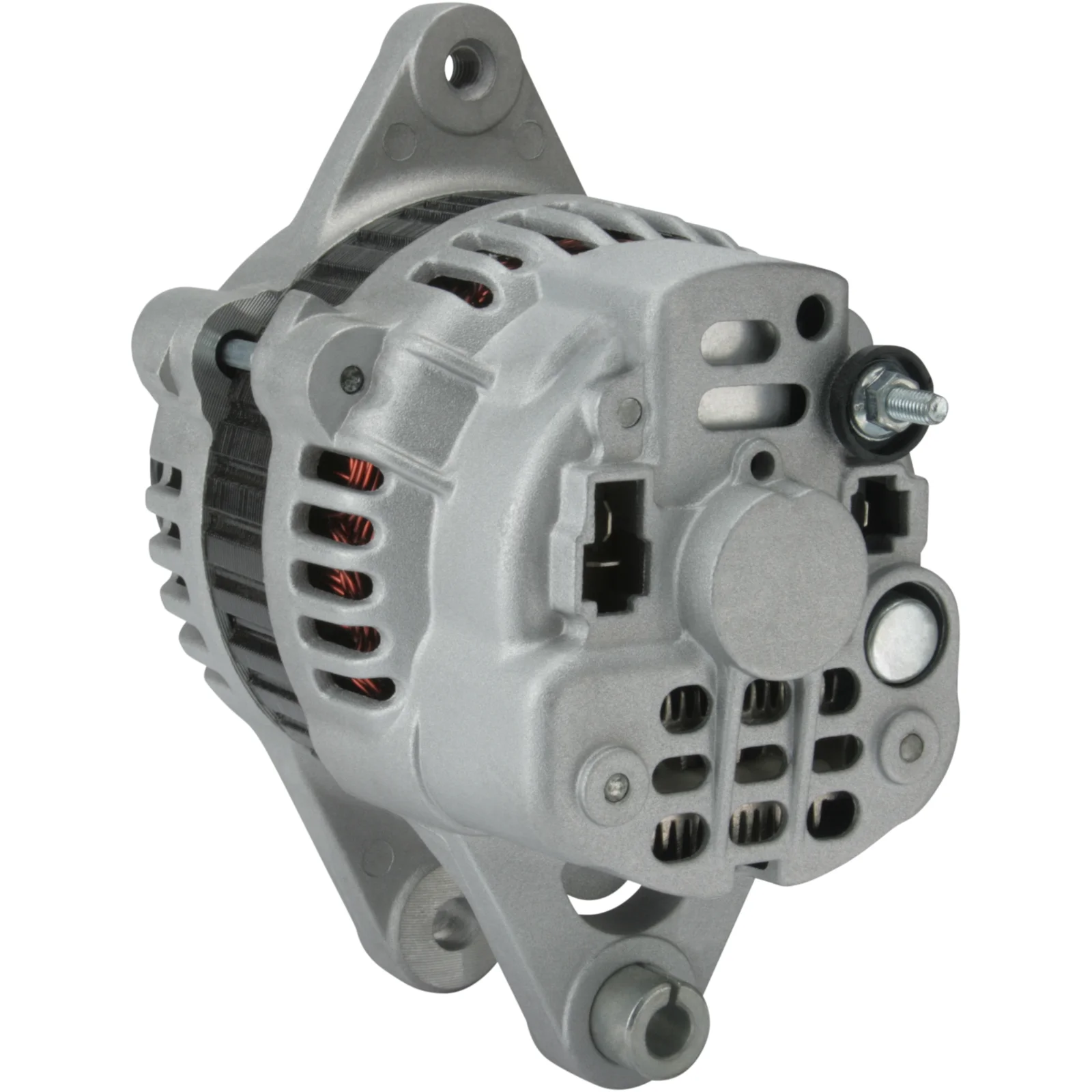

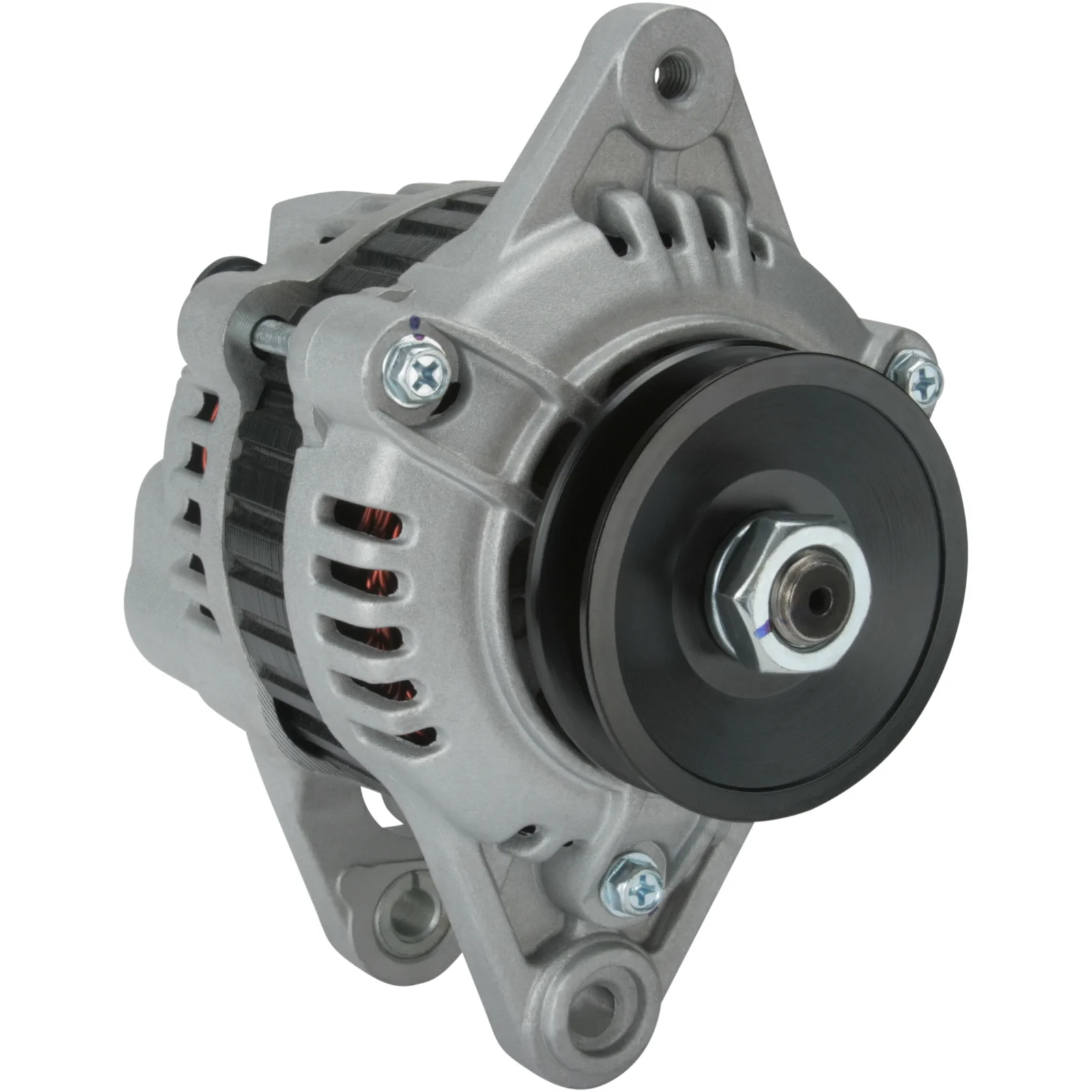

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111832

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 40, Rotation: CW, Mount. bracket dist.: 41.00

Description

Voltage: 14
Amp: 40
Terminal: W
Pulley dist.: 42.00
Width/holder arm: 16.70
Mount. bracket dist.: 41.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 70.20
Grooves/pulley: 1
Radius: 74.50
Radius 2: 70.00
B+: M5
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL09
Total length mm: 154.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Files

  • OEM
    A000T25171, A000T25271, A000T25371, A000T25373, a0t25171, a0t25271, a0t25371, a0t25373, F032111832, STM1243, 432804, 435081, 435752, 438844

  • Normalised article numbler
    a000t25171, a000t25271, a000t25371, a000t25373, a0t25171, a0t25271, a0t25371, a0t25373, alt31112, cal35165, dra0464, f032111832, lra01543, stm1243, 12231n, 12231r, 282645, 432804, 435081, 435752, 438844, 553044ri, 1239201mi, 12061077
  • Description
    Voltage: 14
    Amp: 40
    Terminal: W
    Pulley dist.: 42.00
    Width/holder arm: 16.70
    Mount. bracket dist.: 41.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 70.20
    Grooves/pulley: 1
    Radius: 74.50
    Radius 2: 70.00
    B+: M5
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL09
    Total length mm: 154.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A000T25171, A000T25271, A000T25371, A000T25373, a0t25171, a0t25271, a0t25371, a0t25373, F032111832, STM1243, 432804, 435081, 435752, 438844

    • Normalised article numbler
      a000t25171, a000t25271, a000t25371, a000t25373, a0t25171, a0t25271, a0t25371, a0t25373, alt31112, cal35165, dra0464, f032111832, lra01543, stm1243, 12231n, 12231r, 282645, 432804, 435081, 435752, 438844, 553044ri, 1239201mi, 12061077
