Article no.: F032111872

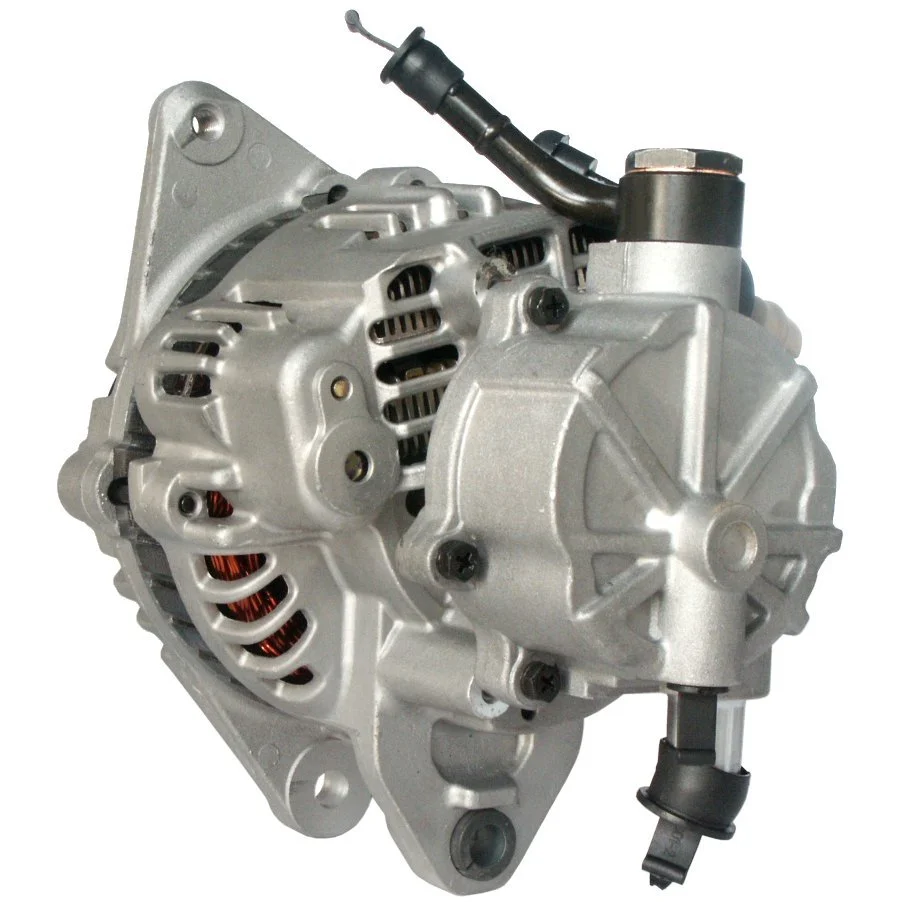

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Mounting bracket dist.: 55.00

Description

Voltage: 14
Amp: 65
Pulley diameter: 42.00
Width/holder arm: 13.00
Mounting bracket diameter: 55.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M8
Pulley diameter: 79.00
Grooves/pulley: 2
Radius: 91.00
Radius 2: 88.00
B+: M8
Position/B+ in minutes: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 226.00
Pulley: DP
Fan: IF
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN
Servicing: Mitsubishi

Files

  • OEM
    A002T81499, A002TN0399, A002TN0499, A002TN0499ZT, A2T81499, a2tn0399, a2tn0499, a2tn0499zt, F032111872, ja1179ir, md304129, MD306648, md313939

  • Normalised article numbler
    a002t81499, a002tn0399, a002tn0499, a002tn0499zt, a2t81499, a2tn0399, a2tn0499, a2tn0499zt, a5001, a5008, a5092, alt31055, altv018, cal35109, dra3469, dra3469n, dra3879, f032111872, f042303102, f042a03102, ja1179ir, lra01533, lra01556, md304129, md306648, md313939, mg472, s1190s, 8el737323001, 5667, 12664, 12664n, 12664r, 119667, 210274, 210274a, 210622, 210622a, 282622, 282666, 401179ri, 12060521, 526123652, 0986081740
  • Description
    Voltage: 14
    Amp: 65
    Pulley diameter: 42.00
    Width/holder arm: 13.00
    Mounting bracket diameter: 55.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 79.00
    Grooves/pulley: 2
    Radius: 91.00
    Radius 2: 88.00
    B+: M8
    Position/B+ in minutes: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 226.00
    Pulley: DP
    Fan: IF
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A002T81499, A002TN0399, A002TN0499, A002TN0499ZT, A2T81499, a2tn0399, a2tn0499, a2tn0499zt, F032111872, ja1179ir, md304129, MD306648, md313939

    • Normalised article numbler
      a002t81499, a002tn0399, a002tn0499, a002tn0499zt, a2t81499, a2tn0399, a2tn0499, a2tn0499zt, a5001, a5008, a5092, alt31055, altv018, cal35109, dra3469, dra3469n, dra3879, f032111872, f042303102, f042a03102, ja1179ir, lra01533, lra01556, md304129, md306648, md313939, mg472, s1190s, 8el737323001, 5667, 12664, 12664n, 12664r, 119667, 210274, 210274a, 210622, 210622a, 282622, 282666, 401179ri, 12060521, 526123652, 0986081740
