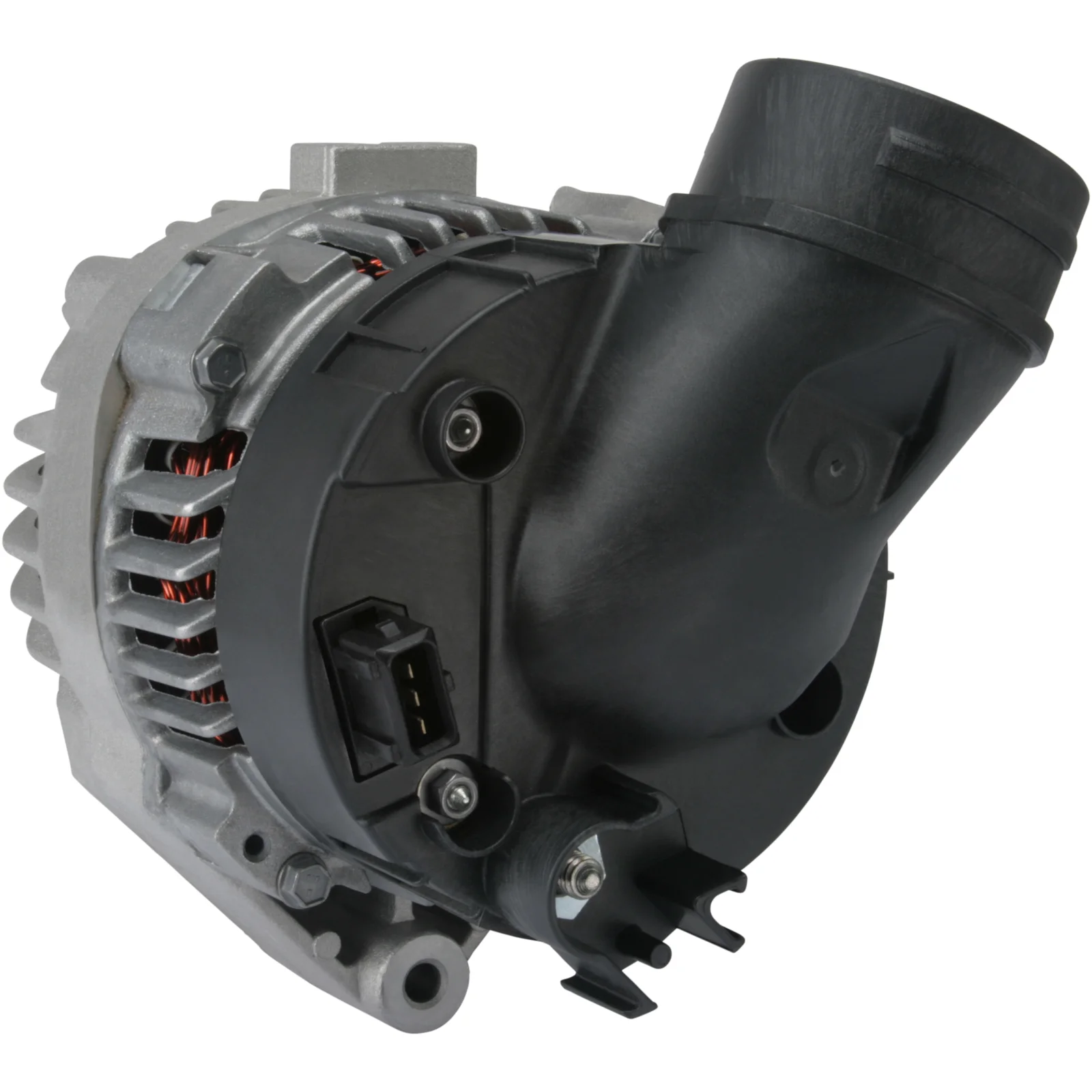

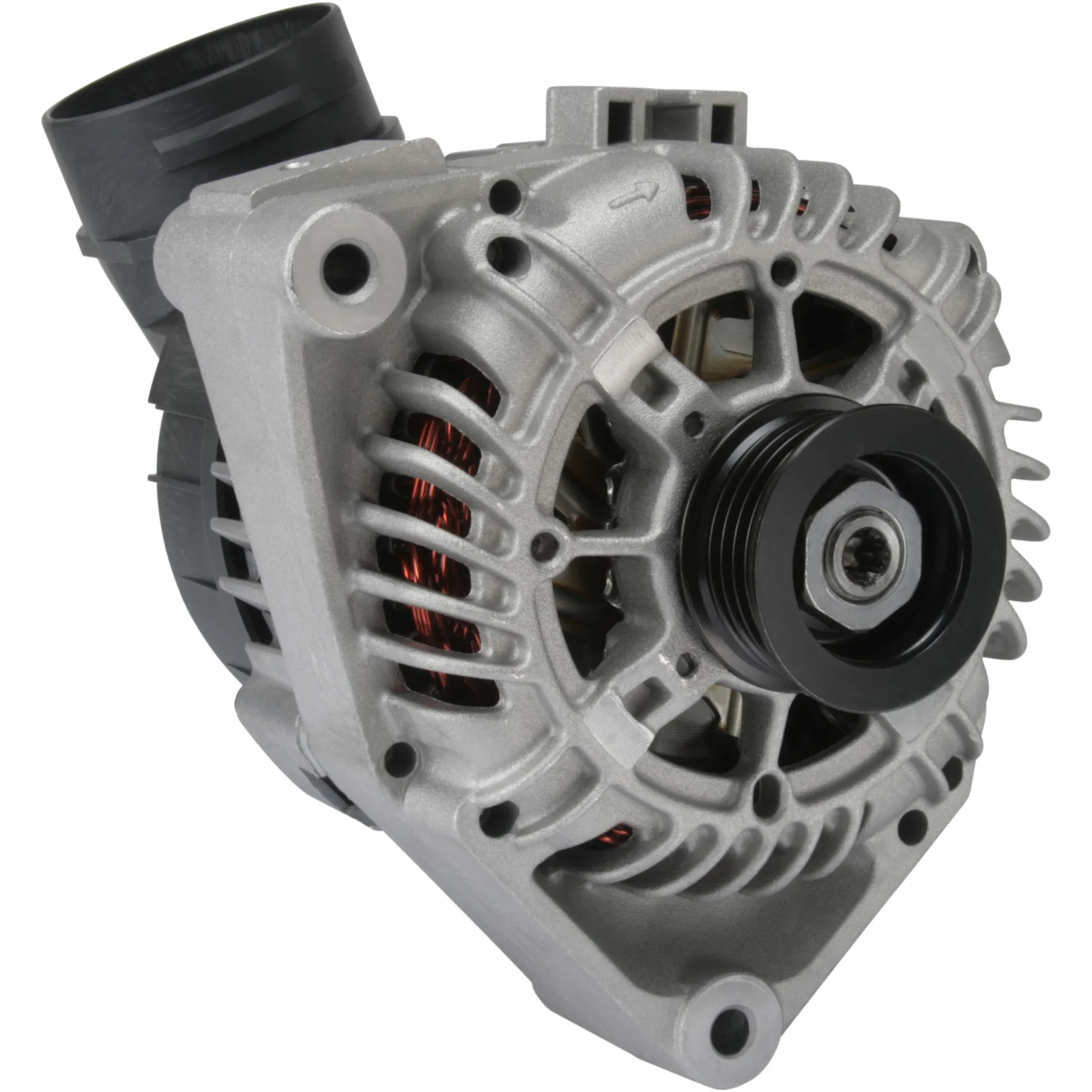

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111947

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 95, Rotation: CW, Pulley diameter: 46.30

Description

Voltage: 14
Amps: 95
Pulley distance: 77.30
Width/holder arm: 56.00
Bracket hole: 8.20
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: 8.20
Pulley diameter: 46.30
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 33
D+ Size: Plug
Rotation: CW
Plug no.: PL52
Total length mm: 218.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: BMW

Files

  • OEM
    a13vi130, a13vi150, F032111947, 1400ir, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12312246070, 12312246078, 12312246572, 12312246573

  • Normalised article numbler
    a13vi130, a13vi150, a3065, alth070, cal15239, dra4058, f032111947, f042a0h070, lra02188, na528, 8el011710331, 8el737603001, 1400ir, 4562, 23188r, 119030, 200141, 210522, 210522a, 284650, 301400ri, 436665, 439093, 746044, 746844, 839042, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12090019, 215144952, 215510095, 0986049620, 12312246070, 12312246078, 12312246572, 12312246573, 944390901160
  • Description
    Voltage: 14
    Amps: 95
    Pulley distance: 77.30
    Width/holder arm: 56.00
    Bracket hole: 8.20
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: 8.20
    Pulley diameter: 46.30
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 33
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL52
    Total length mm: 218.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: BMW

    Files

  • Suitable for these vehicles

    • OEM
      a13vi130, a13vi150, F032111947, 1400ir, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12312246070, 12312246078, 12312246572, 12312246573

    • Normalised article numbler
      a13vi130, a13vi150, a3065, alth070, cal15239, dra4058, f032111947, f042a0h070, lra02188, na528, 8el011710331, 8el737603001, 1400ir, 4562, 23188r, 119030, 200141, 210522, 210522a, 284650, 301400ri, 436665, 439093, 746044, 746844, 839042, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12090019, 215144952, 215510095, 0986049620, 12312246070, 12312246078, 12312246572, 12312246573, 944390901160
