HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111956

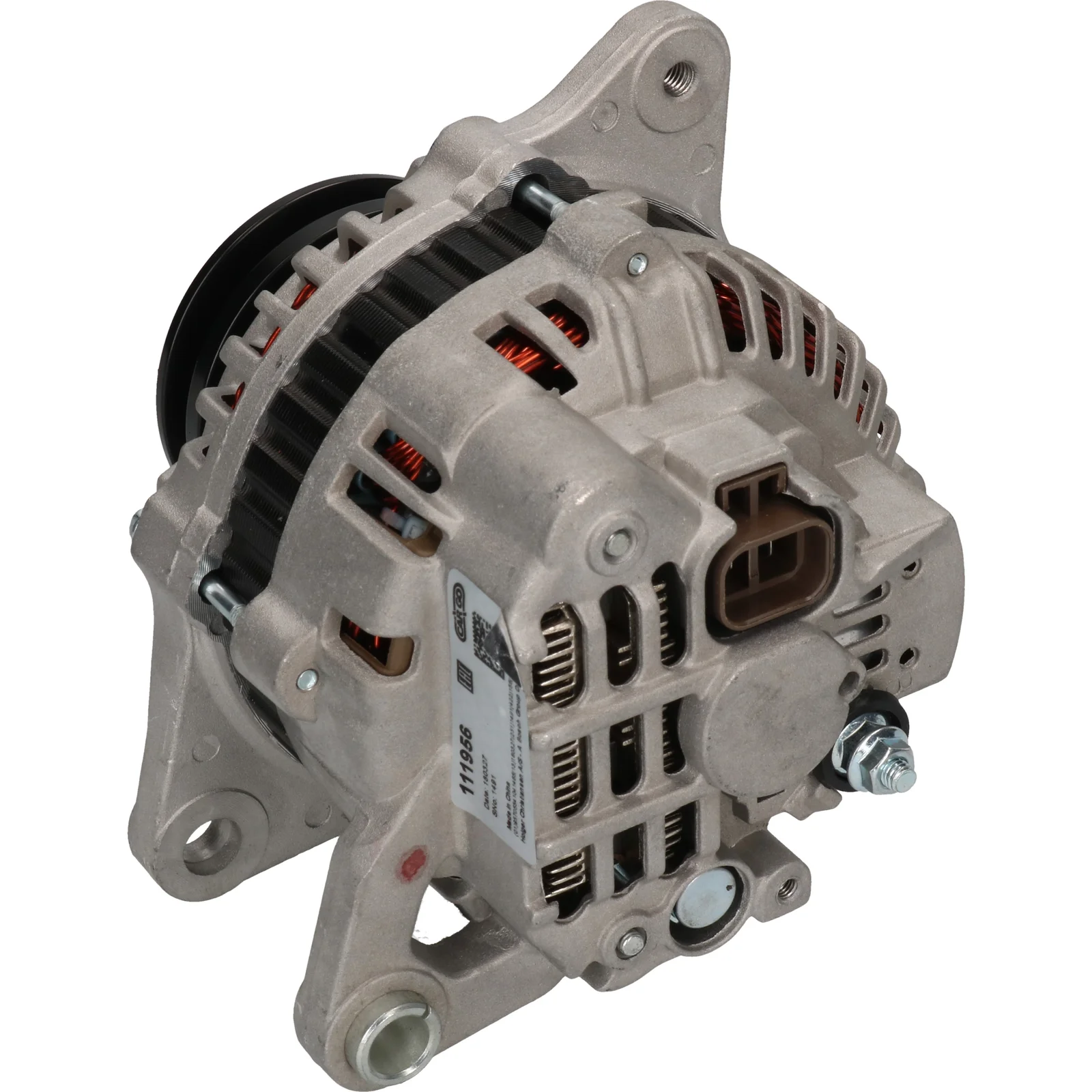

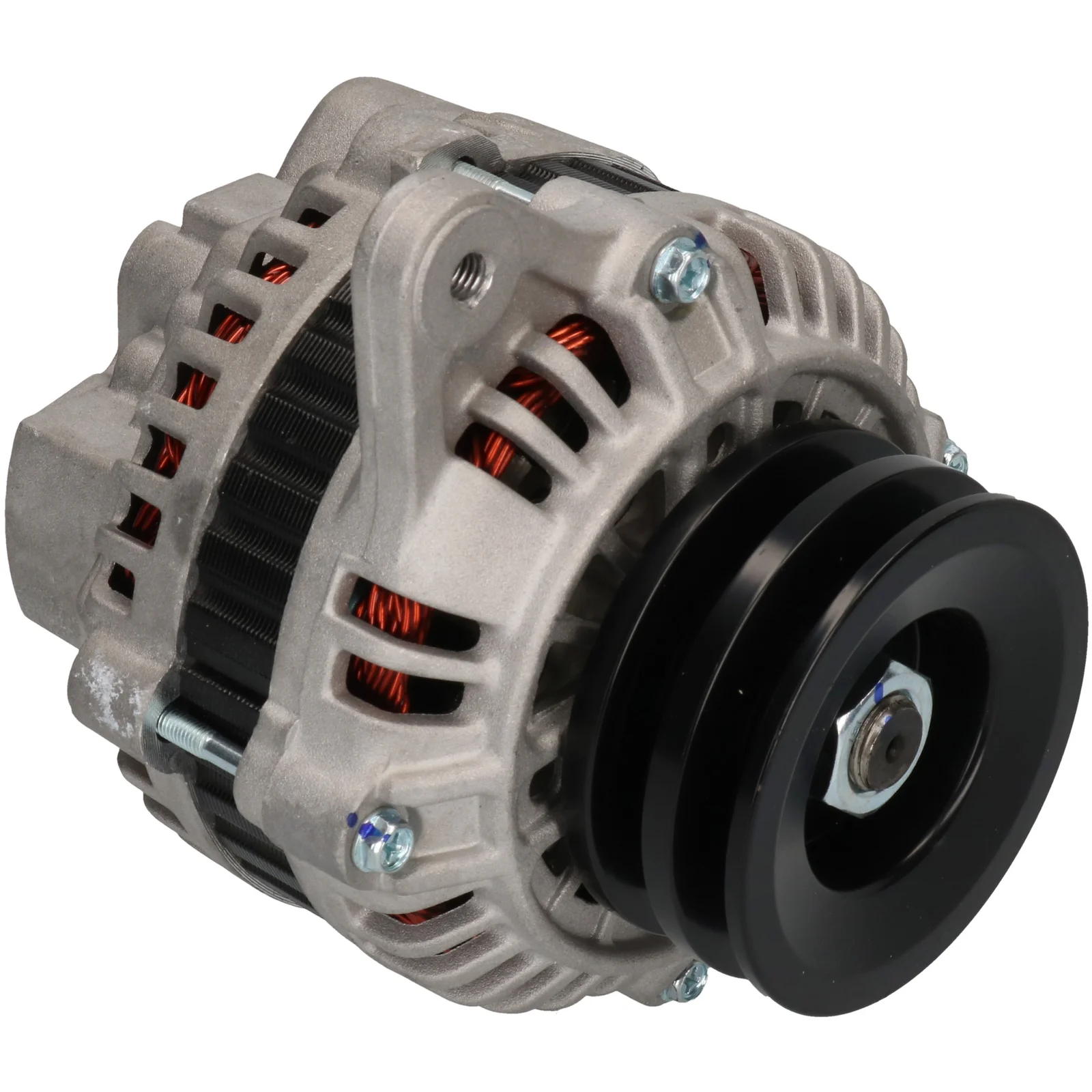

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distance: 55.00

Description

Voltage: 14
Amp: 75
Pulley dist.: 41.00
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 12.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: M8
Pulley dia.: 87.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 89.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 167.00
Terminal type: L-S
Pulley: DP
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Files

  • OEM
    A003T08699, A003T09199, A003T09698, A003T09699, A003TB1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, F032111956, ja1375ir, lra0469, me200696, me200698, me201838, ME202971

  • Normalised article numbler
    a003t08699, a003t09199, a003t09698, a003t09699, a003tb1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, a5017, a5386pr, alt3040, alt31006, cal35129, dra3473, dra3473n, f032111956, f042303011, f042511340, f042a03011, ja1375ir, lra0469, lrb00237, me200696, me200698, me201838, me202971, qa2279, 8el012428061, 8el737596001, 8el737597001, 5713, 5714, 12626n, 12636r, 111683, 210491, 210491a, 282799, 283538, 401375ri, 12060202, 20130169, 226142752, 0986044661
  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 41.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.00
    Bracket hole: 12.50
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 87.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 89.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 167.00
    Terminal type: L-S
    Pulley: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A003T08699, A003T09199, A003T09698, A003T09699, A003TB1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, F032111956, ja1375ir, lra0469, me200696, me200698, me201838, ME202971

    • Normalised article numbler
      a003t08699, a003t09199, a003t09698, a003t09699, a003tb1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, a5017, a5386pr, alt3040, alt31006, cal35129, dra3473, dra3473n, f032111956, f042303011, f042511340, f042a03011, ja1375ir, lra0469, lrb00237, me200696, me200698, me201838, me202971, qa2279, 8el012428061, 8el737596001, 8el737597001, 5713, 5714, 12626n, 12636r, 111683, 210491, 210491a, 282799, 283538, 401375ri, 12060202, 20130169, 226142752, 0986044661
