Article no.: F032111960

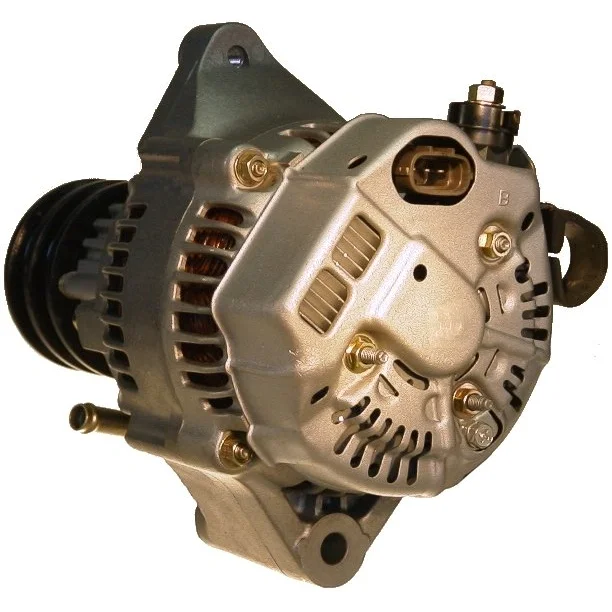

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 80, Rotation: CW, Pulley diameter: 76.50

Description

Voltage: 14
Amp: 80
Pulley dist.: 147.00
Width/holder arm: 71.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: M8
Pulley dia.: 76.50
Grooves/pulley: 2
Radius: 79.50
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 229.00
Pulley: Alternator
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032111960, 27040-54350, 100213-1920, 100213-2280, 100213-2440, 100213-2450, 100213-2460, 100213-2520, 100213-2660

  • Normalised article numbler
    alt30017, alt30025, f032111960, 8el737523001, 5993, 119705, 401355ri, 235155802, 1002131920, 1002132280, 1002132440, 1002132450, 1002132460, 1002132520, 1002132660, 2704054350
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 147.00
    Width/holder arm: 71.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 2
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 76.50
    Grooves/pulley: 2
    Radius: 79.50
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 229.00
    Pulley: Alternator
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111960, 27040-54350, 100213-1920, 100213-2280, 100213-2440, 100213-2450, 100213-2460, 100213-2520, 100213-2660

    • Normalised article numbler
      alt30017, alt30025, f032111960, 8el737523001, 5993, 119705, 401355ri, 235155802, 1002131920, 1002132280, 1002132440, 1002132450, 1002132460, 1002132520, 1002132660, 2704054350
