HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112068

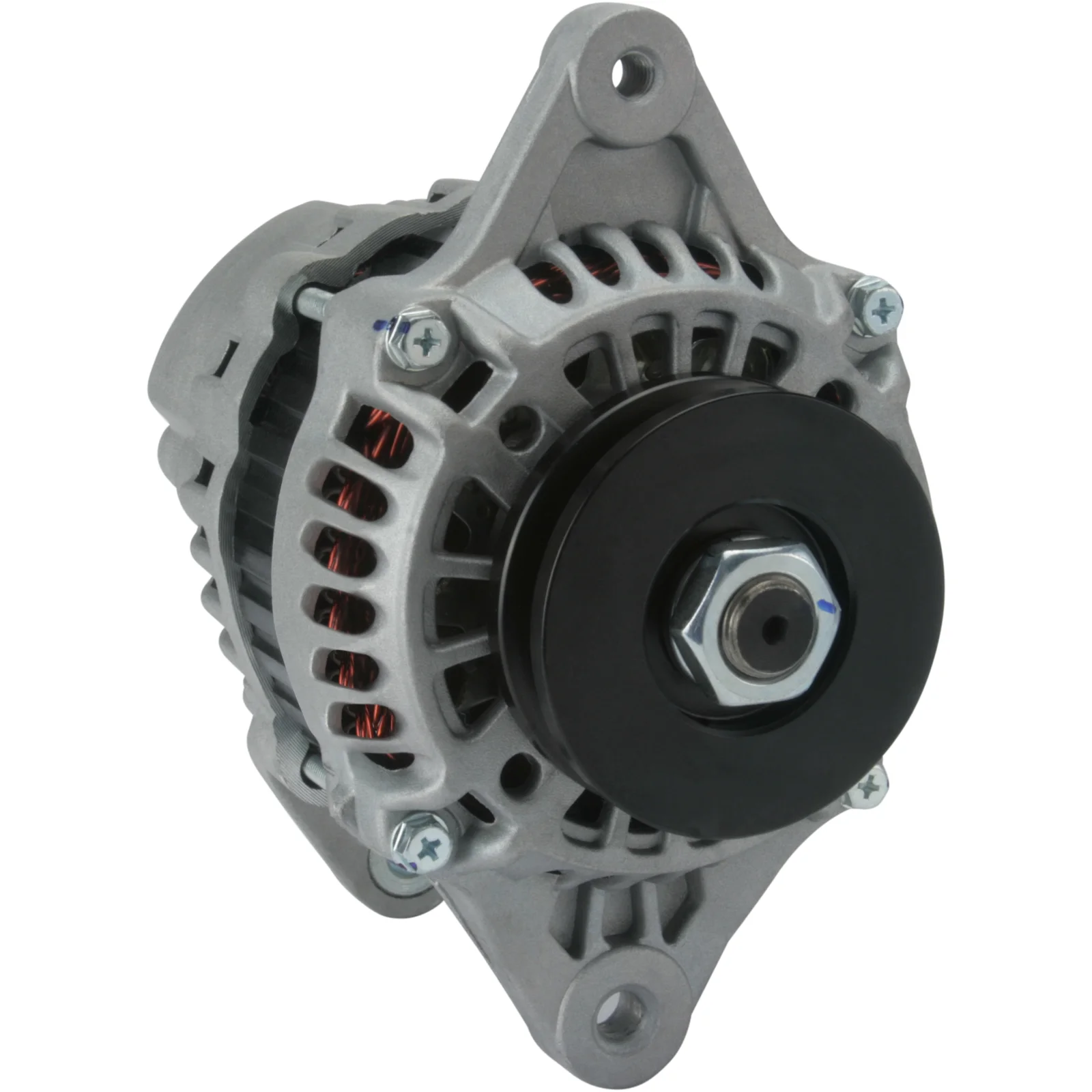

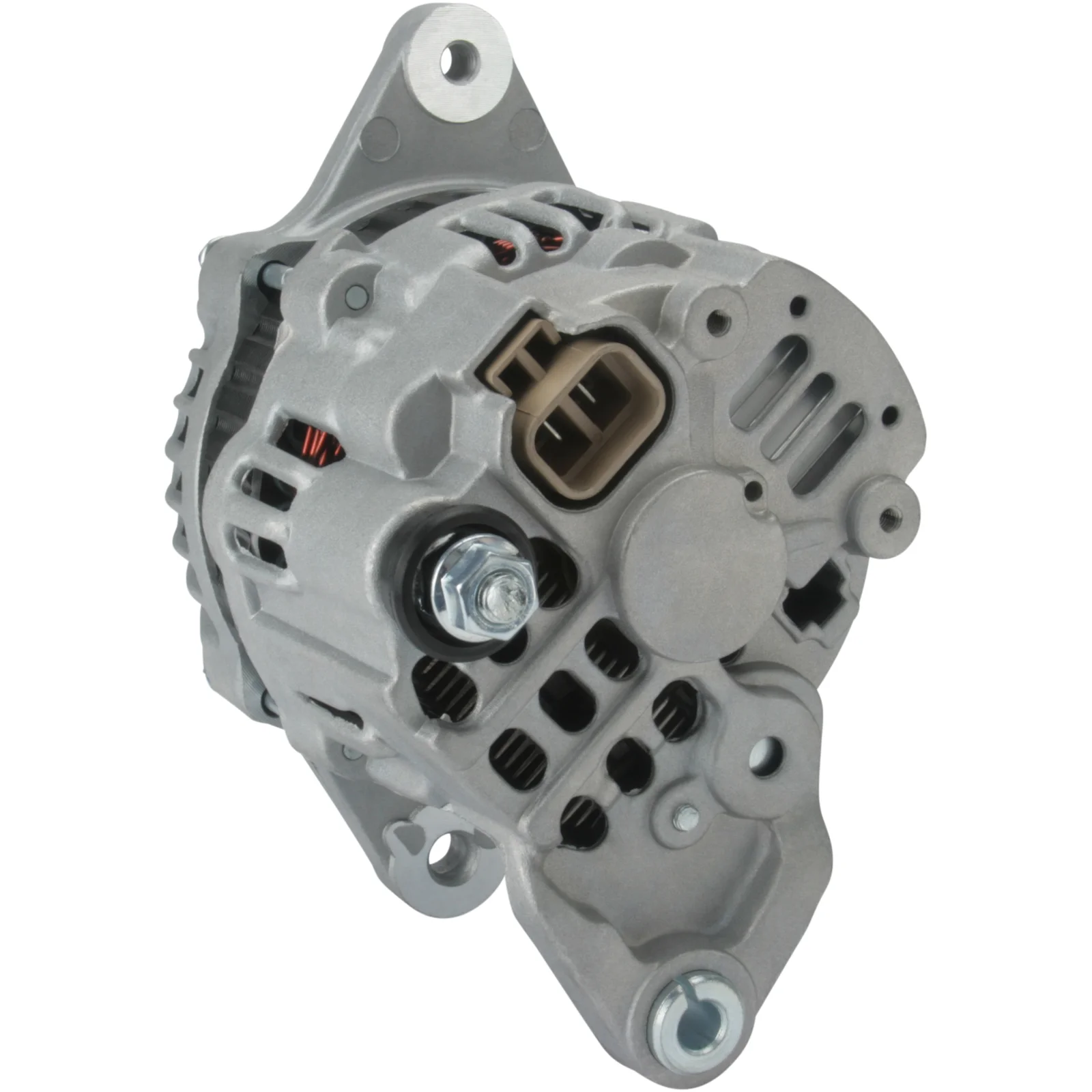

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 35, Rotation: CW, Mounting bracket distance: 81.20

Description

Voltage: 14
Amp: 35
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.20
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 70.30
Grooves/pulley: 1
Radius: 78.50
Radius 2: 77.00
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 163.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: TCM

Files

  • OEM
    A007T03371, A007T03371A, a7t03371, a7t03371a, F032112068, 23100-50k10, 23100-fu410

  • Normalised article numbler
    a007t03371, a007t03371a, a5170, a7t03371, a7t03371a, ada966, dra3888, f032112068, lra01994, 8el737630001, 5737, 12062mi, 12136, 12136n, 23100fu410, 119623, 283898, 401412ri, 2310050k10, 12061084, 12062011, 20140101, 527110352
  • Description
    Voltage: 14
    Amp: 35
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.20
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 70.30
    Grooves/pulley: 1
    Radius: 78.50
    Radius 2: 77.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 163.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: TCM

    Files

  • Suitable for these vehicles

    • OEM
      A007T03371, A007T03371A, a7t03371, a7t03371a, F032112068, 23100-50k10, 23100-fu410

    • Normalised article numbler
      a007t03371, a007t03371a, a5170, a7t03371, a7t03371a, ada966, dra3888, f032112068, lra01994, 8el737630001, 5737, 12062mi, 12136, 12136n, 23100fu410, 119623, 283898, 401412ri, 2310050k10, 12061084, 12062011, 20140101, 527110352
