HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112112

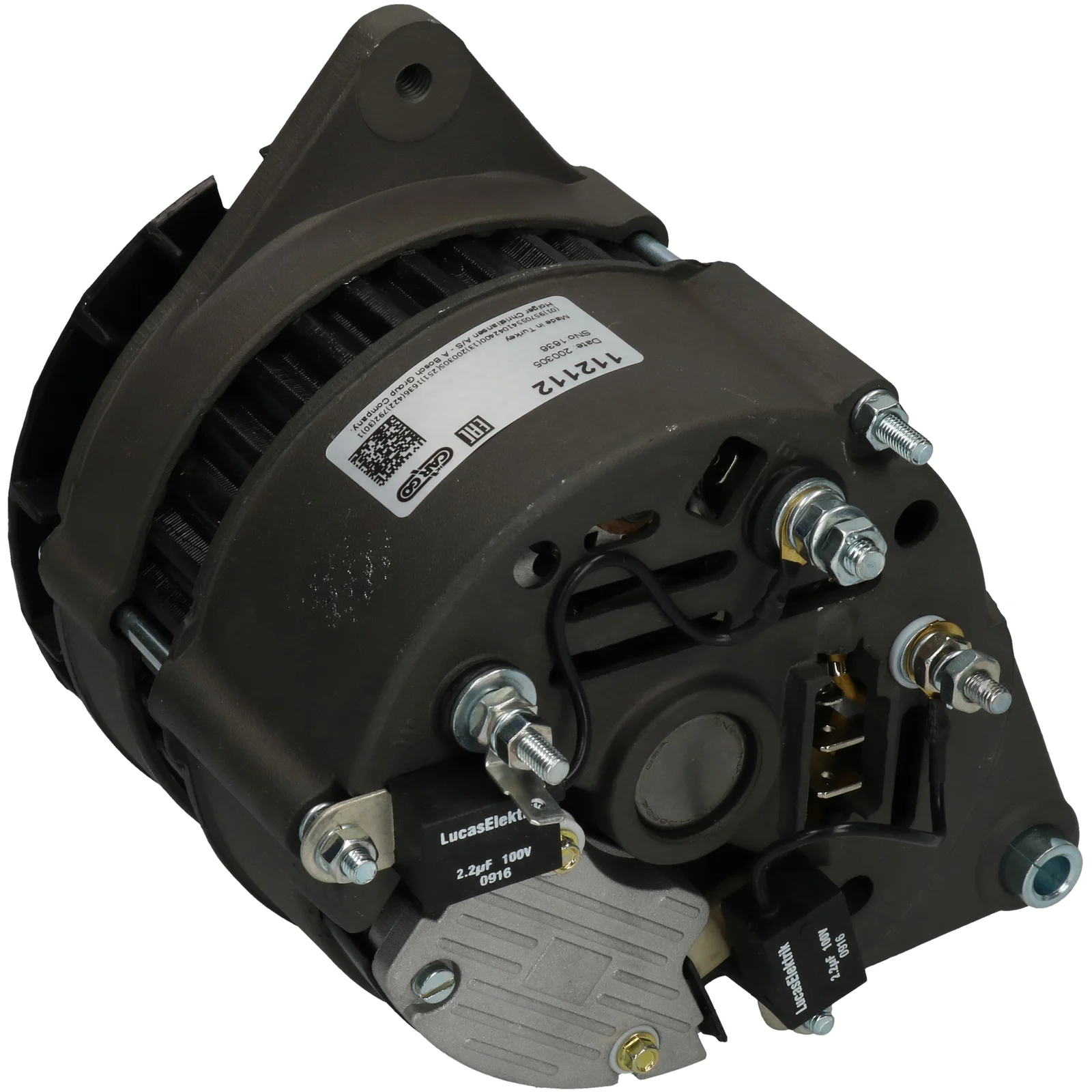

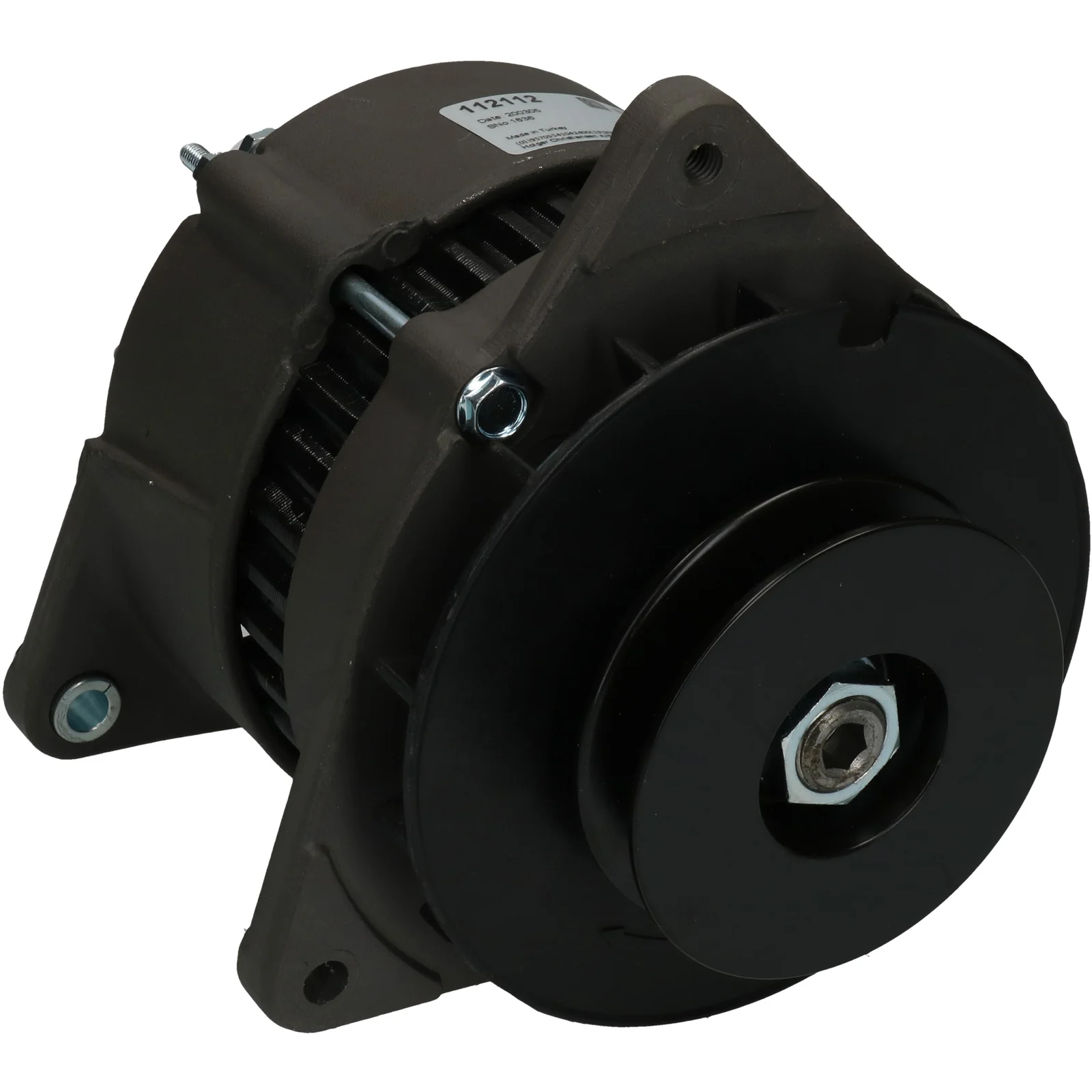

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW/CCW, Mount. bracket dist.: 82.50

Description

Voltage: 14
Amp: 70
Insulated return: Yes
Terminal: W
Pulley dist.: 45.00
Width/holder arm: 11.50
Mount. bracket dist.: 82.50
Bracket hole: 8.20
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 81.50
Grooves/pulley: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW/CCW
Plug no.: PL22
W plug type: M5-6.30
Total length mm: 170.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Sabre

Files

  • OEM
    aak3301, F032112112, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 11.201.332, 11.201.832, 510-810, 510-811, 510-812, 510-813, 510-822, 510-824, 510-825, 510-826, 510-842, 510-859, 714-16700, 714-40018, 2871A145, 2871a152, 2871a157, 2871a602, 40082, 2927440, 2928580, 2929580, 2929580A, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 836666738

  • Normalised article numbler
    aak3301, al5003n, alt23014, cal11113, f032112112, ia0332, ia0633, ia0832, lea0437, lra00807, lra01178, mg159, mg249, mg50, mg668, 8el737275001, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 2154noe, 2871a145, 2871a152, 2871a157, 2871a602, 5632, 12154, 12154noe, 12292, 12405, 13905, 0037120, 40082, 75844, 119497, 280533, 301201ri, 510810, 510811, 510812, 510813, 510822, 510823, 510824, 510825, 510826, 510842, 510859, 2927440, 2928580, 2929580, 2929580a, 11201332, 11201832, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 66021535, 66021587, 71416700, 71440018, 218116702, 519104702, 595033090, 705015065, 815030070, 836666738
  • Description
    Voltage: 14
    Amp: 70
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 45.00
    Width/holder arm: 11.50
    Mount. bracket dist.: 82.50
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 81.50
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW/CCW
    Plug no.: PL22
    W plug type: M5-6.30
    Total length mm: 170.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Sabre

    Files

  • Suitable for these vehicles

    • OEM
      aak3301, F032112112, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 11.201.332, 11.201.832, 510-810, 510-811, 510-812, 510-813, 510-822, 510-824, 510-825, 510-826, 510-842, 510-859, 714-16700, 714-40018, 2871A145, 2871a152, 2871a157, 2871a602, 40082, 2927440, 2928580, 2929580, 2929580A, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 836666738

    • Normalised article numbler
      aak3301, al5003n, alt23014, cal11113, f032112112, ia0332, ia0633, ia0832, lea0437, lra00807, lra01178, mg159, mg249, mg50, mg668, 8el737275001, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 2154noe, 2871a145, 2871a152, 2871a157, 2871a602, 5632, 12154, 12154noe, 12292, 12405, 13905, 0037120, 40082, 75844, 119497, 280533, 301201ri, 510810, 510811, 510812, 510813, 510822, 510823, 510824, 510825, 510826, 510842, 510859, 2927440, 2928580, 2929580, 2929580a, 11201332, 11201832, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 66021535, 66021587, 71416700, 71440018, 218116702, 519104702, 595033090, 705015065, 815030070, 836666738
