Article no.: F032112207

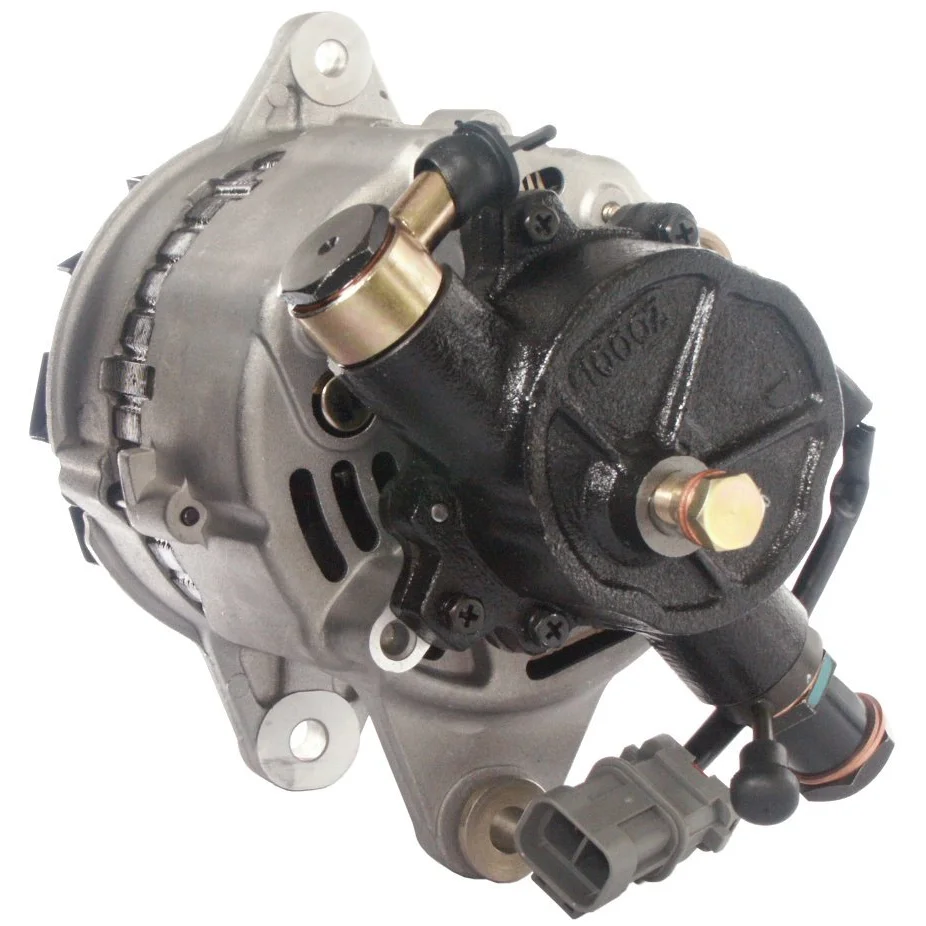

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distance: 80.00

Description

Voltage: 14
Amp: 70
Pulley diameter: 41.80
Width/holder arm: 13.00
Mounting bracket distance: 80.00
Bracket hole: 9.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 85.50
Grooves/pulley: 2
Radius: 88.50
Radius 2: 85.00
B+: M6
Position/B+ in minutes: 10
D+ size: Plug
Rotation: CW
Plug number: PL100
Total length mm: 250.50
Pulley: DP
Voltage regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Nissan

Files

  • OEM
    F032112207, ja1421ir, 23100-g9904, 9120334635

  • Normalised article numbler
    alt10224, dra3478, f032112207, ja1421ir, lra02693, 8el012426391, 8el737694001, 5787, 23100g9904, 23693, 111543, 210458, 210458a, 282581, 401421ri, 12060772, 20130161, 227197702, 0986045930, 9120334635
  • Description
    Voltage: 14
    Amp: 70
    Pulley diameter: 41.80
    Width/holder arm: 13.00
    Mounting bracket distance: 80.00
    Bracket hole: 9.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 85.50
    Grooves/pulley: 2
    Radius: 88.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in minutes: 10
    D+ size: Plug
    Rotation: CW
    Plug number: PL100
    Total length mm: 250.50
    Pulley: DP
    Voltage regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      F032112207, ja1421ir, 23100-g9904, 9120334635

    • Normalised article numbler
      alt10224, dra3478, f032112207, ja1421ir, lra02693, 8el012426391, 8el737694001, 5787, 23100g9904, 23693, 111543, 210458, 210458a, 282581, 401421ri, 12060772, 20130161, 227197702, 0986045930, 9120334635
