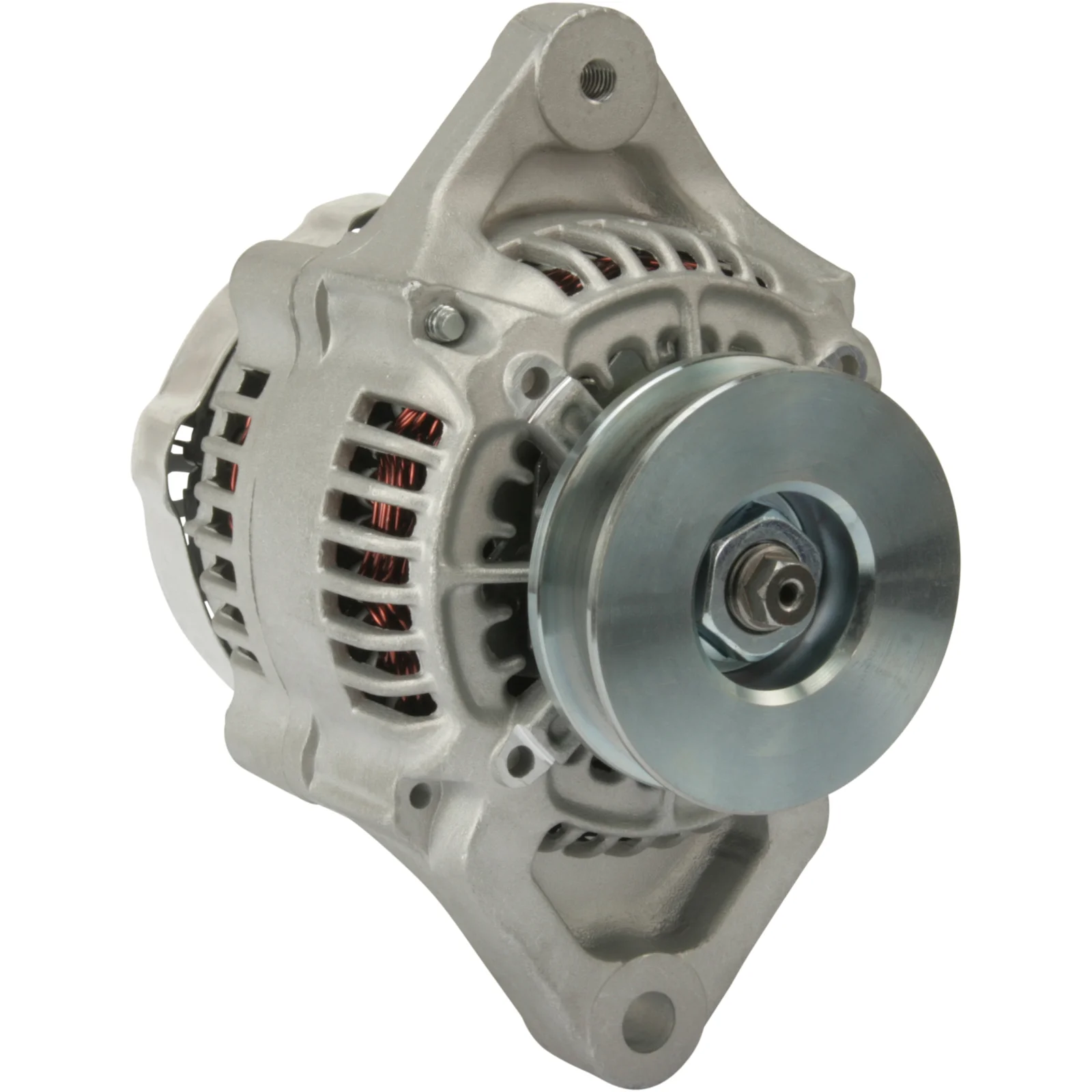

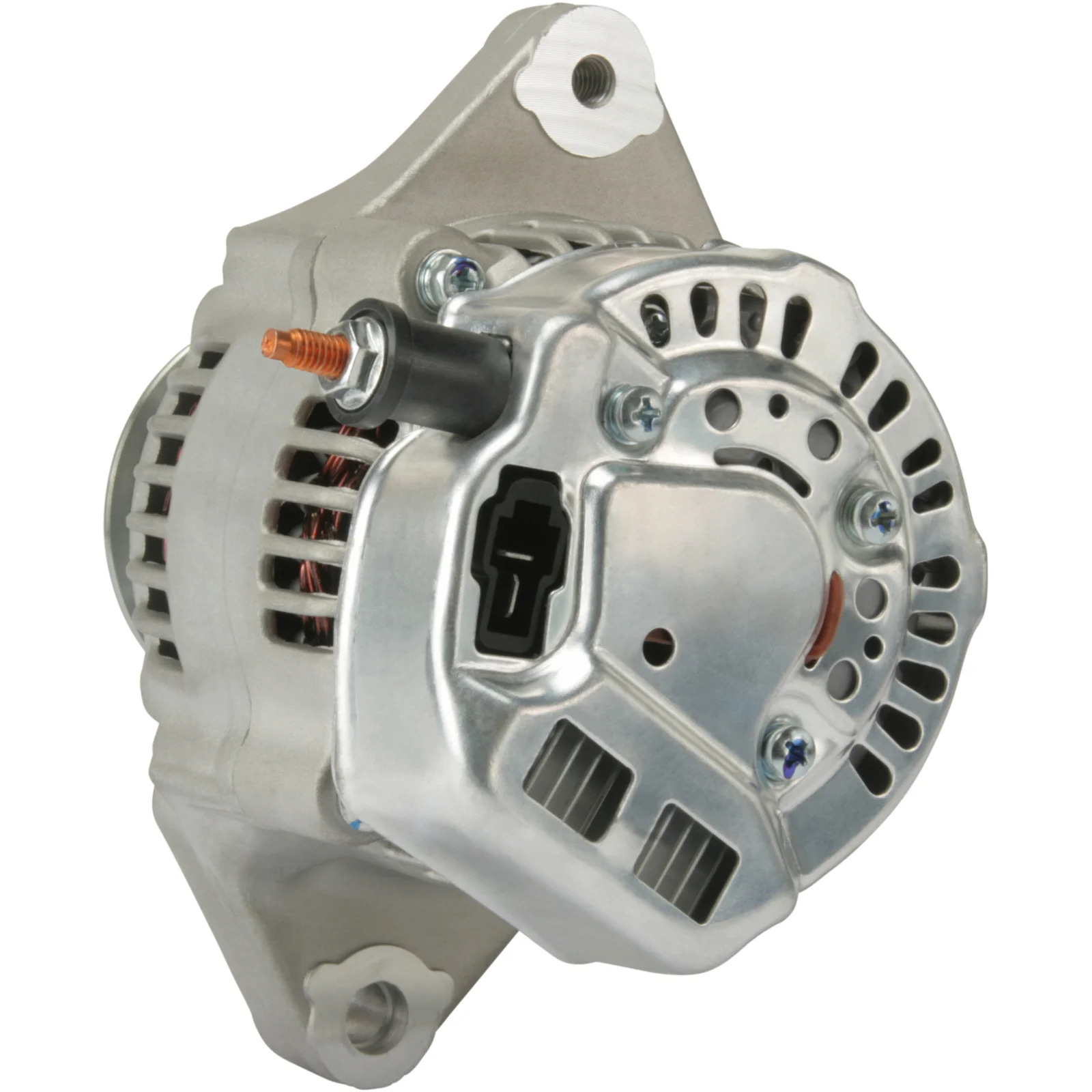

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112721

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley diameter: 70.50

Description

Voltage: 14
Amp: 55
Pulley dist.: 44.50
Width/holder arm: 23.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 70.50
Grooves/pulley: 1
Radius: 75.50
Radius 2: 78.50
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 143.00
Pulley: P
Voltage regulator type: IR
Prod. info: BN
Servicing: Kubota

Files

  • OEM
    F032112721, 101211-2850, 101211-8770, 101211-8771

  • Normalised article numbler
    and0350, cal40177, cal40575, dan2038, dra0316, f032112721, lra02198, 12534n, 12656, 12656n, 553861ri, 554172ri, 1012112850, 1012118770, 1012118771
  • Description
    Voltage: 14
    Amp: 55
    Pulley dist.: 44.50
    Width/holder arm: 23.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 70.50
    Grooves/pulley: 1
    Radius: 75.50
    Radius 2: 78.50
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 143.00
    Pulley: P
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Kubota

    Files

  • Suitable for these vehicles

    • OEM
      F032112721, 101211-2850, 101211-8770, 101211-8771

    • Normalised article numbler
      and0350, cal40177, cal40575, dan2038, dra0316, f032112721, lra02198, 12534n, 12656, 12656n, 553861ri, 554172ri, 1012112850, 1012118770, 1012118771
